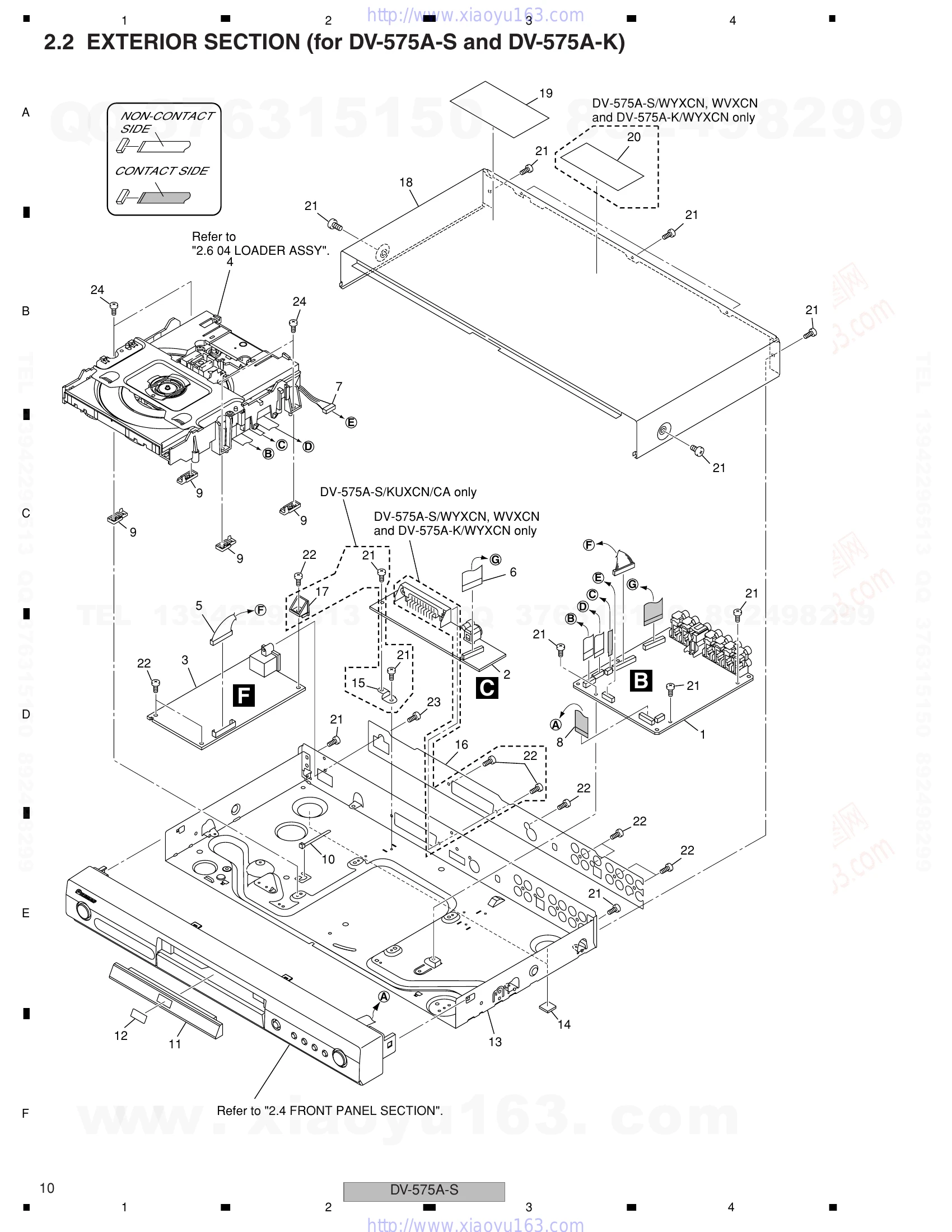

Manual for DV-575A-S

Manual for DV-575A-S

Brand: PIONEER

Category: DVD Player

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:30 p.m.

Manual Publish Date: 2004-04-01

Warranty Information

Refer to warranty card for warranty details.

Power On

Press the POWER button on the unit or use the remote control.

Disc Set

Open the tray using the OPEN/CLOSE button. Insert the disc and close the tray.

Test Mode: Play

Press the PLAY key on the remote control unit to start playback.

Test Mode: Off

Press the POWER button to turn off the unit, or use the ESC key on the remote control to reset it.

LD ON

For DVDs, press TEST (A8-5E) and 1 (A8-01) keys in order, then turn on the laser diode (650n). For CDs, press TEST (A8-5E) and 4 (A8-04) keys in order, then turn on the laser diode (780n).

Troubleshooting and error codes

No. Symptoms Diagnosis Contents Possible Defective Points
1 The power is not turned on. Check the voltage of EV4.0V, –28V, FLDC + and FLDC - on the POWER SUPPLY Unit.
Are wires of output connector (POWER SUPPLY Unit) and CN301 (DVDM Assy) disconnected or damaged ?
POWER SUPPLY Unit
Connector / cable
2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Check that the voltage at IC101-pin 22 (KEY0) on the FLKY Assy becomes 0 V when the POWER key is pressed and 3.3 V when it is released. FLKY Assy Tact SW (when operation of only the POWER key on the main unit is not accepted)
Check that the following voltage is output : IC341-pin 5 : 3.3V on the DVDM Assy DVDM Assy 3.3V Regulator IC (IC341)
Check that the voltage at IC101-pin 17 (SEL IR) on the FLKY Assy is in the range between 0 and 3.3 V while receiving signals from the remote control unit when any key on it is pressed. FLKY Assy Remote receiver section (when operation of only the POWER key on the remote control unit is not accepted)
Is the level at both IC101-pin 12 (RESETOUT) and pin 11 (POWER ON) on the FLKY Assy "H" ? FLKY Assy FL Control IC (IC101)
• Check the voltage of E+6.8V and SW3.3V on the POWER SUPPLY Unit.
• Check the voltage of Pcont is about 3V on the POWER SUPPLY Unit.
POWER SUPPLY Unit
Check that the following voltage are output : IC311-pin 5 : 5V on the DVDM Assy. DVDM Assy 5V Regulator IC (IC311)
Is a resonator (X201 : 27MHz) on the DVDM Assy oscillating ? DVDM Assy Crystal resonator (X201)
• Is a signal input into IC203-pin26 (PCE#) on the DVDM Assy ? (Is a signal "H" for 80 mS and then "L" after the power is turned on ?)→ Communication with flash ROM. DVDM Assy DVD IC (IC201) Flash ROM (IC203) SDRAM (IC202)
• Are the signals input into IC202-pin 16 (DWE#), pin 19 (DCS#) and pin 38 (SDCLK) on the DVDM Assy ?(Is a signal fluctuating ?)→ Communication with SDRAM DVDM Assy DVD IC (IC201) Flash ROM (IC203) SDRAM (IC202)
Is a signal output from IC203-pin 28 (PRD#) on the DVDM Assy? (Is a signal fluctuating for several hundred mS after the power is turned on ?) DVDM Assy Flash ROM (IC203)
Is a signal input into IC101-pin 16 (ACK) on the FLKY Assy ?(Is a signal fluctuating ?)→ Communication with FL Control IC DVDM Assy DVD IC (IC201) FLKY Assy FL Control IC (IC101)
Is a signal output from IC101-pin 10 (XREADY) on the FLKY Assy ? (Is a signal fluctuating in the range of 0-3V ?) FLKY Assy FL Control IC (IC101)
Are the signals output from IC101-pin 9, pin 8 and pin 7 on the FLKY Assy ?(in the range of 0-3V) DVDM Assy DVD IC (IC201) FLKY Assy FL Control IC (IC101) communication line
Are the signals of IC204-pin 5(SDA) and pin 6(SCL) on the DVDM Assy fluctuating for one or two seconds after the power is turned ? DVDM Assy EEPROM (IC204)
3 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Check the video signal path between DVD IC (DVDM Assy IC201) and video-out terminal (see the block diagram) DVDM Assy Video circuit after DVD IC (IC201)
