Brand: PIONEER
Category: Air Conditioner
Document Type: Installation Guide
Language: EN

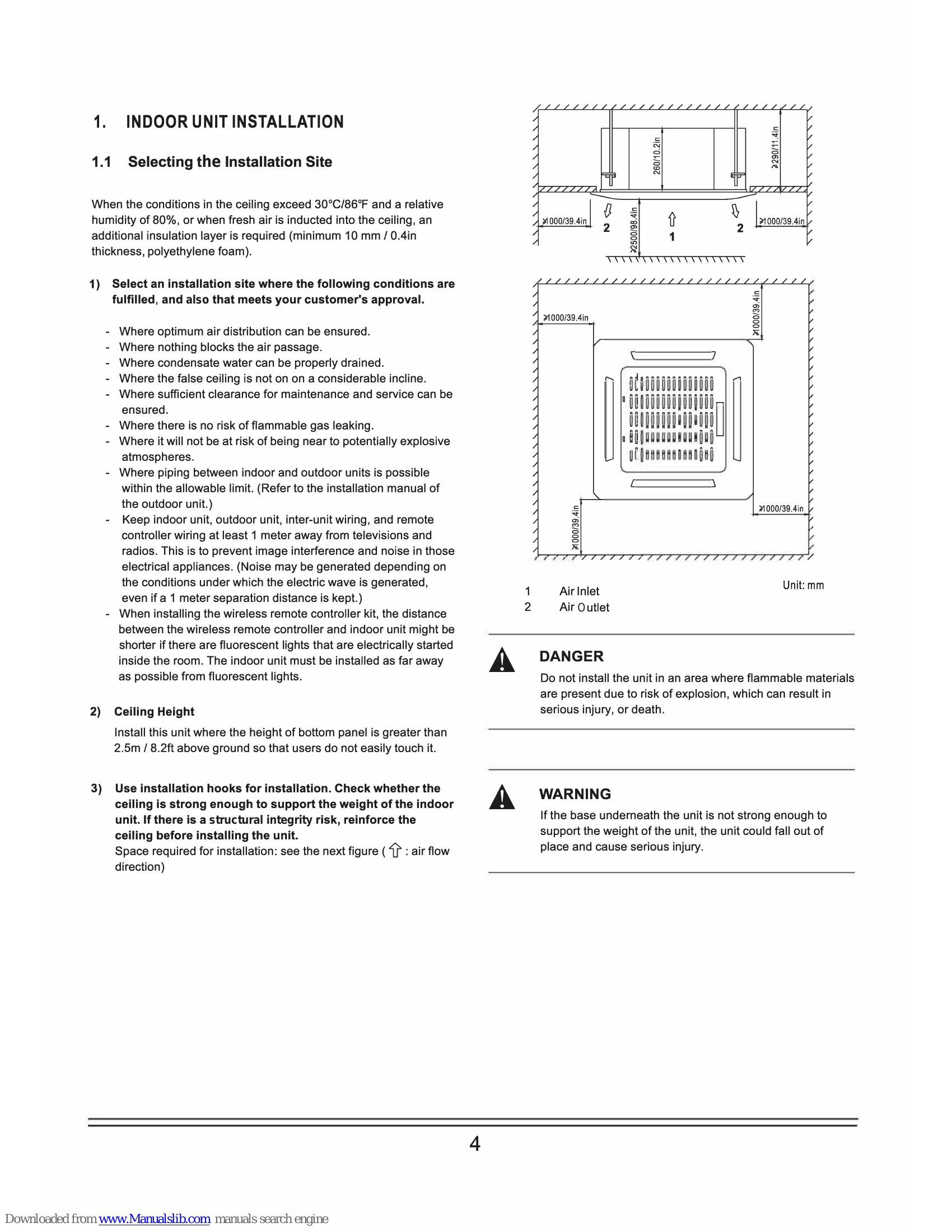

Installation Guide for CAB/CYB Series
Uploaded: Nov. 21, 2025, 8:56 p.m.
Manual Publish Date: 2014-07-01
Warranty Information
None
Indoor Unit Operation Check
- Remote controller function verification
- Air flow louver movement
- Room temperature adjustment
- Indicator light status
- Temporary button functionality
- Vibration and noise levels
- Drainage flow
Outdoor Unit Operation Check
- Vibration and noise levels
- Generated wind, noise, or condensed water
- Refrigerant leaks
Troubleshooting and error codes
| Item | Possible Cause | Remedy |
|---|---|---|
| The unit may drop, vibrate, or make noise. | Is the indoor unit fixed firmly? | Check and reinforce the fixing. |
| It may result in insufficient cooling or heating. | Is the gas leak test finished? | If leak is found, repair and recharge refrigerant. |
| Condensate water may drip. | Is the unit fully insulated? | Reinforce insulation. |
| Does drainage flow smoothly? | Check and clean the drain pipe. | |
| The unit may malfunction or components may burn out. | Does the power supply voltage correspond to that shown on the name plate? | Check and correct the power supply voltage. |
| Are wiring and piping correct? | Check wiring and piping connections. | |
| Dangerous if there is an electric leakage. | Is the unit safely grounded? | Connect the ground wire properly. |
| The unit may malfunction or components may burn out. | Is the wiring size according to specifications? | Use wiring of the specified size. |
| It may result in insufficient cooling or heating. | Is nothing blocking the air outlet or inlet of either the indoor or outdoor units? | Remove any obstruction. |
| The refrigerant charged in the system might not be clear. | Are refrigerant piping length and additional refrigerant charge noted down? | Record the length and charge accurately. |
