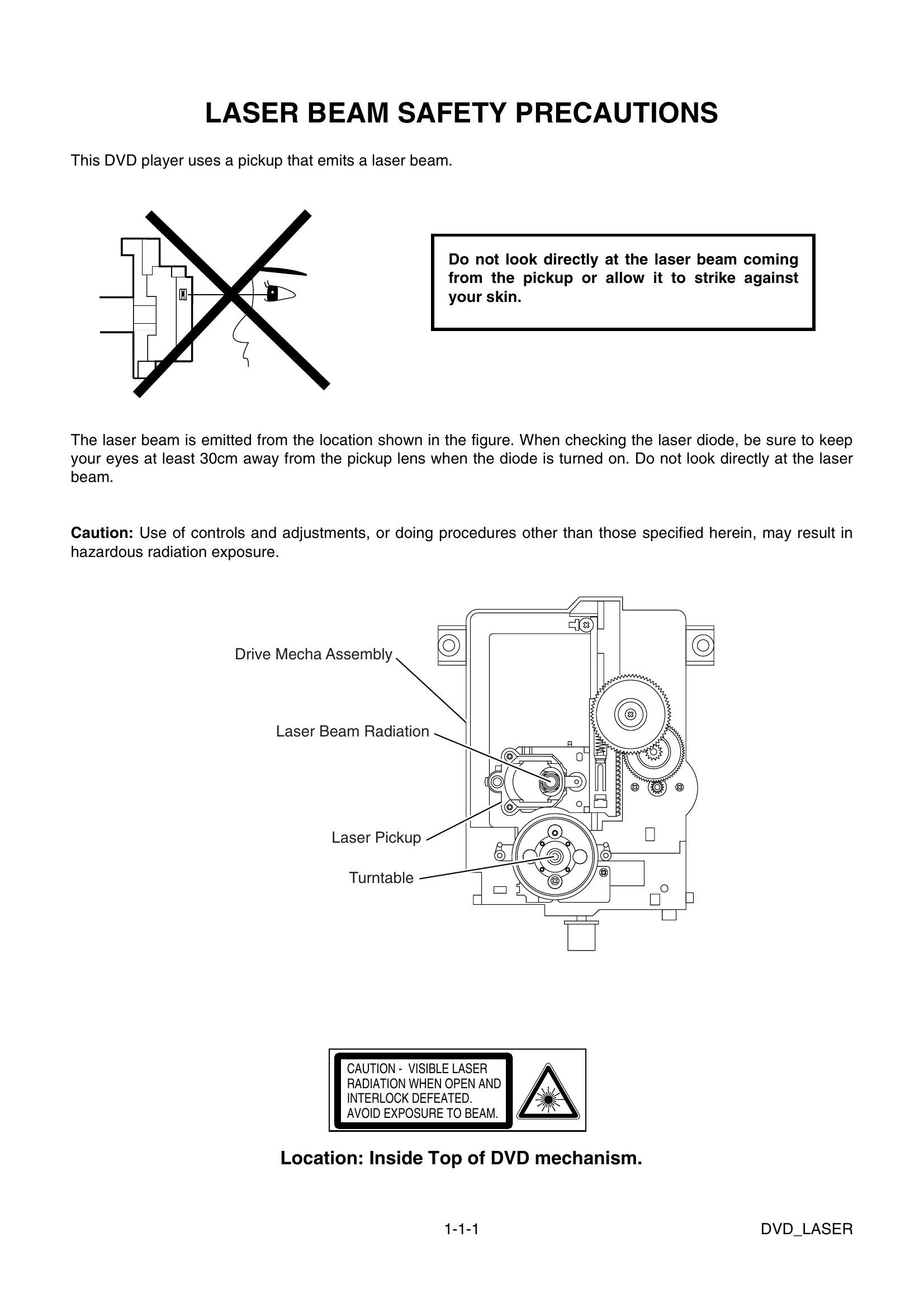

DVD-Video Player & Video Cassette Recorder

Front Panel Functions:

  • STANDBY-ON: Switches the player ON or OFF.
  • DISPLAY: Shows the current status.
  • Disc Tray: Insert disc here.
  • Remote Sensor: Receives signals from the remote.
  • Cassette Compartment: Insert tape here.
  • SOURCE (OUTPUT): Selects between DVD and VCR mode.
  • PREV / NEXT (DVD): Navigates chapters/tracks.
  • PLAY (DVD): Starts, pauses, or resumes disc playback.
  • STOP (DVD): Stops disc playback.
  • OPEN/CLOSE: Opens/closes the disc tray.
  • STOP/EJECT (VCR): Ejects the tape.
  • PLAY (VCR): Plays or pauses a tape.
  • REW/ ►► F.FWD (VCR): Rewinds or fast forwards tape.
  • AUDIO IN: Connects to audio output of an audio source.
  • VIDEO IN: Connects to video output of a video source.

Rear Panel Connections:

  • AERIAL: Connects to antenna or cable.
  • VCR (AV2 Decoder): Connects SCART cable from other devices.
  • DVD/VCR (AVI TV): Connects SCART cable to a TV.
  • MAINS (AC Power Cord): Connects to AC outlet.
  • OPTICAL (Digital audio out): Connects to digital audio equipment.
  • COAXIAL (Digital audio out): Connects to coaxial audio inputs.
  • RF OUT: Connects to TV antenna input.
  • AUDIO OUT (Left/Right): Connects to amplifier/receiver/stereo system.
  • S-VIDEO OUT: Connects to a TV with S-Video input.

Troubleshooting and error codes

Signal Name Function Signal Name Function
8POUT-1 SCART 1 8Pin Output Control Signal C-ROTA Color Phase Rotary Changeover Signal
8POUT-2 SCART 2 8Pin Output Control Signal C-SYNC Composite Synchronized Pulse
A-COM Audio Head Common CAS LED "CASSETTE" LED Signal Output
A-MODE Hi-Fi Tape Detection Signal CLKSEL Clock Select (GND)
A-MUTE-H Audio Mute Control Signal (Mute = "H") CTL (+) Playback/Record Control Signal(+)
A-IN(L)-F Audio Signal Input (L) CTL (-) Playback/Record Control Signal (-)
A-IN(R)-F Audio Signal Input (R) CTLAMPout To Monitor for CTL AMP Output
A-OUT(L)-F Audio Signal Output (L) D-CONT Drum Motor Control Signal
A-OUT(R)-F Audio Signal Output (R) D-FG Drum Motor Rotation Detection Pulse
A-PB/REC Normal Audio Play Back/Record Signal D-PG Drum Motor Pulse Generator
AE-H Audio Erase Head D-REC-H Delayed Record Signal
AFC Automatic Frequency Control Signal D-V-SYNC Dummy V-sync Output
AGC IF AGC Control Signal DAVN-L VPS/PDC Data Receive = "L"
AL+15V/+12V Always +15V/+12V with AC Plug Connected DRV-CLK LED Clock Driver IC Control Clock
AL+5V Always +5V with AC Plug Connected DRV-DATA LED Clock Driver IC Control Data
AL+9V Always +9V with AC Plug Connected DRV-STB LED Clock Driver IC Chip Select Signal
AL+12V Always +12V with AC Plug Connected DVD LED "DVD" LED Signal Output
AL-30V Always -30V with AC Plug Connected DVD-8PIN-IN SCART 8Pin DVD Input Control Signal
AMPC CTL AMP Connected Terminal DVD-P-ON+3.3V +3.3V at DVD Power-On Signal
AMPVcc AMPVcc DVD-P-ON+5V +5V at DVD Power-On Signal
AMPVREFIN V-Ref for CTL AMP DVD-P-ON+12V +12V at DVD Power-On Signal
AMPVss AMPVss (GND) DVD-POWER DVD Power Control Signal
AVcc A/D Converter Power Input/ Standard Voltage Input DVD-POWER-MONITOR DVD Power Monitor Signal (P-off="H", P-on="L")
C C Terminal DVD-B-OUT DVD Component Video Signal (blue)
C-CONT Capstan Motor Control Signal DVD-G-OUT DVD Component Video Signal (green)
C-F/R Capstan Motor FWD/REV Control Signal (FWD="L"/REV="H") DVD-R-OUT DVD Component Video Signal (red)
C-FG Capstan Motor Rotation Detection Pulse END-S Tape End Position Detect Signal
C-POWER-SW Capstan Power Switching Pulse FE-H GND Ground for Full Erase Head
FF/REW-L CTL Amp Gain Switching Signal (FF/REW="L")
FSC-IN [4.43MHz] 4.43MHz Clock Input
