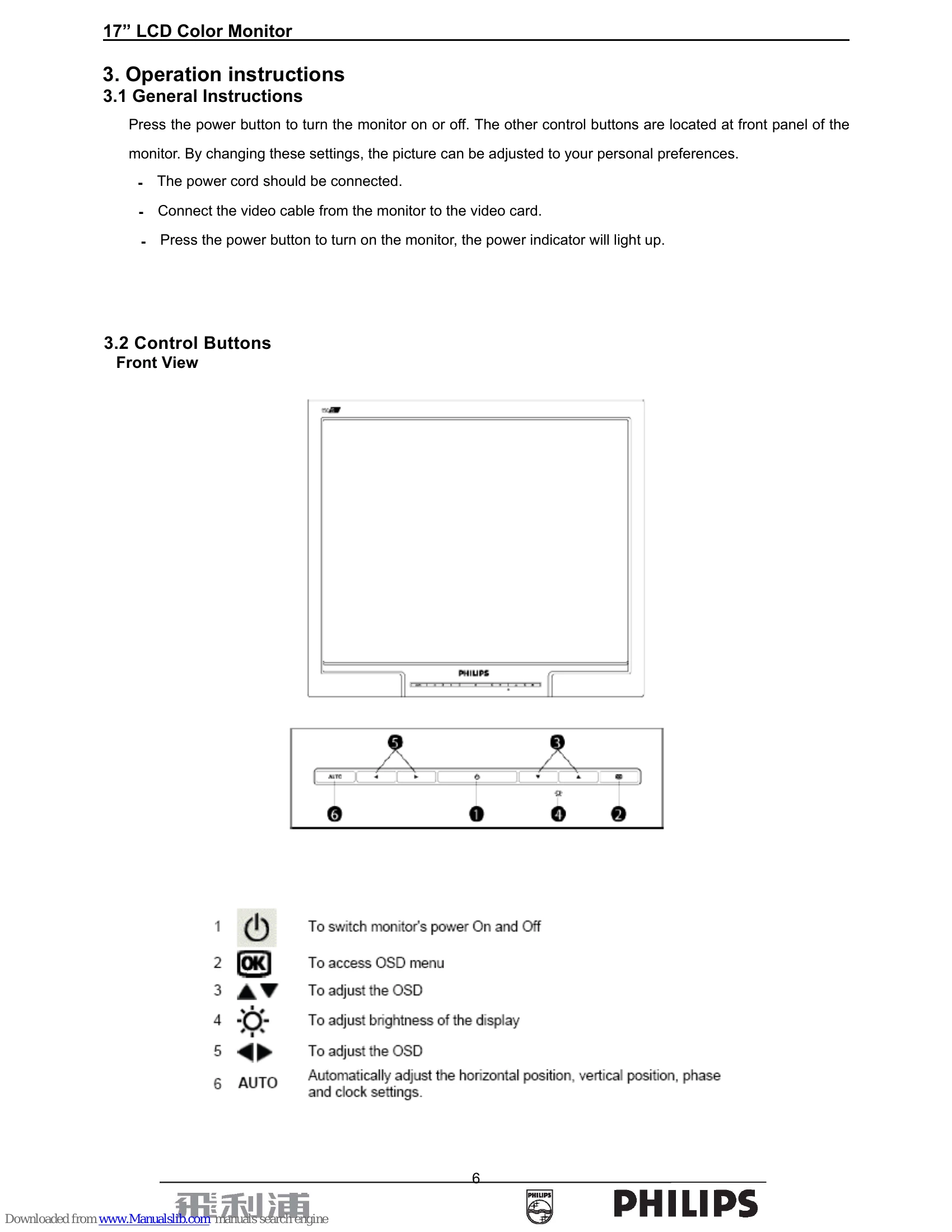

To turn the monitor on or off, press the power button. Other control buttons are located on the front panel for adjusting picture settings to personal preferences.
Ensure the power cord is connected and the video cable is connected from the monitor to the video card. Pressing the power button will light up the power indicator.
The On-Screen Display (OSD) main controls window appears when the OK button is pressed. Use the arrow keys to adjust various features like Brightness & Contrast, Color, Position, and More Settings. The 'AUTO' button automatically adjusts horizontal position, vertical position, phase, and clock settings.
Connections include a VGA input and AC power input on the back of the monitor.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No picture | No power | Check power cord and outlet. Press power button. |
| Signal cable not connected | Ensure signal cable is properly connected to both monitor and PC. | |
| Incorrect input signal | Select the correct input signal via OSD settings. | |
| Picture is distorted/unstable | Incorrect resolution or refresh rate | Adjust resolution and refresh rate in PC display settings to match monitor's recommended settings. |
| Signal cable issue | Try a different signal cable. | |
| Colors are incorrect | Color settings incorrect | Adjust color settings via OSD. Reset to factory defaults if necessary. |
| Monitor does not turn on | Power issue | Check power cord and outlet. Verify power supply. |
