Brand: PHILIPS
Category: Audio
Document Type: Manual
Language: EN
Manual for CID3682
Uploaded: Nov. 21, 2025, 7:32 p.m.
Manual Publish Date: 2010-01-01
Warranty Information
The manual does not explicitly state a warranty period but covers installation, operation, and troubleshooting for the CID3682.
This manual guides users through the operation of the PHILIPS CID3682 car audio system. Key functions include:

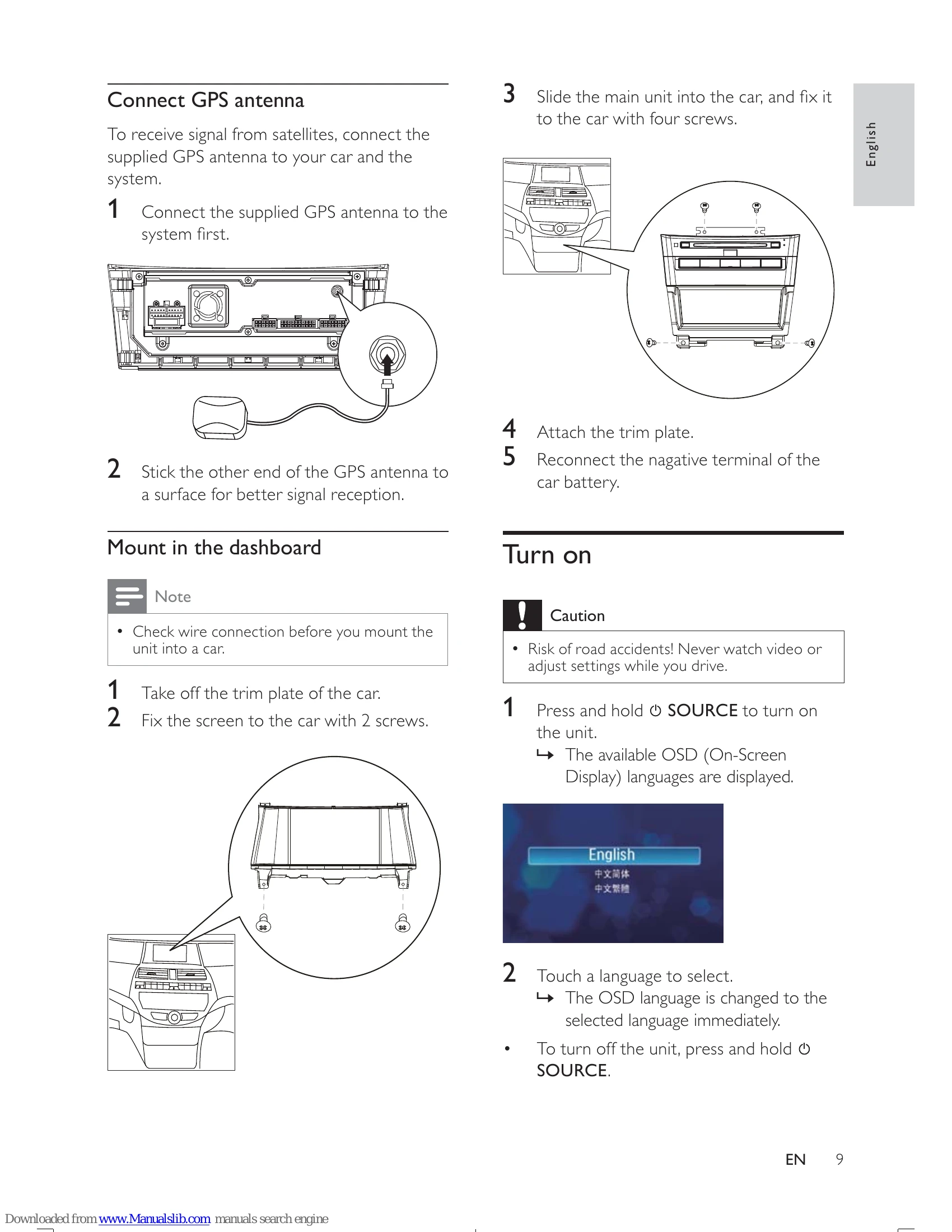

- Getting Started: Installation, turning the unit on/off, and setting the date and clock.
- Using the Navigation System: Upgrading maps and accessing navigation features.
- Playing Media: Loading discs (DVD, CD), connecting USB and SD/MMC cards, and playing audio, video, and picture files. Features include play/pause, search, repeat, random play, and selecting audio/subtitle languages.
- Bluetooth Connectivity: Pairing devices, making/receiving calls, and listening to music wirelessly. Settings for auto-connect, auto-answer, and phone book sync can be adjusted.
- Adjusting Settings: Customizing sound (volume, EQ, DBB), display, and general system preferences.
- Troubleshooting: Guidance on common issues like no power, no sound, disc playback problems, and image distortions.
- Glossary: Definitions of technical terms.
Users can also set slide show durations and rotate/zoom pictures.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
| No power | Car engine has not been started. | Start the car engine. |
| Connections is incorrect. | Check connections. | |
| Fuse has been damaged. | Replace fuse. | |
| No sound | Volume is too low. | Adjust volume. |
| Speaker connections is incorrect. | Check speaker connections. | |
| Disc does not play | Disc is upside down. | Ensure the printed side is upwards. |
| Disc is dirty. | Clean the disc with a clean, soft, lint-free cloth. Wipe outwards from the center. | |
| Disc is defective. | Try another disc. | |
| Incompatible disc is used. | Try another disc. | |
| Disc rating exceeds the restrict setting. | Change the rating settings to lower one. | |
| Disc region code is not compatible with the unit. | Use disc with proper region code. | |
| No image | Parking brake wire connection is incorrect. | Check the parking wiring. |
| Image flashes or distorted | Video DVD settings do not match with the DVD. | Adjust video DVD settings. |
| Video connection is improper. | Check the connections. | |
| Preset stations lost. | Battery cable is not correctly connected. | Connect the battery cable to the terminal that is always live. |
| Fuse is broken | The fuse type is incorrect. | Replace it with a 5A fuse. |
| Speaker wire or power wire is grounded. | Check the connections. | |
| Display show ERR-12 | USB/SD/MMC data error. | Check the USB device or SD/MMC card. |
| The paired mobile phone connects and disconnects constantly. | The Bluetooth reception is poor. | Move the mobile phone closer to the system or remove any obstacle between the mobile phone and the system. |
| Some mobile phones may connect and disconnect constantly when you make or end calls. | This does not indicate any malfunction of the system. | |
| Bluetooth connection may be deactivated automatically as a power-saving feature. | This does not indicate any malfunction of the system. | |
| Music playback is unavailable on the system even after successful Bluetooth connection. | The device cannot be used with the system to play music. | N/A |
| The audio quality is poor after connection with a Bluetooth-enabled device. | The Bluetooth reception is poor. | Move the device closer to the system or remove any obstacle between the device and the system. |
| Cannot connect with the system. | The device does not support the profiles required for the system. | N/A |
| The Bluetooth function of the device is not enabled. | Refer to the user manual of the device for how to enable the function. | |
| The system is not in the pairing mode. | N/A | |
| The system is already connected with another Bluetooth-enabled device. | Disconnect that device or all other connected devices and then try again. |
