ASAHI PENTAX KX SERVICE MANUAL

This manual details exclusive adjustments for the ASAHI PENTAX KX camera. Key sections include:

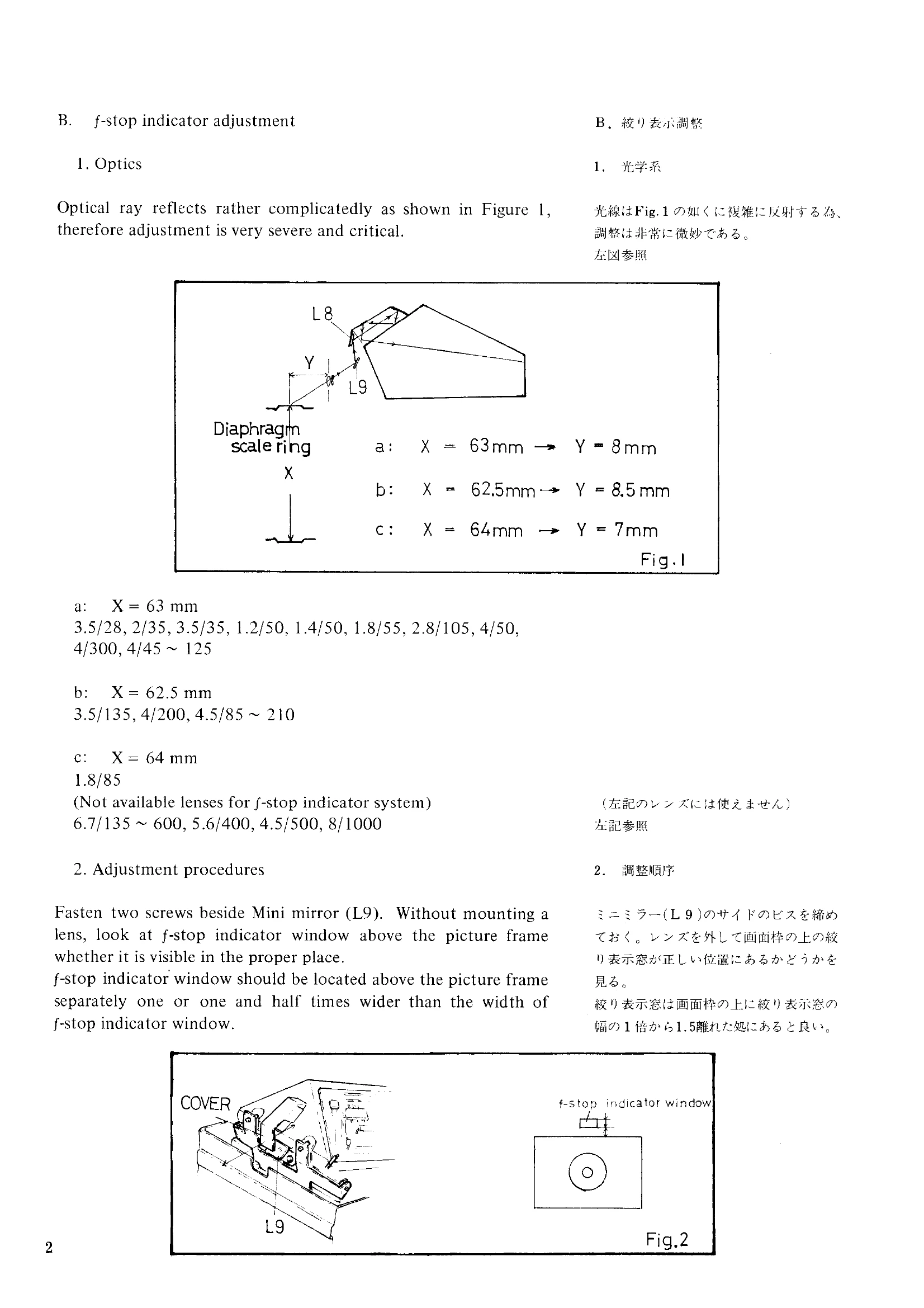

  • B. f-stop indicator adjustment: Covers optical ray paths and adjustment procedures for the f-stop indicator, ensuring visibility in the correct position.
  • C. Blue needle adjustment: Guides the adjustment of the blue needle on the viewfinder to correspond correctly with shutter speeds (B, 1000, etc.) using eccentric rivets.
  • D. Main SW adjustment: Explains how to set the correct clearance between the eccentric rivet and the main SW lever when the wind lever is in the closed position.
  • E. Light metering adjustment: Details the conditions and testers required for light metering adjustments.
  • F. Galvanometer installation: Specifies how to install the galvanometer with the black needle positioned horizontally.

Additional notes cover lubricant application on the mount surface and the use of Fleon TF for cleaning plastic parts.
