Manual for ES II
Uploaded: Aug. 9, 2025, 11:47 p.m.
Warranty Information
None

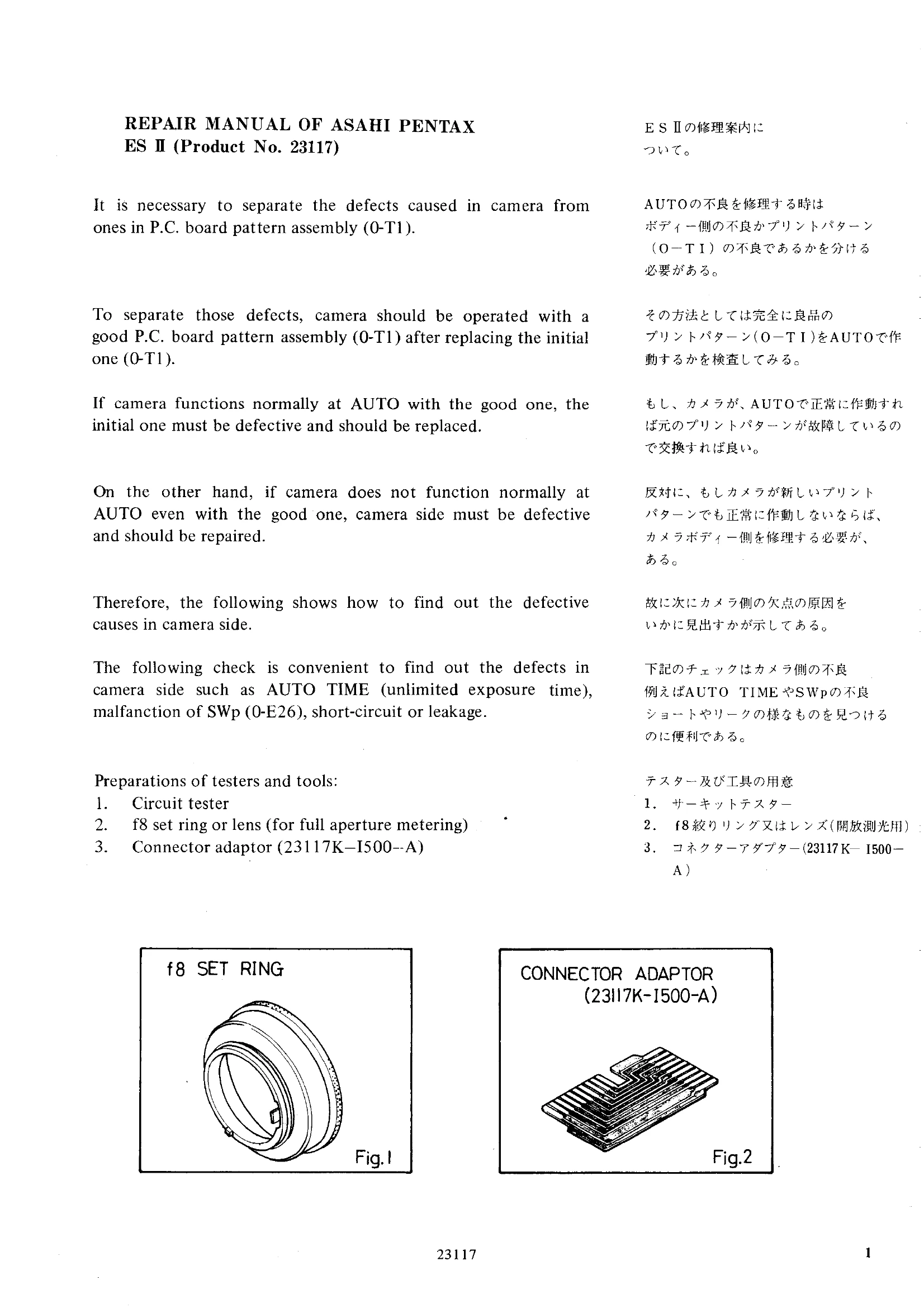

The manual provides instructions on how to repair the ASAHI PENTAX ESII camera. It details procedures for diagnosing and fixing defects related to the AUTO mode, exposure time, and light meter. Key steps include checking the Printed Circuit (P.C.) board pattern assembly, using a circuit tester with a connector adaptor to check terminals, and referring to a table of expected results for normal operation. Specific repair instructions are given for issues like "Auto exposure error" and "Light meter indication error", outlining potential causes such as power source issues, magnet malfunction, poor contact, short circuits, or reversed wiring.
Troubleshooting and error codes
| TERMINAL | RESULTS |
|---|---|
| A~E | 0 |
| F | 0 (Depressing release button) |
| G~H | 0 |
| I | 0 |
| J~K | ∞ |
| L | 0 |
| M | ∞ |
| N | Needle moves (Depending on brightness) |
| O | 8 |
| P | 12.6 ΚΩ |
| Q | 00 |
| R | 0 |
| S | Needle moves |
| T | 92 ΚΩ |
