Installation Guide for Sarix Enhanced 4 and 4P Dome
Uploaded: Nov. 21, 2025, 8:56 p.m.
Manual Publish Date: 2024-08-08
Warranty Information
Pelco warranty terms are available at pelco.com/warranty; contact support for service.

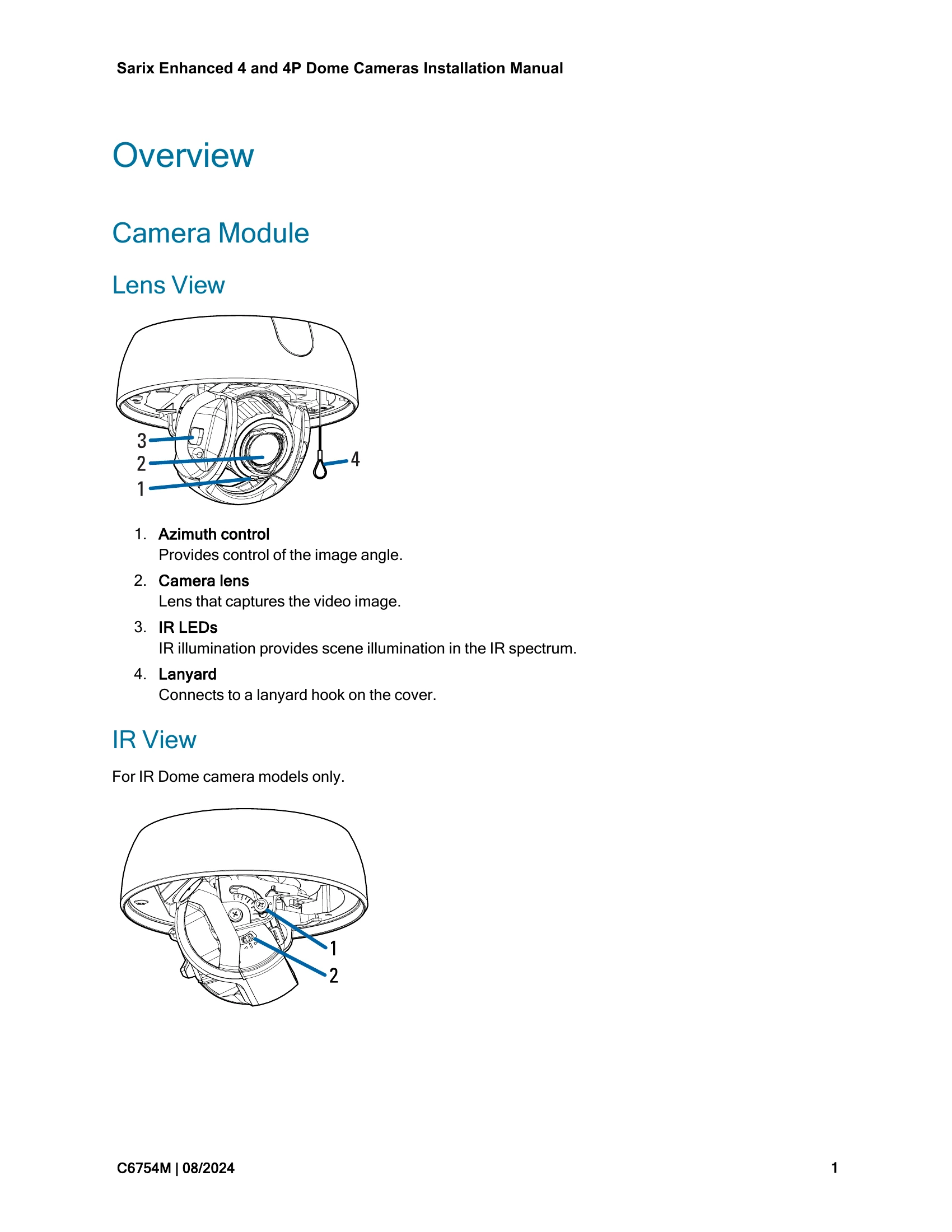

Overview
The Sarix Enhanced 4 and 4P Dome cameras are high-performance surveillance devices. Key components include the camera module with lens, IR LEDs for illumination, and various connection ports (USB-C, I/O, Power, microSD). The cameras support multiple mounting options: surface, in-ceiling, pendant, and wall arm.
Installation
Installation involves selecting a mount, preparing the site, running cables through grommets, securing the camera, and connecting power and network. Initial configuration can be done via an RJ45 port on the packaging before full installation.
Configuration
Post-installation, cameras are configured via a web interface or software. This includes setting up network details, aiming the lens, focusing, and optional features like microphone and microSD storage. The manual details LED indicators for connection status and troubleshooting steps.
The Sarix Enhanced 4 and 4P Dome cameras are high-performance surveillance devices. Key components include the camera module with lens, IR LEDs for illumination, and various connection ports (USB-C, I/O, Power, microSD). The cameras support multiple mounting options: surface, in-ceiling, pendant, and wall arm.
Installation
Installation involves selecting a mount, preparing the site, running cables through grommets, securing the camera, and connecting power and network. Initial configuration can be done via an RJ45 port on the packaging before full installation.
Configuration
Post-installation, cameras are configured via a web interface or software. This includes setting up network details, aiming the lens, focusing, and optional features like microphone and microSD storage. The manual details LED indicators for connection status and troubleshooting steps.
Troubleshooting and error codes
| LED Behavior | Suggested Solution |
|---|---|
| Green LED is off and amber is on | Perform a factory reset of the camera using the physical firmware revert button. Resetting through the camera's web interface will not produce the desired result. |
| Both LEDs are off and the camera is not connected or streaming video | Check the GENERAL setup page in the camera's web interface to ensure the LEDs are not disabled. If the LEDs are not disabled, perform a factory reset of the camera using the physical firmware revert button. Resetting through the camera's web interface will not produce the desired result. |
| Both LEDs are blinking several times at the same time, then pause and repeat the blinking | Perform a factory reset of the camera using the physical firmware revert button. Resetting through the camera's web interface will not produce the desired result. |
| A different LED blinking pattern than those described above | Perform a factory reset of the camera using the physical firmware revert button. Resetting through the camera's web interface will not produce the desired result. |
