Manual for PNTS 1300 B2

Manual for PNTS 1300 B2

Brand: PARKSIDE

Category: Home Appliances

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:16 p.m.

Manual Publish Date: 2011-11-16

Warranty Information

This unit has a guarantee period of 36 months, excluding normal wear and tear, overloading, or improper use.

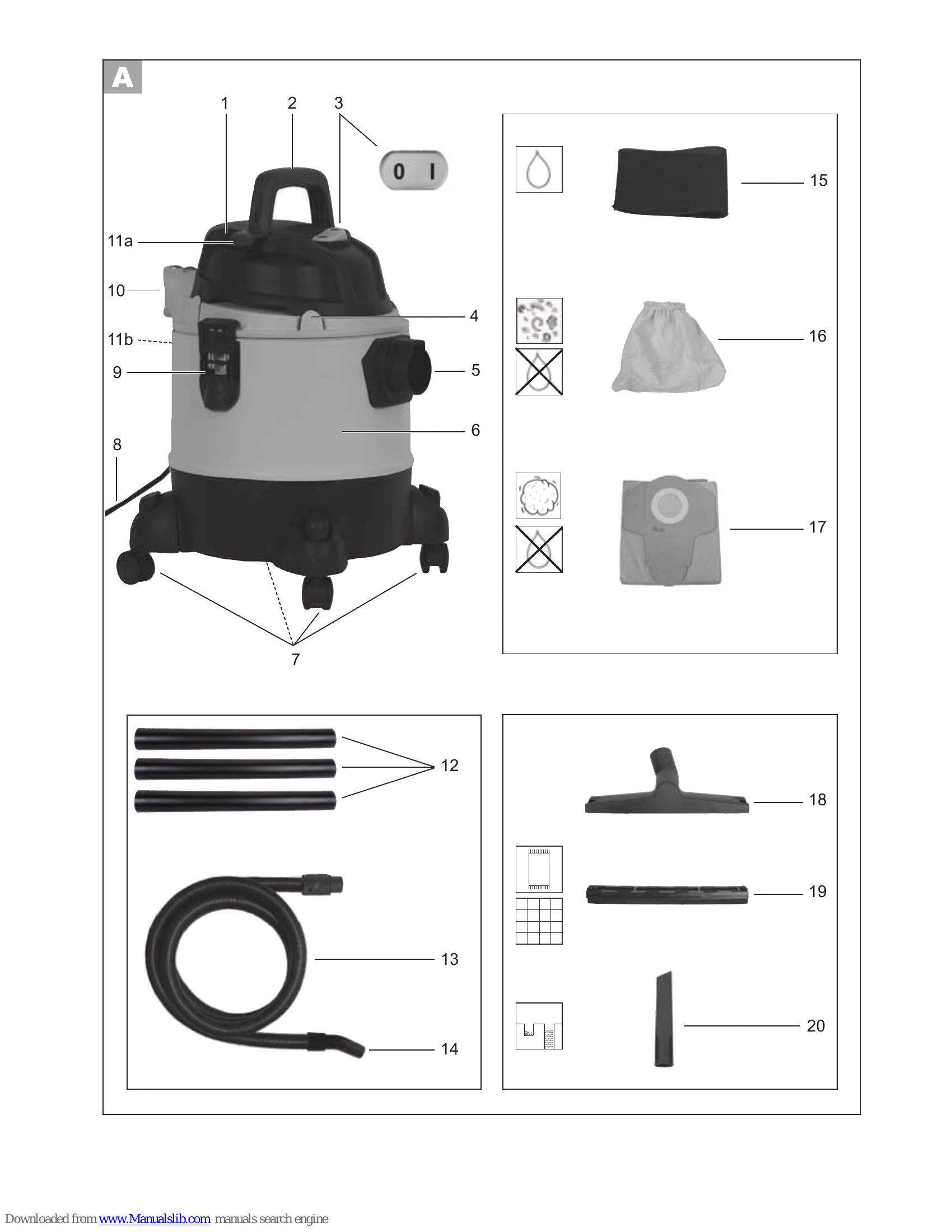

The wet and dry vacuum cleaner is designed for domestic use. It features a robust plastic container for waste collection and castors for easy maneuverability. A float mechanism stops suction during wet vacuuming when the tank is full. It also has a blower function. The device is switched on and off using the On/Off switch (A 3). For wet vacuuming, attach the foam filter (15). For dry vacuuming, use the material filter (16) or the paper filter bag (17). The blowing function is activated by connecting the suction hose (13) to the blower connection (10). Cleaning and maintenance should be done after unplugging the device. Storage involves winding the cable and storing the appliance in a dry place.

Troubleshooting and error codes

Problem Possible cause Fault correction
Device does not start Mains voltage is not present Check plug socket, cable, line, plug and fuse, where appropriate, repair through electrical specialist
Defective on/off switch (A 3) Repair through customer service
Worn carbon brushes Repair through customer service
Defective motor Repair through customer service
Low or lack of suction Hose system (A 13/14) or jets (A 18/19) blocked Remove obstructions and blockages
Suction pipe (A 12) assembled incorrectly Assemble suction pipe correctly
Container (A 6) open Close container
Container (A 6) full Empty container
Filter (A 15/16/17) full or clogged Empty, clean or replace filter
Ball on filter basket (D 24) incorrectly positioned (e.g. due to jerky movements) Switch off the equipment so the ball drops then switch on again
