Brand: Panasonic
Category: Video Camera
Document Type: Manual
Language: EN

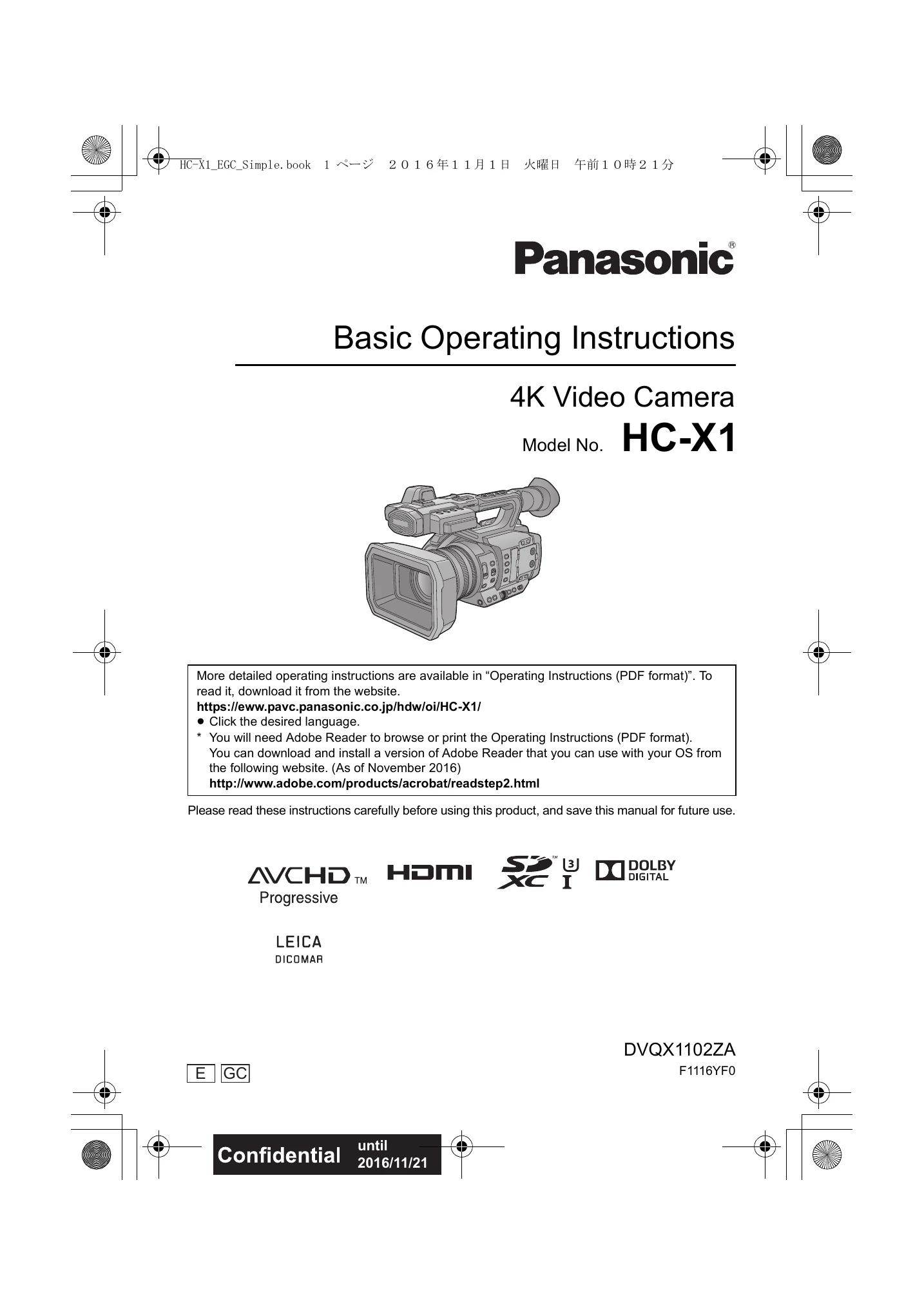

Manual for HC-X1
Uploaded: Aug. 10, 2025, 12:40 a.m.
Manual Publish Date: 2016-11-01
Warranty Information
This product comes with a 12-month warranty from the date of purchase.
- Charging the Battery: Connect the AC adaptor to the battery charger and the battery. The CHARGE indicators will show the charging status.
- Inserting/Removing the Battery: Slide the battery into the unit until it clicks. Press the release button to remove.
- Connecting to AC Outlet: Connect the AC adaptor to the unit and an outlet to power the device.
- Using the LCD Monitor/Viewfinder: Adjust the screen or viewfinder for optimal viewing.
- Recording: Select a media to record, set recording mode, and use zoom and focus controls.
- Playback: Play back recorded scenes and still pictures.
- Menu Operations: Navigate the menu to adjust settings such as scene files, system modes, and audio setups.
Troubleshooting and error codes
| The lens, the viewfinder or LCD monitor fog up. | This is due to condensation. This is not a malfunction. Please refer to page 8. |
| Object seems to be warped. | Object seems to be warped slightly when the object moves across the image very fast, but this is because the unit is using MOS for the image sensor. This is not a malfunction. |
| This unit cannot be turned on. | Charge the battery again to ensure it is sufficiently charged. (→ 19) |
| This unit does not stay on long enough. Battery runs down quickly. | In cold places, the battery using time becomes shorter. The battery has a limited life. If the operating time is still too short even after the battery is fully charged, the battery has worn out and needs to be replaced. |
| This unit cannot be operated though it is turned on. | Remove the battery or AC adaptor, wait about 1 minute and then reconnect the battery or AC adaptor. Then about 1 minute later, turn on the unit again. (Conducting the above operation while the SD card is being accessed may damage the data on the media.) |
| This unit does not operate normally. | If normal operation is still not restored, detach the power connected, and consult the dealer who you purchased this unit from. |
| The unit arbitrarily stops recording. | Use an SD card that can be used for motion picture recording. (→ 23) The recordable time may have shortened due to the deterioration of the data writing speed or repeated recording and deletion. Using the unit, format the SD card. (→ 29) |
| Color or brightness of the image changes, or you may see horizontal bars in the image. | Color or brightness of the image may change, or you may see horizontal bars in the image when the object is recorded under fluorescent light, mercury light or sodium light, etc., but this is not a malfunction. • Change settings as follows: Set this unit to Auto Shutter Mode. Adjust the shutter speed to 1/50, 1/60 or 1/100. • Adjust the Synchro Scan shutter speed. |
| The LCD monitor flickers indoors. | (No check points provided for this issue in the extracted text) |
| Scenes/still pictures cannot be played back. | Any scenes/still pictures where the thumbnails are displayed as ! cannot be played back. • In most cases, ! is displayed for the following scenes: – Scenes recorded with another device or edited with editing software – Scenes with damaged data • The thumbnails of scenes with a different system frequency are indicated with . You can play them back by changing the [SYSTEM FREQ] setting. (→ 29) |
