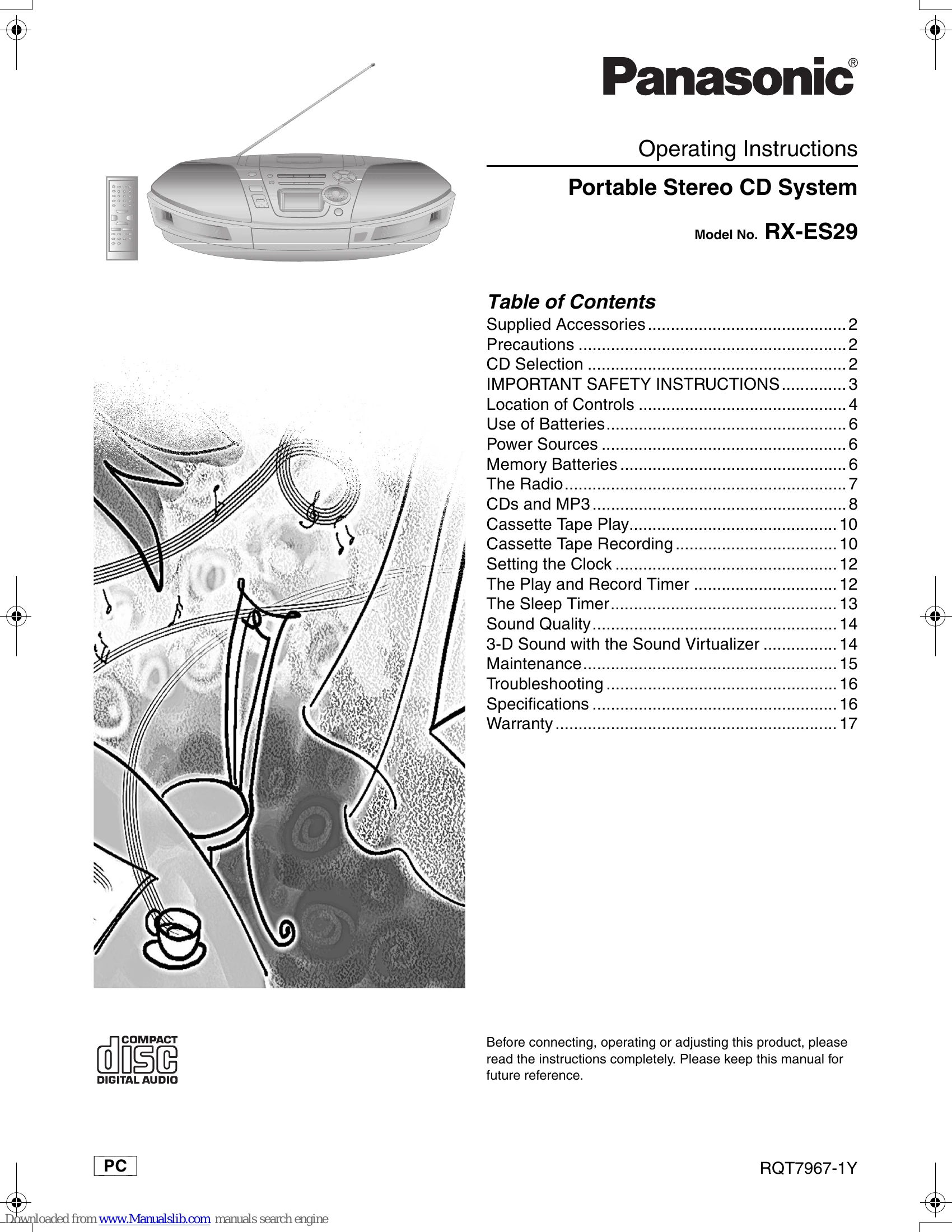

Manual for RX-ES29
Uploaded: Nov. 21, 2025, 7:36 p.m.
Warranty Information
This Panasonic product comes with a one-year limited warranty covering parts and labor.
Main Unit Controls:
- Deck: Open/close cassette deck.
- Record/Play Buttons: Control cassette recording and playback.
- Tuning Buttons: Select radio stations or CD tracks.
- CD Play/Pause: Start, pause, or stop CD playback.
- Volume Control: Adjust the sound level.
- Provides access to all functions from a distance.
- Numeric Buttons: Direct track selection for CDs.
- Mode Buttons: Select CD, Radio, or Tape modes.
- Timer Buttons: Set play and record timers, and sleep timer.
- Radio: Press [TUNER BAND] to select FM/AM, then use tuning buttons. Preset tuning is available.
- CD: Press [▲ CD] to open tray, load CD, then press [CD/II] to play. Use [PLAY MODE] for repeat or random play.
- Cassette: Press [▲ DECK] to open, load cassette, then press [TAPE] to play. Recording is also possible.
- Sound Quality: Select EQ modes (Heavy, Clear, Soft, Vocal).
- 3-D Sound: Activate Sound Virtualizer for immersive audio.
- Timers: Set the Play Timer, Record Timer, and Sleep Timer.
- Clock: Set and display the 12-hour clock.
Troubleshooting and error codes
| Common problems | Reference pages | |
|---|---|---|
| "E" is displayed. | Indicates incorrect operation. Read the instructions. | |
| "U01" is displayed. | Replace the batteries or use household AC power. | (→ 6) |
| "U02" is displayed. | Power batteries have not been inserted. Insert them or use household AC power. | (→ 6) |
| CD will not play or CD display is incorrect. | Place the CD with label facing up. | (→ 8) |
| Wait for 1 hour for condensation to dry and try again. | ||
| Clean the CD. | (→ 2) | |
| Replace the CD if it is scratched, warped, or nonstandard. | ||
| Certain sections are not played properly. | ||
| Cassette deck | ||
| Recording is not possible. | If the cassette's tabs have removed, cover the holes with adhesive tape. | (→ 10) |
| Poor sound quality. | Clean the heads. | (→ 15) |
| Radio | ||
| A lot of noise or tuning difficulty. | Interference may be caused by other equipment or the use of its remote control. Turn the other equipment off or keep this unit away from them. | |
| Remote Control | ||
| The remote control does not work. | Check to ensure the batteries are inserted correctly. | (→ 4) |
| Replace the batteries if they are worn. | (→ 4) | |
| The unit cannot be turned on from the remote control. | Turn the unit on from the main unit if you are using batteries to power the unit. | (→ 4, 6) |
