Manual for NV-M10
Uploaded: Nov. 21, 2025, 7:48 p.m.

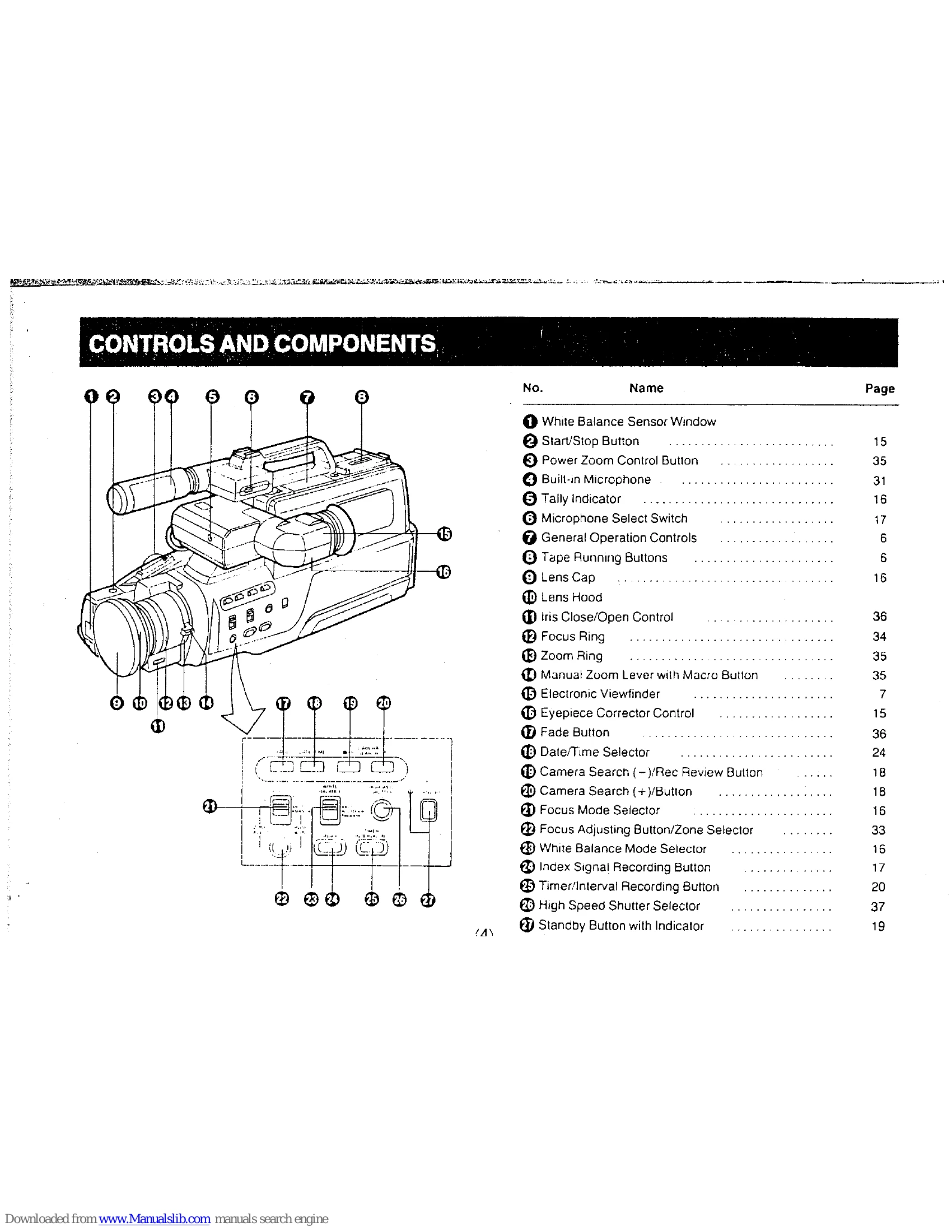

- Controls and Components: Familiarize yourself with the various buttons and indicators on the camera and accessories.
- Power Supply Units: Learn how to insert and remove the battery pack, and connect the AC adaptor or car battery cord.
- Video Cassette: Understand how to insert and remove VHS video cassettes, and how to use the erasure prevention tab.
- Electronic Viewfinder: Adjust the viewfinder for comfortable viewing and learn about the different indicators displayed.
- Camera Recording: Prepare for recording by setting up the camera, inserting a cassette, and pressing the Start/Stop button. Learn about microphone selection and index signal recording.
- Playback: Operate the playback functions including Play, Rewind, Fast Forward, Cue & Review, and Still Playback.
- Zooming and Macro: Learn to use power zooming and manual zooming, and how to utilize the macro function for close-up shots.
- Lighting: Understand standard brightness values and how to use the Iris Close/Open Adjustment Control and Fade-in/Fade-out functions.
- High Speed Shutter: Learn about the different shutter speeds and their applications.
- Accessories: Instructions on how to attach the shoulder strap and shoulder pad, and how to mount the camera on a tripod.
- Other Connections: Information on connecting headphones, pause remote control, and editing equipment.
- Using the Character Generator: Learn how to connect and use the optional character generator for adding titles and time.
- Cautions: Important safety precautions regarding video head clogging, condensation, and handling the device.
- Before Requesting Service: Troubleshooting tips for common issues related to power, recording, and playback.
- Specifications: Technical details of the NV-M10 camcorder and the VW-AM10 AC adaptor.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Power Source | ||
| The power does not turn on. | -Is the power supply unit correctly connected to the VHS Movie? | Check the connection. |
| The power turns on, but it turns off again immediately. | -If the Battery Pack is exhausted, replace it with a fully charged one. | Recharge or replace the battery pack. |
| -If condensation has formed, wait until it has dissolved. | Allow the unit to acclimatize. | |
| Camera Recording | ||
| The power is on, but no picture appears in the EVF. | -Is the lens covered with the lens cap? | Remove the lens cap. |
| Camera recording cannot be performed. | -If the tab of the cassette is broken out, cover the tab hole with adhesive tape. | Cover the hole with adhesive tape. |
| The picture is not clear. | -Is the eyepiece correctly adjusted to your eyesight? | Adjust the eyepiece. |
| -Is the lens surface dusty? | Clean the lens. | |
| The Auto Focus system does not provide optimum focus adjustment. | -Is the Focus Mode Selector set to "AUTO"? | Set the selector to "AUTO". |
| -For shooting conditions where the "AUTO" setting of the Focus Mode Selector cannot provide optimum focus adjustment, set the selector to "MANUAL" and adjust the focus. | Set to "MANUAL" and adjust manually. | |
| Playback | ||
| No playback picture is reproduced. | -Is the connection to the TV set correct? | Check the cable connections. |
| -Is the TV set tuned to the video playback channel? | Select the correct AV channel on the TV. | |
| The colours are not correct. | -Is the colour adjustment of the TV set correct? | Adjust the colour settings on the TV. |
| The playback picture is not in colour. | ||
| The playback picture has large amounts of "snow". | -Adjust the tracking. | Use the tracking control. |
| -If the tape is old, use a new tape. | Try a different tape. |
