Basic Operation Summary
The RD-1103 is an Auto Volume control unit designed for Honda vehicles. It automatically adjusts the audio volume based on vehicle speed to provide a consistent listening experience. Key features include:
- Auto Volume Control: Adjusts volume based on speed sensor input.
- Tone Control: Allows adjustment of the audio tone.
- Gain Adjustment: VR3 allows fine-tuning of the gain.
- Speed Input: Connects to the vehicle's speed sensor.
- Power Source: DC 12V from the car's power system.

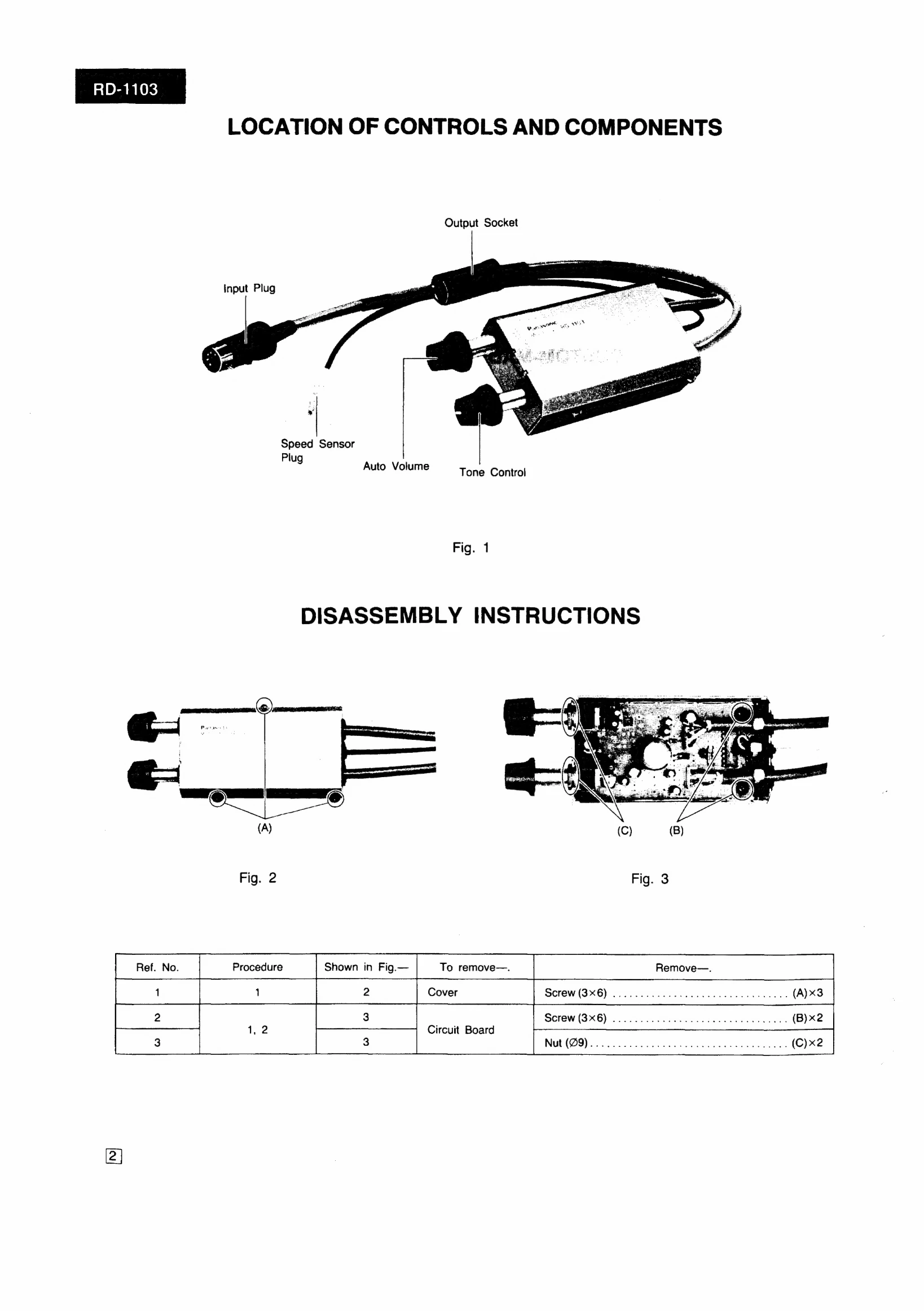

Installation involves connecting the input plug, speed sensor plug, and output socket to the car's audio system and speed sensor. Adjustments for auto volume gain and tone are made using the provided potentiometers (VRs).
Troubleshooting and error codes
| Problem | Possible Cause | Remedy |
|---|---|---|
| No sound output | Loose connections | Check all plug connections (Input Plug, Output Socket) |
| No sound output | Power source issue | Verify DC 12V power supply |
| Auto Volume not functioning | Speed sensor connection | Ensure Speed Sensor Plug is securely connected |
| Auto Volume not functioning | Speed sensor malfunction | Check vehicle's speed sensor |
| Distorted sound | Incorrect gain adjustment | Adjust VR3 (Gain adjustment VR) |
| Distorted sound | Faulty components | Refer to schematic diagram and replacement parts list for component testing/replacement |
