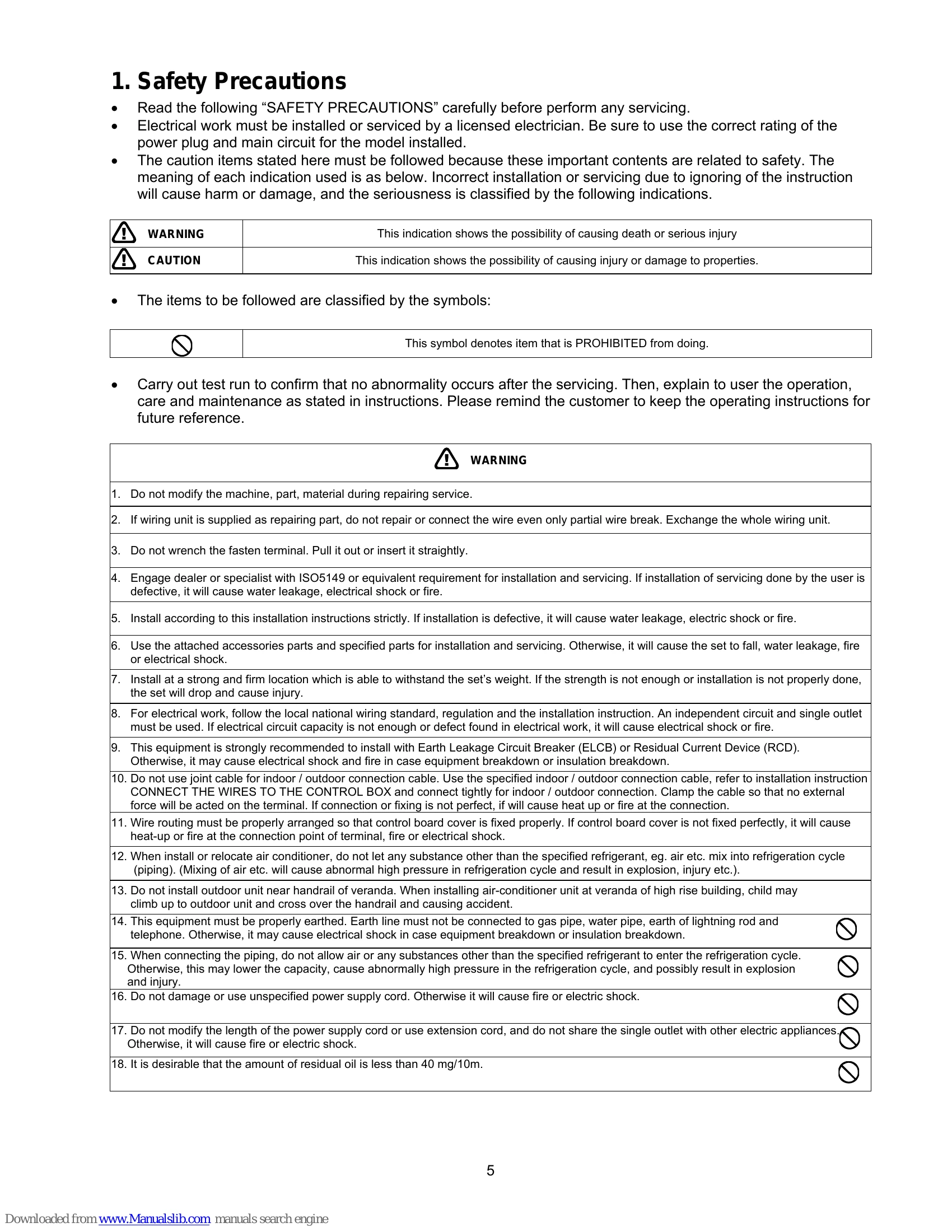

Manual for S-22KA1E5
Uploaded: Nov. 21, 2025, 7:40 p.m.
Manual Publish Date: 2009
The manual provides comprehensive information on the Panasonic S-22KA1E5 air conditioner. It covers safety precautions, features of various indoor and outdoor unit types, product specifications including detailed technical data for different models, refrigeration cycle diagrams, block diagrams, wiring connection diagrams, and electronic circuit diagrams. It also includes installation instructions, remote control operating instructions, and troubleshooting guides with error codes and their remedies. The document details the operation control for both indoor and outdoor units, as well as servicing modes and testing procedures. Exploded views and parts lists are provided for disassembly and replacement purposes.
Troubleshooting and error codes
| Troubleshooting Guide | Page |
| Troubleshooting Flowchart | 242 |
| Drain Level Float Switch Problem (F15-01) | 242 |
| Indoor Fan Motor (DC Motor) Mechanism Locked (F17-02) | 243 |
| Indoor Intake Air Temperature Sensor Abnormality (F20-01) | 244 |
| Wired Remote Controller Thermistor Abnormality (F20-02) | 245 |
| Indoor Pipe Temperature Sensor Abnormality (F21-01) | 246 |
| Indoor Gas Temperature Sensor Abnormality (F22-01) | 247 |
| Indoor Address Double Registration (F25-01) | 248 |
| Total Quantity & Capacity of Connected Indoor Unit Abnormality (F30-01) | 249 |
| Low Pressure Protection (F31-01) | 250 |
| High Pressure Protection (F31-02) | 251 |
| Four Way Valve Abnormality (F31-06) | 252 |
| Indoor Unit Freezing Abnormality (F31-08) | 253 |
| IPM Temperature Protection (F32-04) | 254 |
| Total Current Protection (F32-05) | 255 |
| Compressor Discharge Temperature Protection (F32-06) | 256 |
| Power Factor Correction (PFC) Abnormality (F32-08) | 257 |
| DC Peak Current Detection (F32-09) | 258 |
| Compressor Rotation Failure (F32-10) | 259 |
| Outdoor Fan Motor (DC Motor) Mechanism Locked (F35-02) | 260 |
| Outdoor Intake Air Temperature Sensor Abnormality (F40-01) | 261 |
| Compressor Suction Temperature Sensor Abnormality (F40-11) | 262 |
| Outdoor Pipe Temperature Sensor Abnormality (F40-21) | 263 |
| Outdoor Defrost Temperature Sensor Abnormality (F40-31) | 264 |
| Compressor Discharge Temperature Sensor Abnormality (F40-51) | 265 |
| Outdoor High Pressure Switch Disconnect Abnormality (F41-02) | 266 |
| Outdoor Low Pressure Switch Disconnect Abnormality (F41-12) | 267 |
| Outdoor Current Transformer Open Circuit (F42-11) | 268 |
| IPM Temperature Sensor Abnormality (F44-01) | 269 |
| Outdoor Address Double Registration (F45-01) | 270 |
