Brand: OLYMPUS
Category: Digital Camera
Document Type:
Language: EN
Manual for AZ-210
Uploaded: Aug. 9, 2025, 11:44 p.m.
Basic Operation:

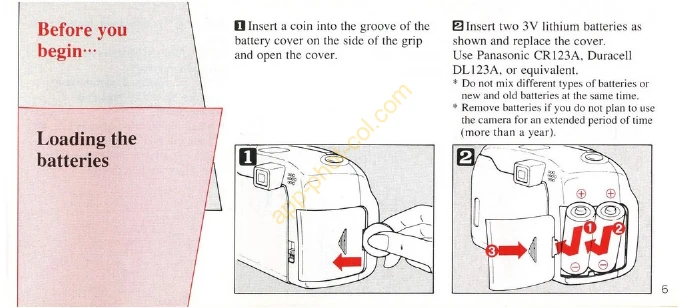

- Loading Batteries: Insert two 3V lithium batteries (CR123A/DL123A) into the camera.
- Loading Film: Open the back cover, insert the film cartridge, align the leader, and close the cover. The camera will advance to the first frame.
- Taking Pictures: Turn the power ON, compose your shot through the viewfinder, zoom if necessary, and press the shutter release button halfway to focus. Press fully to capture the image.
- Unloading Film: The film rewinds automatically at the end of the roll. To rewind early, press the rewind button.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| Camera does not operate |
1. Ensure power switch is ON. 2. Check battery insertion. 3. If film rewound, open back cover. 4. If flash is charging, shutter won't release. 5. If subject distance is under 0.6m, shutter won't release. |
| Focus is incorrect |
1. In certain situations (too much light, black subjects, wire screening, flames/smoke, sun), recompose on a different subject at the same distance. 2. Use focus lock if the subject is not centered. |
| Flash does not fire | Ensure flash mode is not set to OFF. |
| Camera fails in cold weather | Low temperatures reduce battery performance. Keep camera and batteries warm. |
