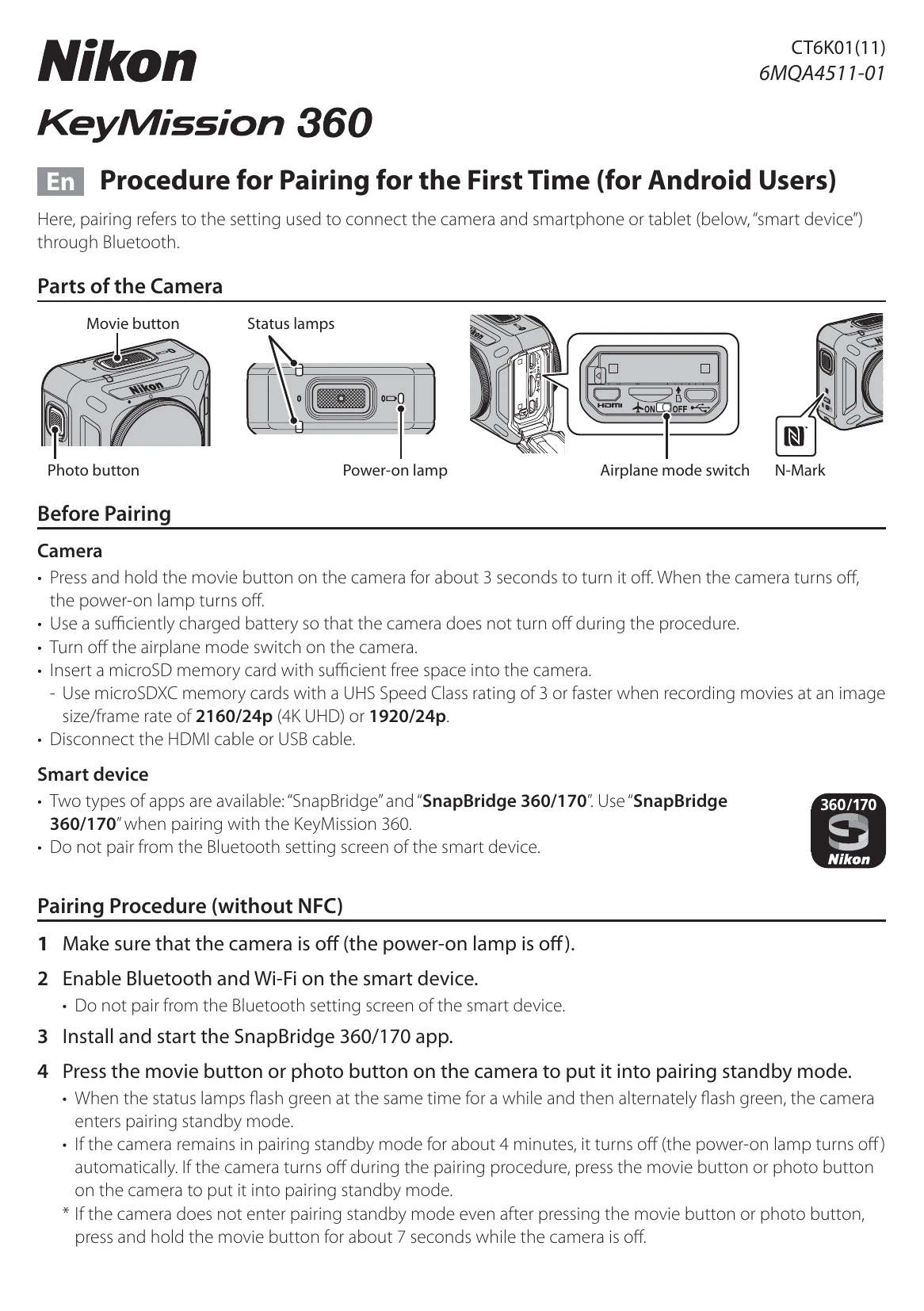

Manual for KeyMission 360

Before Pairing

• Camera: Turn off the camera by pressing and holding the movie button for 3 seconds. Ensure the battery is sufficiently charged. Turn off the airplane mode switch and insert a charged microSD card. Disconnect any HDMI or USB cables.
• Smart device: Use the SnapBridge 360/170 app. Do not pair through the smart device's Bluetooth settings.

Pairing Procedure (without NFC)

1. Ensure the camera is off.
2. Enable Bluetooth and Wi-Fi on your smart device.
3. Install and launch the SnapBridge 360/170 app.
4. Press the movie or photo button on the camera to enter pairing standby mode (status lamps flash green).
5. On your smart device, tap the camera name when it appears. Follow on-screen instructions for successful pairing.

Pairing Procedure (with NFC)

1. Ensure the camera is off.
2. Enable Bluetooth, Wi-Fi, and NFC on your smart device. Close other NFC apps.
3. Install and launch the SnapBridge 360/170 app.
4. Press the movie or photo button on the camera to enter pairing standby mode.
5. Tap the smart device's NFC antenna to the N-Mark on the camera. Select OK when prompted to connect.

When You Cannot Pair

Turn off the camera, close the SnapBridge 360/170 app, and try pairing again using either procedure.
