Manual for N8406-023 1Gb Intelligent L3 Switch
Uploaded: Nov. 21, 2025, 6:37 p.m.
Manual Publish Date: 2007-10-01
Warranty Information
Warranty information is not explicitly detailed in this section.

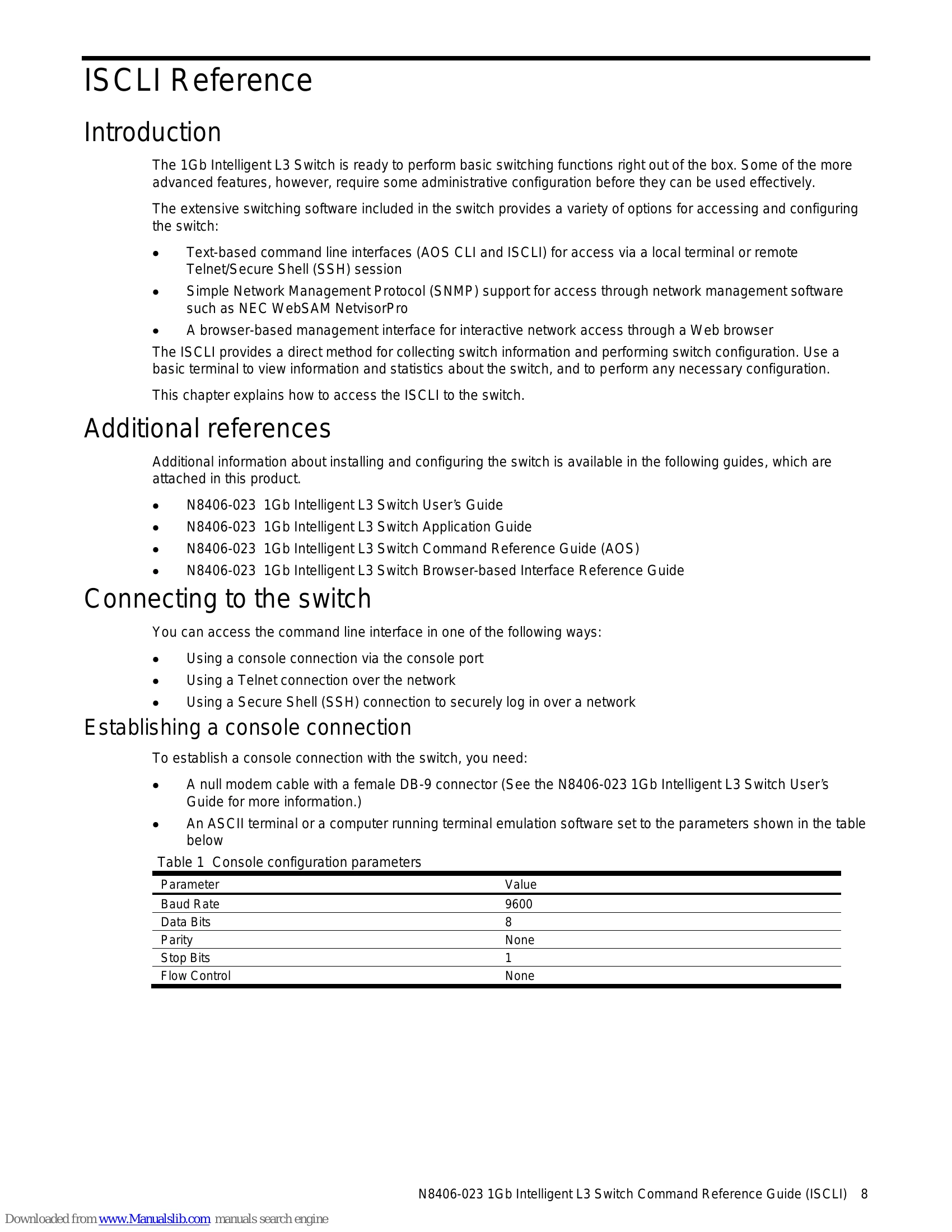

The 1Gb Intelligent L3 Switch offers extensive switching software with options for accessing and configuring the switch via text-based command-line interfaces (AOS CLI and ISCLI), SNMP, or a browser-based management interface. The ISCLI provides a direct method for viewing switch information, statistics, and performing configuration. Access can be gained through console, Telnet, or SSH connections, with different user access levels (User, Operator, Administrator) determining available functions. The switch also supports features like IP addressing, Telnet/SSH connections, and various command modes for management.
Troubleshooting and error codes
| Typeface or symbol | Meaning |
| < > Angle brackets | Indicate a variable to enter based on the description inside the brackets. Do not type the brackets as you enter the command. Example: If the command syntax is ping <IP address> you enter ping 192.32.10.12 |
| Bold body text | Indicates objects, such as window names, icons, and user-interface objects, such as buttons and tabs. |
| Bold Courier text | Indicates command names, options, and text that you must enter. Example: Use the show ip arp commands. |
| Plain Courier text | Indicates command syntax and system output (for example: prompts and system messages). Example: configure terminal |
| { } Braces | Indicate required elements in syntax descriptions where there is more than one option. You must choose only one of the options. Do not type the braces when entering the command. Example: If the command syntax is show portchannel {<1-12>|hash|information} you must enter: show portchannel <1-12> or show portchannel hash or show portchannel information |
| [ ] Brackets | Indicate optional elements in syntax descriptions. Do not type the brackets when entering the command. Example: If the command syntax is show ip interface [<1-256>] you can enter show ip interface or show ip interface 1 |
| Italic text | Indicates variables in command syntax descriptions. Also indicates new terms and book titles. Where a variable is two or more words, the words are connected by a hyphen. Example: If the command syntax is show spanning-tree stp <1-32> 1-32 represents a number between 1-32. |
| | Vertical line | Separates choices for command keywords and arguments. Enter only one of the choices. Do not type the vertical line when entering the command. Example: If the command syntax is show portchannel {<1-12>|hash|information} you must enter: show portchannel <1-12> or show portchannel hash or show portchannel information |
