Brand: NEC
Category: Laptop
Document Type: Parts/Service
Language: EN

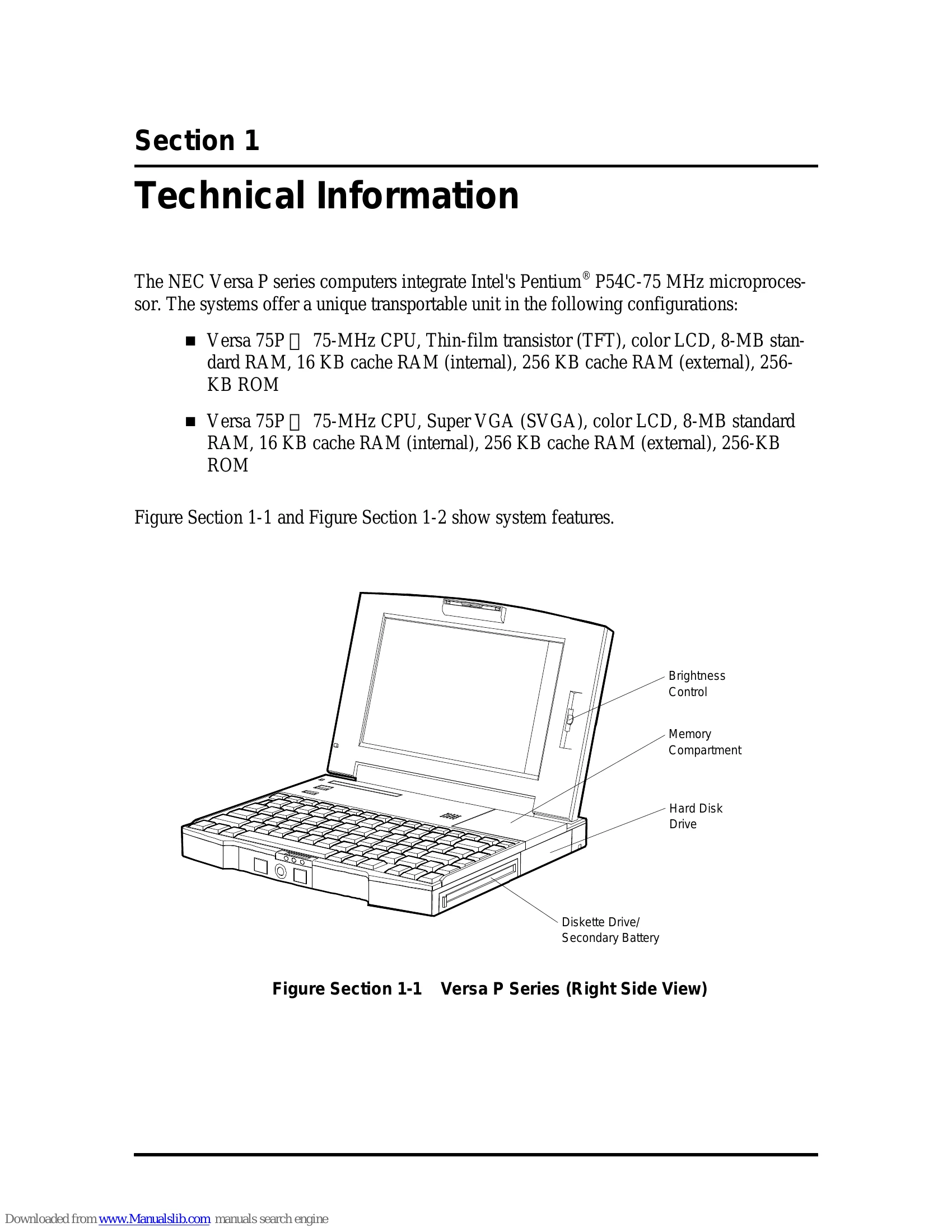

Parts/Service for Versa P Series
Uploaded: Nov. 21, 2025, 7:36 p.m.
Manual Publish Date: 1995-02-01
This service and reference manual contains the technical information necessary to set up, maintain, troubleshoot, and repair the NEC Versa™ P Series Notebook systems. It also provides hardware and interface information for users who need an overview of the computer system design. The manual is organized into five sections covering Technical Information, Setup and Operation, Options, Troubleshooting and Repair, and Troubleshooting and Options for the Docking Station II. Appendices include Connector Locations and Pin Assignments.
Troubleshooting and error codes
| Item | Description | Part Number |
|---|---|---|
| 1 | LED I/F Cable | 808-741609-001A |
| 2 | HDC LED Cable Assembly | 808-740630-001A |
| 3 | Backplane Board | 136-530126 |
| 4 | Base Assembly | 136-235157-A |
| 5 | Interface Board | 136-235160-A |
| 6 | Top Cover Assembly (including Top Cover, Front Mask and Key Lock) | 136-235156-001A |
| 7 | Cover Lock | 808-815023-010A through 808-815023-019A |
| Cover Lock Key (not shown) | 808-815023-100A through 808-815023-109A | |
| 8 | Front Mask Assembly only | 136-235163-001A |
| 9 | Hard Disk Drive Guide | 136-877204-001A |
| 10 | CRT Base Assembly | 612-612071-001A |
| 11 | Power Supply (PU622) | 808-891691-001A |
| 12 | FDD Cable | 808-741632-001A |
| 13 | HDD Cable | 808-857766-010A |
| 14 | Power Switch Assembly | 136-235162-A |
| 15 | AC Power Cable | 808-857649-101A |
| 16 | Blank Panel (Lower) | 136-865672-001A |
| 17 | Blank Panel (Upper and Middle) | 136-865671-001A |
| 18 | Sound Board | 136-530127 |
| 19 | LED Panel Assembly | 136-235161-A |
| Shipping Carton (not shown) | 136-261671-442-0 | |
| Versa Series Docking Station II User's Guide (not shown) | 819-181036-000 |
