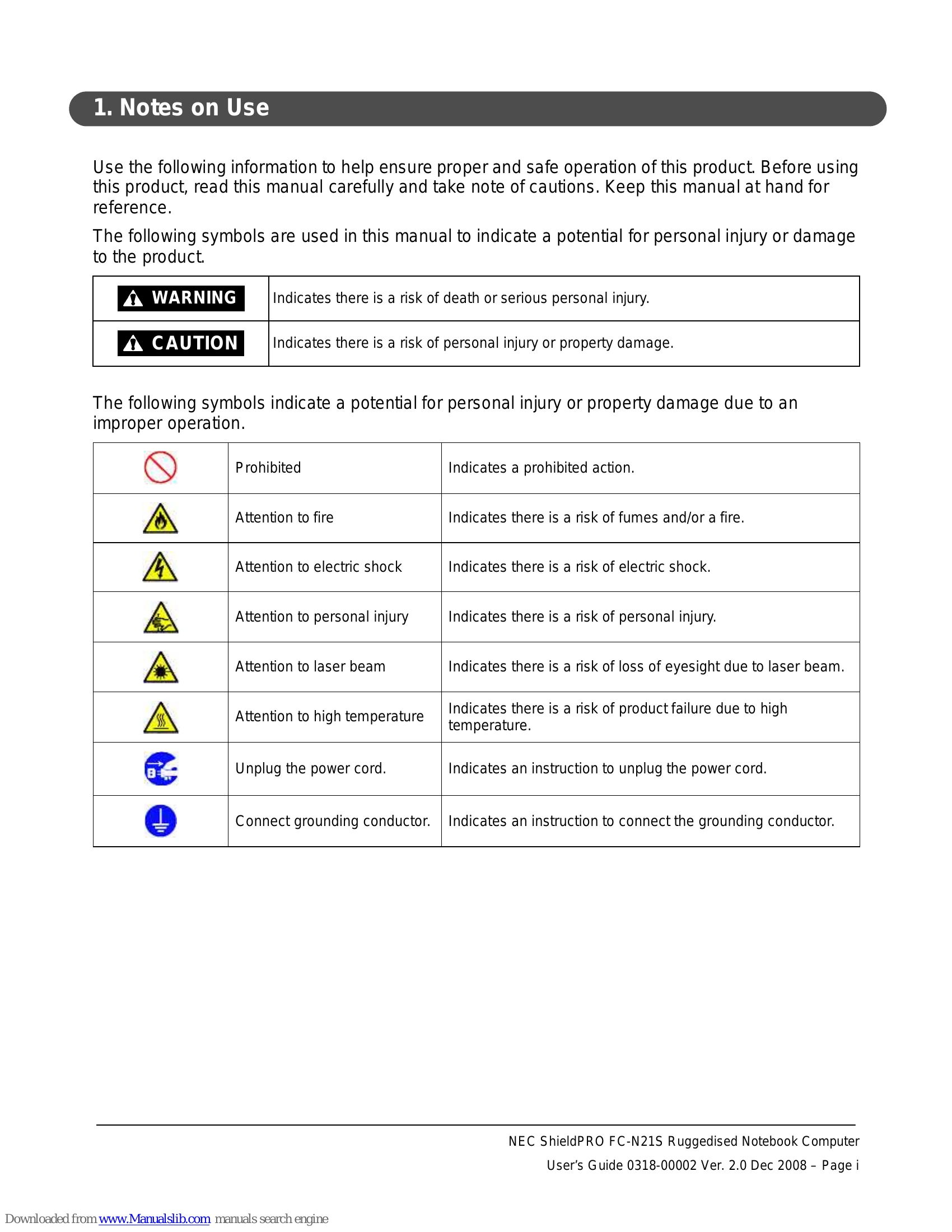

Manual for FC-N21S

Manual for FC-N21S

Brand: NEC

Category: Laptop

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:23 p.m.

Manual Publish Date: 2008-12-02

Warranty Information

Contact your ShieldPRO supplier for repair or warranty information.

  • Suspending and Hibernating: ShieldPRO may not immediately enter suspend or hibernate states. Ensure all operations are terminated. PC cards, executed programs from external media, or insufficient HDD space may prevent these states. Check system settings for hibernation enablement.
  • Resuming from Suspend/Hibernate: If the battery is completely discharged, ShieldPRO will automatically enter suspend/hibernate. Connect the AC adapter or replace the battery. If the screen is disturbed and power turns off upon resuming, turn on the power switch.
  • Powering Off: If the power cannot be turned off, an error or application freeze may occur. Press Ctrl+Alt+Del to abort applications and then hold the power button for four seconds to force shutdown.
  • Software Issues: If an application operates improperly, confirm installation, consult application documentation for error messages, or reboot ShieldPRO.
  • Sound Issues: If sound is distorted, check mute settings, volume levels, sound driver installation, and ensure ShieldPRO is not in suspend state. Verify external speaker connections.
  • External Devices: Ensure microphones and external sound devices are properly connected and Windows volume settings are correct. For CD-ROM/R drives, verify disk placement and cleanliness. For floppy disk drives, check for physical damage, proper insertion, formatting, and write-protection status.
  • Password Issues: If an invalid password is entered, re-enter carefully, checking Caps Lock and Num Lock status. If a password is forgotten, use the password hint, log in with another account, or ask an administrator. For supervisor passwords, contact your supplier.
  • Date/Clock Incorrect: Check OS and BIOS clocks. If system time is wrong, the application may be defective. If RTC (BIOS) time is wrong, the backup battery may be low or a hardware error may have occurred.

Troubleshooting and error codes

Problem Possible Cause and Solution
ShieldPRO does not immediately enter into suspend (standby) or hibernate state.
  • Wait until all operations are terminated before entering suspend/hibernate.
  • PC card may prohibit entry; abort communication program and remove/halt card.
  • Close files/abort programs executed from external media via USB.
  • Ensure sufficient HDD space is available for extended memory capacity.
  • Check "Enable hibernation" settings.
ShieldPRO does not resume from suspend (standby) or hibernate state.
  • Battery is discharged: Connect AC adapter or replace battery.
Attempt to resume from suspend (standby) or hibernate state, screen is disturbed and power is turned off.
  • LCD panel closed or power turned off during transition. Turn on using power switch. Follow error message directions.
The power cannot be turned off.
  • Application freeze or error. Press Ctrl + Alt + Del to abort application, then hold power button for 4+ seconds.
An application operates improperly.
  • Confirm application installation.
  • Refer to application documentation for error messages.
  • Reboot ShieldPRO.
  • If system hangs, wait, check HDD activity LED. If unresponsive, reset ShieldPRO (Ctrl+Alt+Del, then power button for 4+ seconds).
Sound does not play.
  • Check mute feature and volume levels.
  • Confirm sound driver installation.
  • Ensure ShieldPRO is not in suspend state.
  • If using external speakers, confirm connection, power, and switch status.
Sound is distorted.
  • Volume set too high or too low. Adjust levels.
Recording fails.
  • Adjust play or record sound level.
External microphone or sound device does not operate.
  • Confirm microphone connection.
  • Check Windows volume via taskbar speaker icon.
  • Check ShieldPRO volume control.
The CD-R/W with DVD-ROM drive does not read CD data.
  • Confirm CD is properly inserted, label up.
  • Clean CD if dirty using a cleaning kit.
  • Confirm DVD/CD-ROM driver is installed.
  • Test with another CD.
The CD or DVD cannot be ejected.
  • Manually eject: Turn off ShieldPRO, insert thin wire into ejection hole, push, pull tray out, remove CD/DVD.
The floppy disk drive indicator remains ON.
  • Confirm floppy disk is not physically damaged.
  • Confirm floppy disk is inserted properly.
Writing data to the floppy disk is disabled.
  • Confirm disk is formatted.
  • Confirm disk is not write-protected.
  • Confirm correct drive selected for writing.
  • Confirm sufficient capacity.
  • Confirm disk is not physically damaged.
Reading data from the floppy disk is disabled.
  • Confirm disk is formatted.
  • Confirm correct drive selected for reading.
After password entry, "An invalid password is entered" appears.
  • Re-enter password. Check Caps Lock/Num Lock. Press Caps Lock or Fn+F12 to disable if illuminated.
You have forgotten the password.
  • For Windows password, use hint, log in with another account, or ask administrator.
  • For supervisor password, contact ShieldPRO supplier.
The date and/or clock are incorrect.
  • When system time is wrong: Abort applications, set date/time again. If persists, contact supplier.
  • When RTC (BIOS) time is wrong: Backup battery may be low, or hardware error. Contact supplier.
