Warranty Information
One year warranty for consumer products and 90 days for accessories.

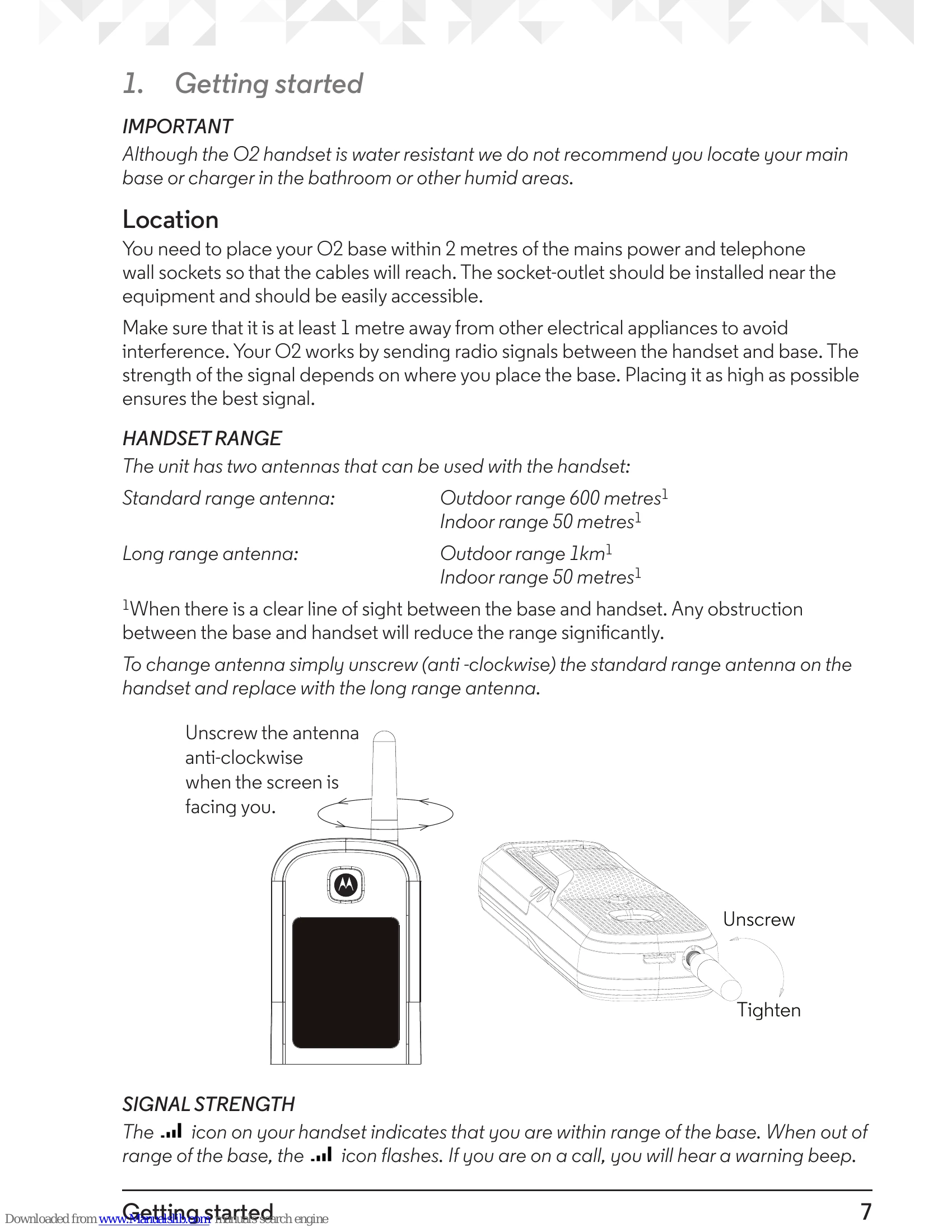

Getting Started: Place the base near power and telephone sockets, at least 1 meter away from other appliances. Connect the base to power and the telephone line. Charge the handset for at least 24 hours initially. Replace the standard antenna with the long-range antenna for extended outdoor range. Adjust volume during calls. Lock the keypad to prevent accidental dialing.
Using the Phone: Make and answer calls, use hands-free, and access the phonebook and calls list. Internal calls and 3-way conference calls are supported.
Settings: Customize handset and base ringtones, volumes, names, and display options. Set date and time manually or via Caller ID.
Troubleshooting and error codes
| Issue | Possible Solution |
|---|---|
| Icon not scrolling during charge | Check battery contact. Battery is full. |
| No dialling tone | Check connections. Reset phone. Charge batteries. Move closer to base. Use correct line cable. Connect line adaptor. |
| Poor audio quality | Move base at least 1 meter away from electrical appliances or metal structures. |
| .l icon is blinking | Register handset to base. Move closer to base. |
| No ring tone | Check if ring tone is deactivated. Increase volume. Check Caller ID service. |
| Phonebook entry cannot be stored | Phonebook is full. Delete an entry. |
| No display | Recharge or replace batteries. Disconnect and reconnect base power supply. |
| Unable to register another handset | Maximum number of 11 handsets reached. Unregister a handset. |
| Noise interference on radio or television | Move base or charger further away. |
