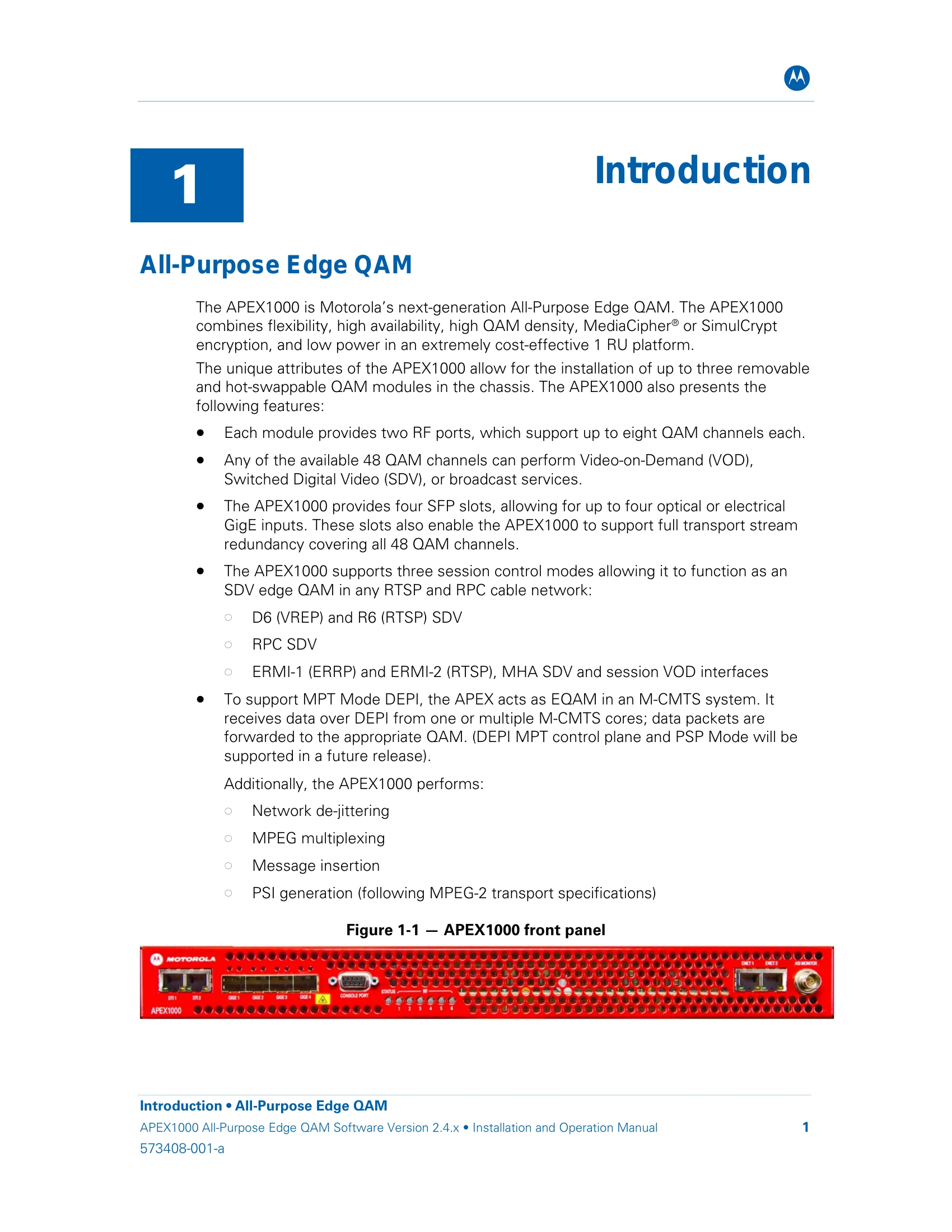

The APEX1000 All-Purpose Edge QAM is a 1 RU platform that combines flexibility, high availability, high QAM density, encryption capabilities (MediaCipher or SimulCrypt), and low power consumption.
Key features include:
- Support for up to three removable QAM modules, each with two RF ports capable of handling eight QAM channels.
- Ability to perform Video-on-Demand (VOD), Switched Digital Video (SDV), or broadcast services on any of the 48 available QAM channels.
- Four SFP slots for optical or electrical GigE inputs, supporting full transport stream redundancy for all 48 QAM channels.
- Support for three session control modes for SDV edge QAM functionality in RTSP and RPC cable networks.
- Additional functions such as network de-jittering, MPEG multiplexing, message insertion, and PSI generation.
The APEX1000 can act as an EQAM in an M-CMTS system for MPT Mode DEPI, receiving data over DEPI from M-CMTS cores and forwarding it to the appropriate QAM.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| APEX1000 LED Color Scheme (Page 278) | Refer to page 278 for detailed troubleshooting information related to APEX1000 LED color indications. | N/A |
| Troubleshooting Section (Page 278) | General troubleshooting procedures and information on contacting the TAC are available starting on page 278. | N/A |
