Installation Guide for TN500/TN700 Series
Uploaded: Nov. 21, 2025, 8:04 p.m.

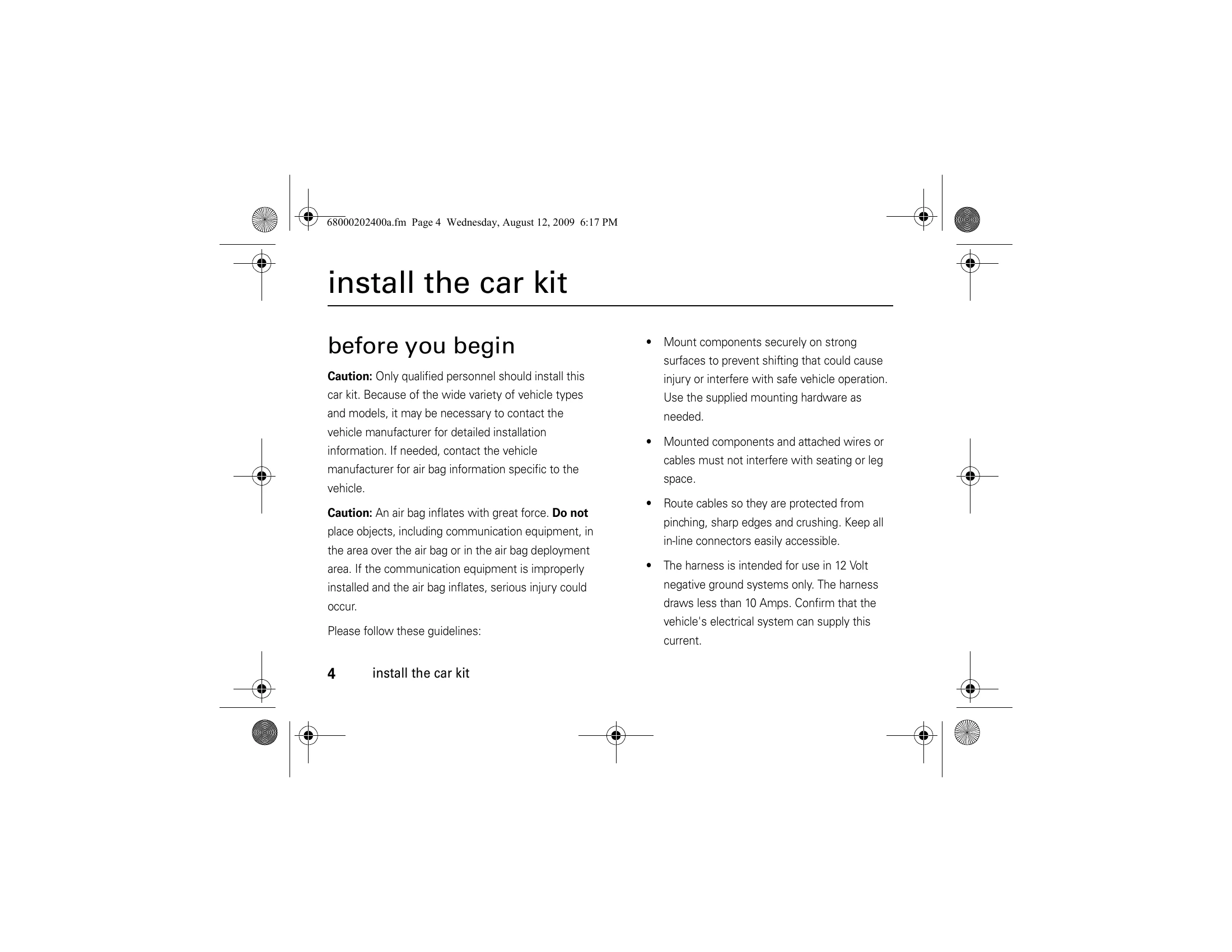

- Installation: This guide details the professional installation of the Motorola MOTONAV™ TN500 and TN700 series car kits. It covers connecting the vehicle integration kit, ISO cable, microphone, and mounting the MOTONAV device.
- Features: The car kit enables hands-free call audio through vehicle speakers, provides power to the MOTONAV device, and can mute vehicle entertainment system audio during calls.
- Selective Mute: Allows selection of specific speaker channels to remain connected to the vehicle's entertainment system during hands-free calls.
- Safety: Emphasizes caution regarding air bag deployment areas and proper cable routing.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to MOTONAV device | • Vehicle integration kit is not connected correctly. | • Ensure the vehicle integration kit is securely connected. |
| No audio through vehicle speakers | • Incorrect selective mute channel selected. | • Adjust the DIP switch on the vehicle integration kit to the desired speaker channel. |
| Microphone not working | • Microphone not connected properly. | • Ensure the microphone is connected to connector C on the vehicle integration kit. |
