Brand: Mitsubishi
Category: TV
Document Type: Parts/Service
Language: EN
Parts/Service for WD-60C9 / WD-65C9 / WD-73C9 / WD-60737 / WD-65737 / WD-73737 / WD-82737 / WD-65837 / WD-73837 / WD-82837
Uploaded: Nov. 21, 2025, 8:53 p.m.
Manual Publish Date: 2009-01-01
Warranty Information
This service manual is for models WD-60C9, WD-65C9, WD-73C9, WD-60737, WD-65737, WD-73737, WD-82737, WD-65837, WD-73837, WD-82837.

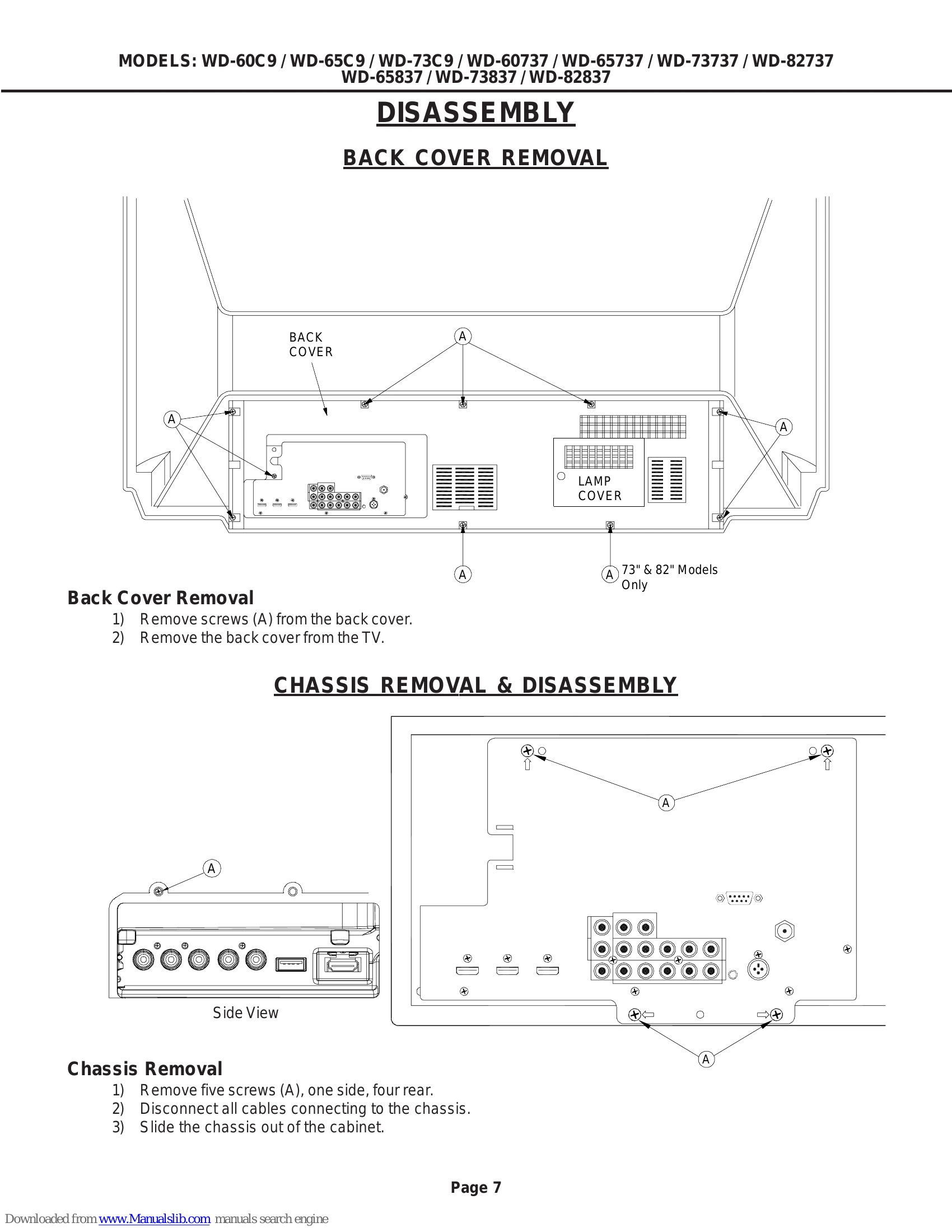

This service manual provides detailed instructions for servicing Mitsubishi DLP Projection HDTVs, specifically models within the V41C, V41, and V41+ chassis types. It covers disassembly and assembly procedures, component replacement (screen, lens, color wheel, mirror, speakers, PCBs), initialization and troubleshooting steps, service adjustments, and circuit diagrams. Safety precautions and lead-free solder usage are also emphasized.
Troubleshooting and error codes
| Error Code | Description |
|---|---|
| 1 | Lamp Error |
| 2 | Fan Error |
| 3 | Temp. Error |
| 4 | DMD Error |
| 5 | Tuner Error |
| 6 | Communication Error |
| 7 | Power Supply Error |
| 8 | Color Wheel Error |
