Manual for MR-WX60F
Uploaded: Nov. 21, 2025, 6:56 p.m.
Warranty Information
Contact Mitsubishi Electric for service availability outside Hong Kong.
- Refrigerator Compartment: Stores drinks and foods for immediate use. Features adjustable glass shelves, sliding cases, and various pockets. An auto-closer function ensures doors close automatically if left ajar.
- Supercool Freezing Compartment: For quick cooking and preserving flavor. Can be used for Supercool Freezing or as a regular freezer compartment. Features hot freezing to preserve freshly cooked food.
- Freezer Compartment: Stores frozen foods and ice cream. Foods frozen with Supercool Freezing can be stored here for extended periods.
- Vegetable Compartment: Maintains vegetable freshness by limiting moisture evaporation. Features Vitamin Factory Fresh LEDs to promote greening and vitamin C content.
- Ice Making Compartment: Produces ice using the water tank and ice maker. Includes features for regular ice making and rapid ice making.

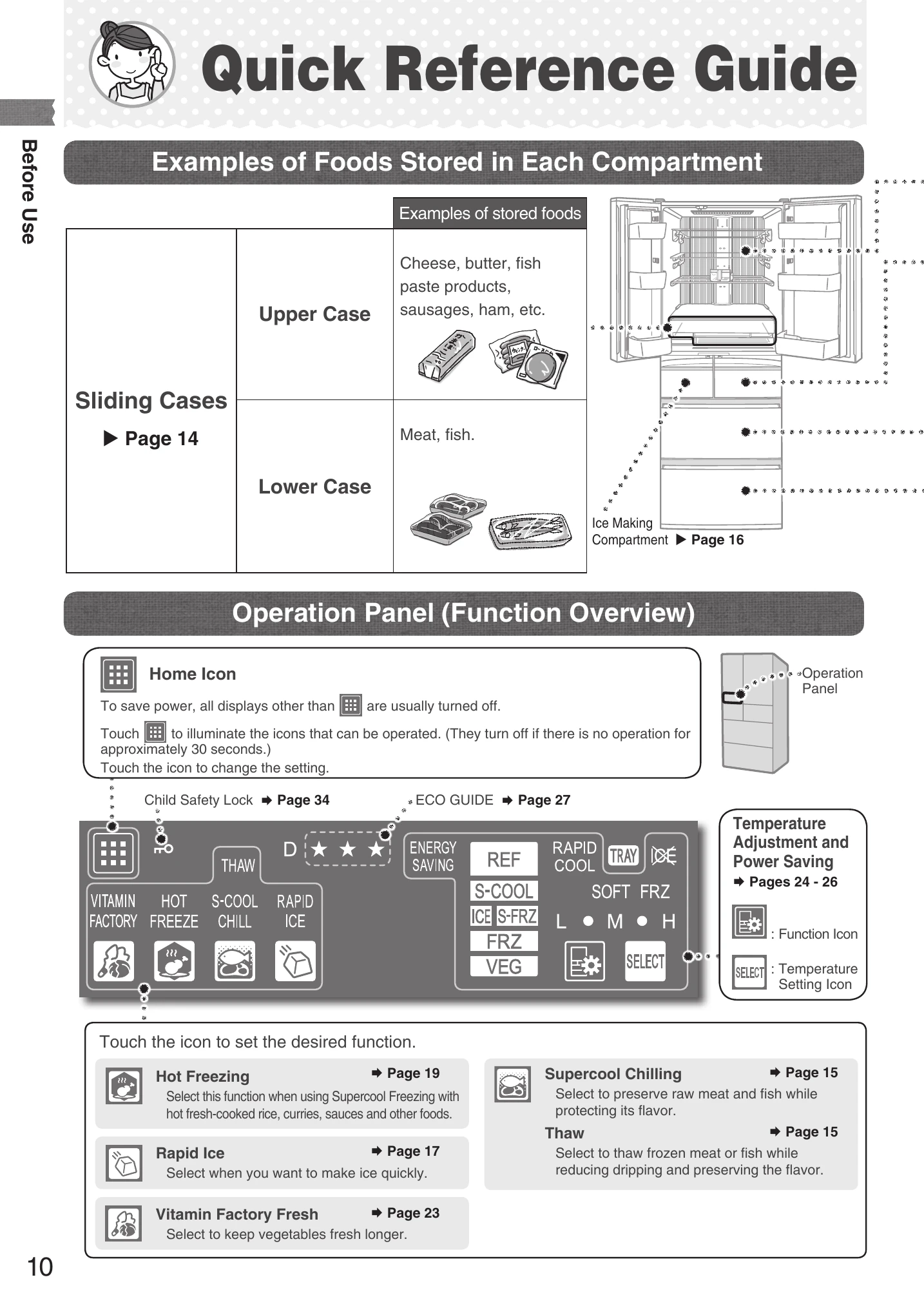

- Operation Panel: Allows temperature adjustment for each compartment, setting various functions like Supercool Freezing, Hot Freezing, Rapid Ice, and Energy Saving Mode.
Troubleshooting and error codes
| Problem | Check | Explanation and action to take | |
|---|---|---|---|
| Cannot make ice. | Is ice making stopped? | Touch and check the display. ➡ Page 24 Ice making only starts after the refrigerator has fully cooled. It takes 4 to 5 hours for the refrigerator to cool, and in summer it may take 24 hours or more before ice making starts. |
|
| Is the impeller installed in the water tank pump? | ➡ Page 28 | ||
| Did you remove food and other items from the ice making compartment? | Remove food and other objects from the ice storage box. The refrigerator concludes that the ice storage box is full of ice. Also, spread the ice out from back to front so it is level. | ||
| Doors do not close. | Frost and condensation form inside. | ||
| [Refrigerator compartment] Are any food items protruding form the shelves or door pockets? | Create space between foods and remove any foods that are protruding from the shelf or are in contact with the top of the case. Avoid opening the doors as much as possible for a while. | ||
| [Freezer compartment and other drawers] Has food fallen behind the case? Is the amount of stored food large and does it contact the ceiling when the door is closed? | |||
| The alarm does not stop. | Are the compartment icons on the operation panel blinking? | Check "When the Alarm Sounds" and "If the Alarm Does Not Stop." ➡ Page 35 | |
