Warranty Information

Consult your dealer for warranty details.

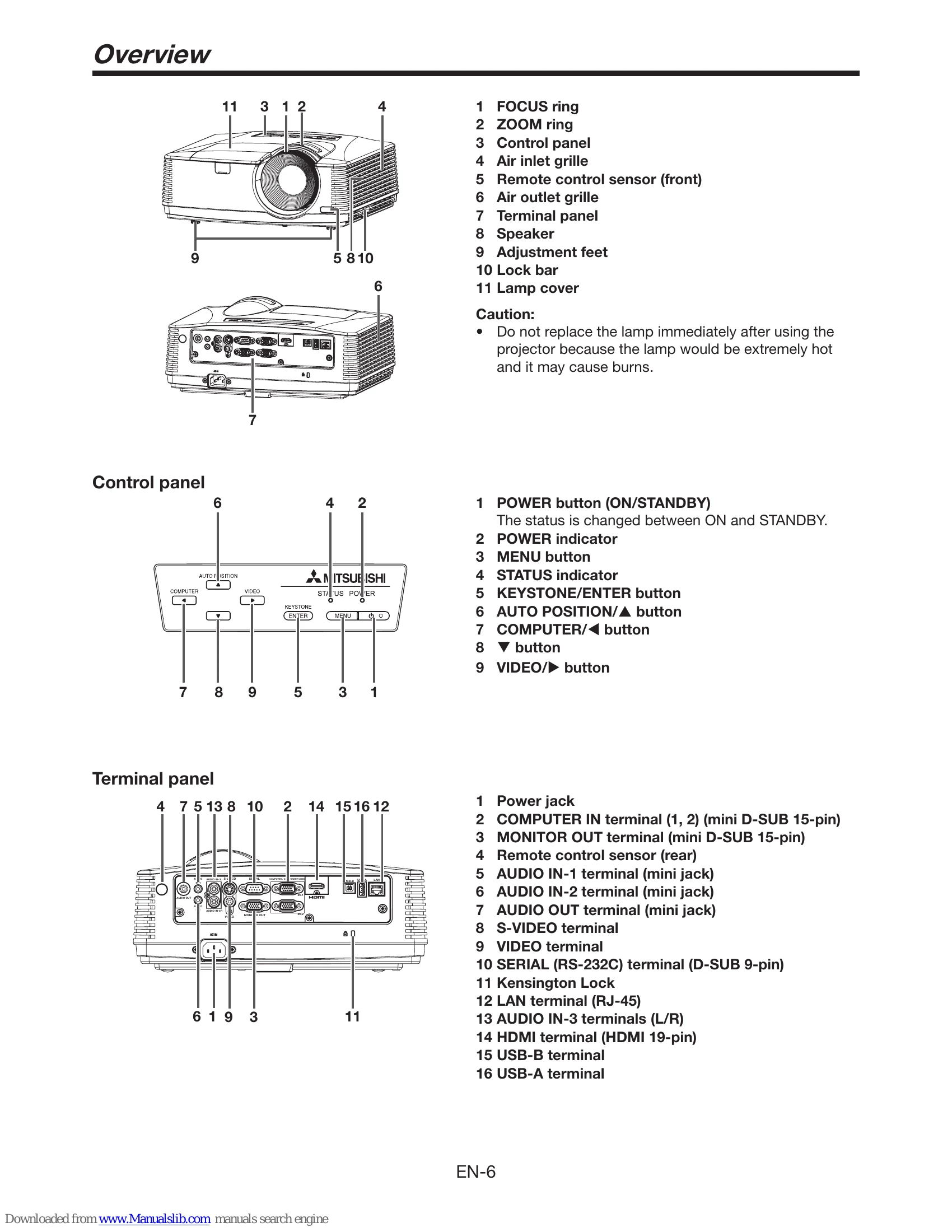

  • Power-on: Connect the power cord, then press the POWER button on the control panel or ON button on the remote. Allow about one minute for the lamp to light up. Adjust focus using the focus ring and select input source using dedicated buttons.
  • Image Adjustment: Adjust zoom ring for image size. Adjust focus as needed. Use AUTO POSITION for automatic alignment when connected to a computer. Manual keystone adjustment is available via the KEYSTONE button.
  • Power-off: Press the POWER button or STANDBY button. Confirm by pressing again within 10 seconds. Wait for the STATUS indicator to turn off, then unplug the power cord. Direct power off by unplugging is possible but not recommended immediately after use.
  • Basic Operations: Set aspect ratio via ASPECT button or menu. Watch 3D content by enabling the 3D option in the Picture menu and using compatible glasses. Control volume using VOLUME buttons or the Audio menu. Use AV MUTE to temporarily silence video and audio.

Troubleshooting and error codes

Problem Solution
Power can not be turned on. Check power cord connection, air inlet/outlet grilles, and lamp cover. Press POWER button. If STATUS indicator is steady red, replace lamp. Ensure lamp cover is attached. Unplug and contact dealer if issues persist.
No image appears on the screen. Cancel AV mute. Check lens cap removal, lamp lighting time. Ensure fans have stopped if recently powered off. Clean intake vent, check lamp cover, check cables. If STATUS indicator is orange, vents may be blocked. If red, lamp may need replacement or may have deteriorated. Check Auto Power Off setting.
Images are not displayed correctly.
  • Wavy images: Secure cables, keep away from interference, adjust keystone carefully.
  • Hue/Tint incorrect: Check Computer Input setting, cable connection. Tints may differ between projectors or compared to TV/monitor.
  • Motion areas not displayed: Caused by the computer; contact manufacturer.
  • Obscured images: Match computer resolution with projector resolution. Avoid keystone adjustment if texts appear obscured. Flicker may occur during power-on or certain adjustments.
  • Twitching images: Set Auto Keystone to Off or lower volume.
Others
  • Exhaust vents emit warm air: Normal cooling function.
  • No audio output: Check volume, Audio Input, and HDMI audio output settings (PCM).
  • Menu unusable: Noise may be causing microcomputer issues. Power off, unplug, wait 10 minutes, plug in, power on.
  • "Temperature!!" displayed: Ambient temperature is high. Relocate projector, ensure vents are clear.
  • ▲ mark: Ineffective operation. Check batteries, remote control sensor exposure, and operating range.
  • Remote control issues: Check batteries, avoid direct sunlight/fluorescent light on sensor, use within range and at least 10cm away.
  • Fans sound during standby: Normal operation when Standby Mode is LAN, Speaker Out, or Monitor Out.
  • Abnormal sound: Metallic sounds may occur due to color wheel spin, not a malfunction.
If problem occurs after lamp replacement:
  • Check lamp cover security. Reset lamp operating time.
