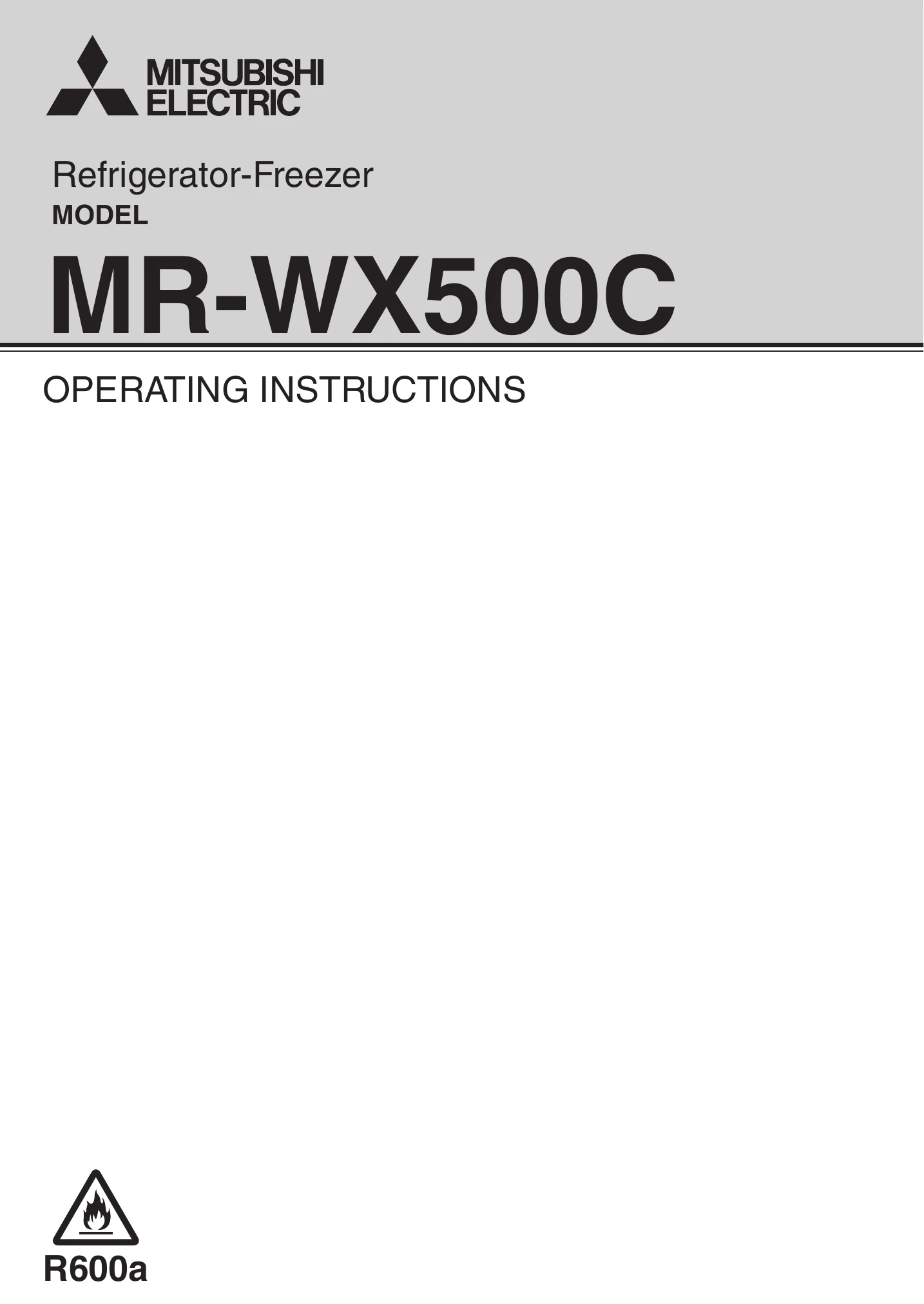

Manual for MR-WX500C
Uploaded: Nov. 21, 2025, 7:27 p.m.
Store food in the best way for consumption
Place food and drinks in the compartments suitable for preserving them. Convenient functions can be easily set by simply touching icons on the operation panel.
Refrigerator Compartment (0°C to 6°C)
- Foods that are used daily
- Foods you do not want to freeze
Sliding Cases (-3°C to 3°C)
- Dairy products, fish paste products, processed food
- Recommended: Supercool Chilling for meat or fish below freezing
Ice Making Compartment
- Ice is made automatically.
Freezer Compartment (-22°C to -16°C)
- Frozen food, ice cream, food frozen at home, bread
Operation Panel
Touch icons to select settings like Energy Saving, Supercool Chilling, Supercool Freezing, Hot Freezing, Rapid Cool, and Power Save Mode.
Troubleshooting and error codes
| Problem | Check | Explanation and Action |
|---|---|---|
| Does not cool well | Has enough time passed after installation? | It takes 4 to 5 hours for the refrigerator to cool, and may take 24 hours in summer to fully cool. |
| Is the temperature setting set to "L"? | Set to "M" or "H", or set the versa compartment to "FRZ•H" or to the setting of your liking. ➡ Pages 21 - 22 | |
| Is the compartment set to Power Save Mode? | Cancel Power Save Mode. ➡ Page 24 | |
| Is the flow of cold air being blocked? Are the doors being opened frequently, or left ajar? Is food blocking them? | Make space between foods and remove any food that is sticking out of shelves or touching the ceiling of the drawers. Avoid opening and shutting the door for a while. | |
| Is heat discharging being blocked? Check if there is no gap around the refrigerator and the refrigerator is exposed to direct sunlight. | Check that there is enough space around the refrigerator and that it is properly installed. | |
| Ice melts | In Versa Compartment... | For storing ice cream and frozen foods, set to "FRZ•H". ➡ Pages 21 - 22 Soft-Freezing is set at the time of purchase. Food does not quickly freeze. With Soft-Freezing, food freezes at about -7°C, so it may take up to about 24 hours for food to completely freeze. Supercool Freezing takes time (about 8 to 9 hours) to uniformly freeze food from the core. Soft-Freezing freezes food. Food appears to freeze just as when it freezes in the freezer. |
| Is the temperature on the operation panel set to "H"? | Set the temperature to "M". Also, the temperature with each setting may temporarily decrease. | |
| Is food with a lot of moisture stored at the rear of the shelf? | Place drinks and food containing a lot of water, such as tofu, vegetables and fruits, at the front of the shelf or in a door pocket. Low-fat and low-sugar foods are likely to freeze easily when they are stored at the rear of the shelf. | |
| Food freezes in the refrigerator and vegetable compartments | Is the surrounding temperature 5°C or less? | Food in the refrigerator compartment or vegetable compartment may freeze. Freezing is less likely when the temperature settings are set to "L". ➡Pages 21 - 22 |
| Is the water supply pipe installed correctly without any gaps or looseness? | If there are foreign objects loosening the pipe or if there is a gap, strong cold air can flow into the refrigerator compartment. Make sure that it is securely set. Page 27 | |
| Is the refrigerator compartment's temperature set to "H"? | Set the temperature of the refrigerator compartment to "M" or "L". |
