Installation Guide for JT-SB116EH-W-CA
Uploaded: Nov. 21, 2025, 7:24 p.m.
Warranty Information
Refer to local standards and guidelines for warranty information.
Safety Precautions: Always disconnect power before installation to prevent electric shock. Avoid locations with high humidity, salt damage, or corrosive gases. Ensure proper grounding and use a ground-fault circuit interrupter. Electrical wiring must be done by a certified professional.
Installation Location: Choose a location that is easy to use and clean. Maintain specified clearances from walls and other obstacles. Ensure the wall is strong enough to support the unit's weight. Avoid areas where food is handled or where the unit might be bumped.
Installation Steps:
Installation Location: Choose a location that is easy to use and clean. Maintain specified clearances from walls and other obstacles. Ensure the wall is strong enough to support the unit's weight. Avoid areas where food is handled or where the unit might be bumped.
Installation Steps:

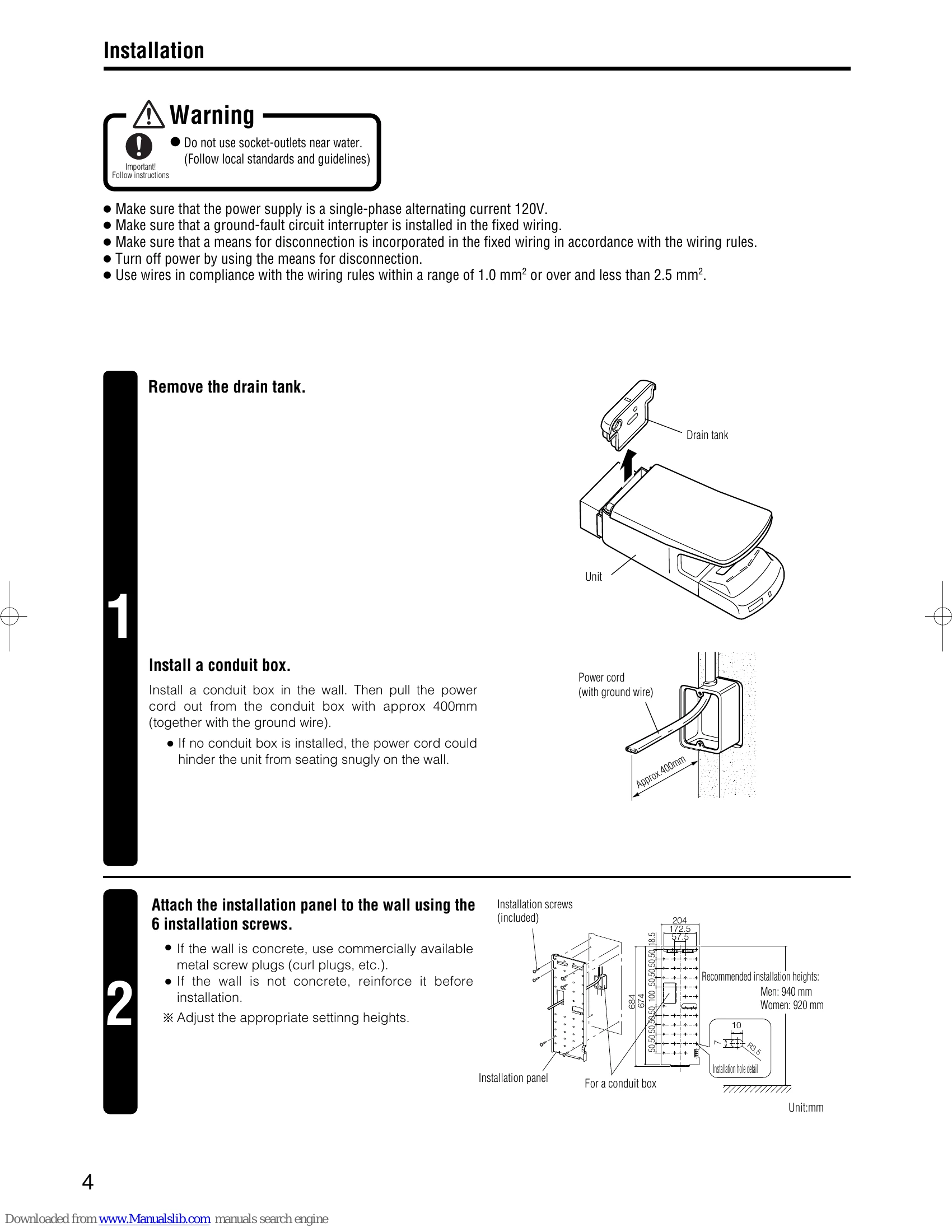

- Remove the drain tank and front panel.
- Install a conduit box and attach the installation panel to the wall using provided screws.
- Run the power cord through the unit and secure it to the installation panel.
- Make wiring connections at the terminal block, ensuring all connections are secure.
- Install the terminal cover and then reattach the front panel and drain tank.
Troubleshooting and error codes
| Step | What to check for | Check |
|---|---|---|
| 1 | Check power supply voltage | Is single-phase alternating current 120V being used? |
| 2 | Turn the ground-fault circuit interrupter on | |
| 3 | Turn on power by using the means for disconnection | |
| 4 | Turn the power switch on | Is the power lamp in the display on ? |
| 5 | Dry hands | Is the air blowing? |
| 6 | Turn the air speed knob while inserting the hands. | Does the air speed change? |
| 7 | Turn on the heater switch. | Is the heater lamp illuminating at the display? Does hot air blow out? (It takes a few minutes before hot air blows after turning on the switch.) (Burning smell of oil, dirt, etc. at the heat storage section in the heater may be felt at the start of use but this is normal and there is no problem.) |
| 8 | Is the unit mounted securely without any vibration or noises? |
