Manual for MiVue M760D
Uploaded: Aug. 10, 2025, 12:45 a.m.
Warranty Information
MiTAC does not warrant this document is error-free and assumes no liability for damages incurred.
Getting Started:
- Install Memory Card: Insert a Class 10 MicroSD card (up to 128 GB) into the slot. Format the card if necessary.

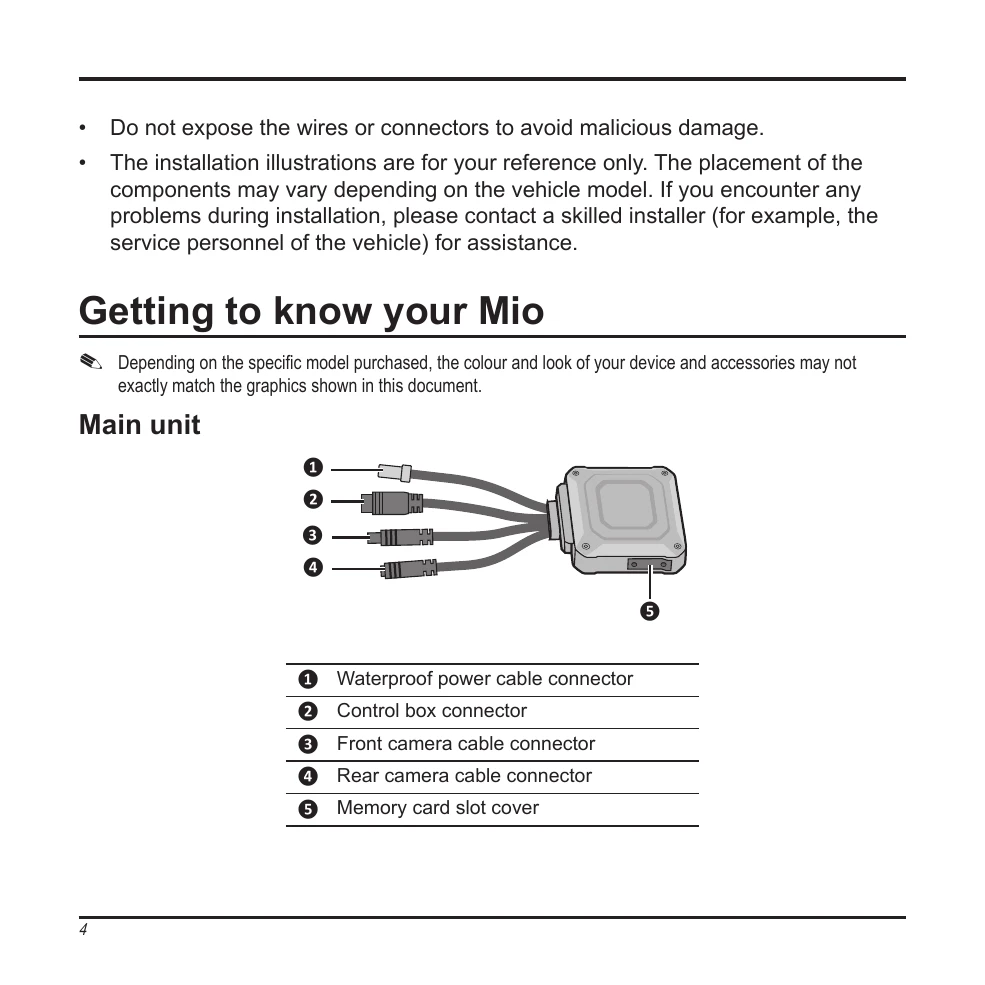

- Connect Cameras: Connect the front and rear cameras to the main unit using the provided cables.
- Connect Power: Wire the waterproof power cable to the vehicle's 12V system, connecting the red (ACC) and yellow (B+) wires to appropriate fuses, and the black (GND) wire to the vehicle's metal part.
- Secure Components: Use cable ties or double-sided tape to secure the main unit, control box, and cameras.
Basic Operation:
- Recording: Continuous recording starts automatically when the vehicle is turned on. The blue indicator on the control box will be lit.
- Stop/Start Recording: Press Button 2 on the control box to stop recording (standby mode) or start recording.
- Event Recording: Press Button 1 on the control box to start an event recording.
- Settings: Customize settings like clip length, frequency, EV, and stamps using the MiVue Pro app via Wi-Fi.
Troubleshooting and error codes
| Issue | Possible Cause | Solution |
| Red indicator on GPS multi-function control box glows | Memory card error | Check your memory card. |
| Red indicator on GPS multi-function control box flashes | Formatting or OTA firmware update | Wait for the process to complete. |
| Abnormal signals from camera (red indicator flashes) | Camera connection issue or damage | Check the camera status and connection. |
| Device stops responding or is frozen | Software glitch | Perform a hardware reset by holding Buttons 1 and 2 on the control box for 5 seconds. |
