Parts/Service for W1113
Uploaded: Nov. 21, 2025, 8:03 p.m.
Manual Publish Date: 2004-04-01

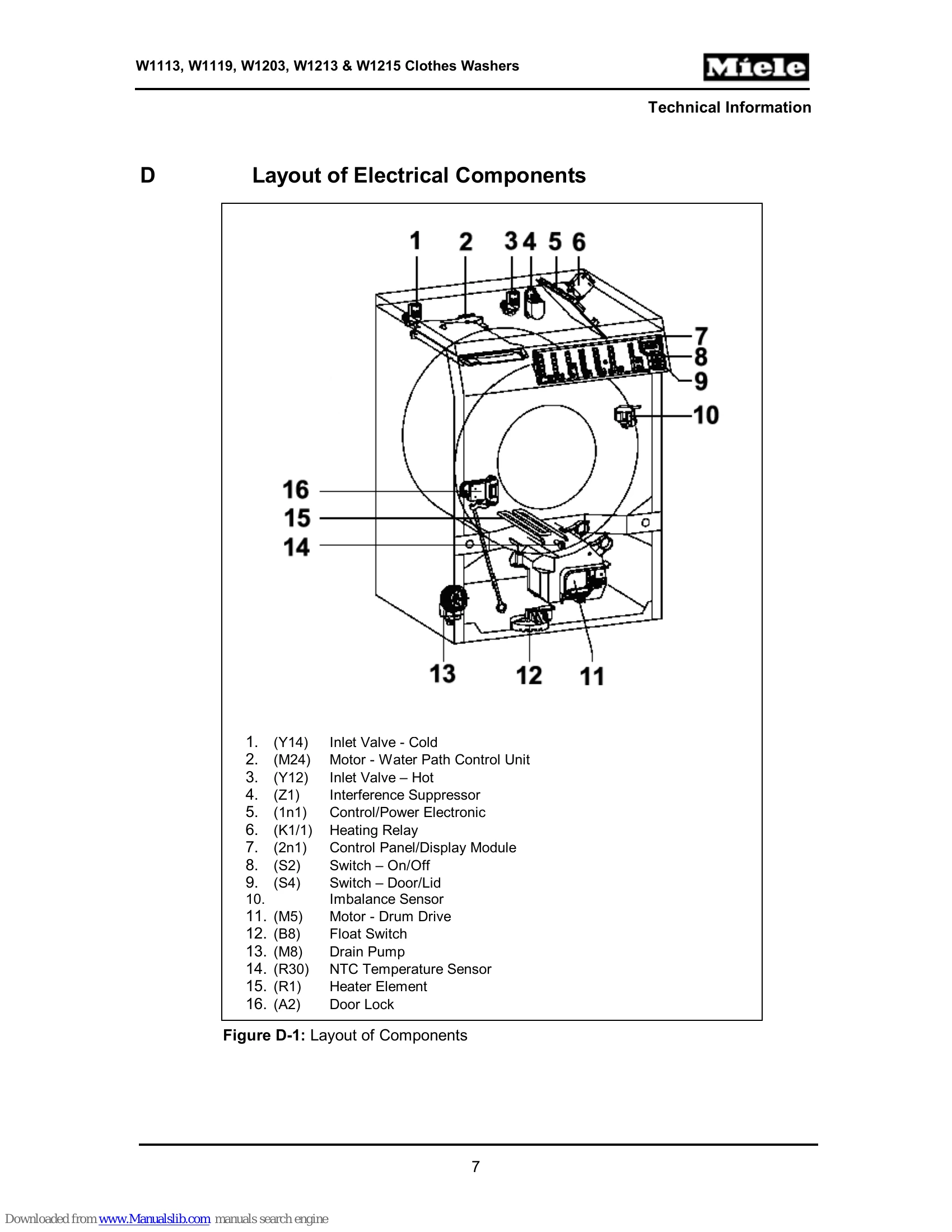

Troubleshooting and error codes
| SERVICE LEVEL | TEST STEP | Function tested/Machine response | Flashing rhythm of Soak LED | Display | |||
| Selection: Press Buzzer button | Selection: Press Start button | Long | Short | Long | Short | ||
| Fault register display and deletion | 2 | Control/Power module (SLT) | |||||
| Cause | Fault code | ||||||
| No fault registered | - | - | F0 | ||||
| NTC temperature sensor short-circuited | F 1 | - | F1 | ||||
| NTC temperature sensor open-circuited | F 2 | - | F2 | ||||
| Water intake fault | F 10 | 1 | - | ||||
| Drainage fault | F 11 | 1 | 1 | ||||
| Fault register display and deletion | 2 | Water intake fault – Hot water | F 15 | 1 | 5 | ||
| Excess foam | F 16 | 1 | 6 | ||||
| Heating fault | F 20 | 2 | - | ||||
| EEPROM fault, data fault | F 41 | 4 | 1 | ||||
| Control/power module (SLT) and control panel/display module (BAE) incompatible | F 43 | 4 | 3 | ||||
| Control/power module (SLT) – Control panel/display module (BAE) interface fault | F 47 | 4 | 7 | ||||
| Fault register display and deletion | 2 | Pressure sensor fault | F 51 | 5 | 1 | ||
| Tachogenerator fault (speed sensor) | F 53 | 5 | 3 | ||||
| Final spin < 400 rpm | F 56 | 5 | 6 | ||||
| Undefined fault | F 62 | 6 | 2 | ||||
| Water path control unit fault | F 63 | 6 | 3 | ||||
| Drum Lamp not installed / not installed correctly. | F 65 | 6 | 5 | ||||
| Not used | Not active | - | - | ||||
| **Component Test | 3 | Water path control unit position 1 (only if fitted) | Water intake via door glass for 10 seconds | - | 1 | ||
| Solenoid valve Y1 or Y14 / Y40 with water path control unit, heating, analog pressure sensor | Water intake via compartment I, until level 1. Then heats to 35°C. | - | 2 | ||||
| Solenoid valve Y 2 or Y14 / Y40 with water path control unit, analog pressure sensor | Water intake via compartment II, until level 2. | - | 3 | ||||
| Solenoid valves Y1 and Y3 or Y14 / Y40 WPS with water path control unit, analog pressure sensor | Water intake via compartment III (fabric conditioner), until level 3. | - | 4 | ||||
| Drain Pump | Drainage | - | 5 | ||||
| Wash drive | Drum rotation with reversing action | - | 6 | ||||
| Component Test | 3 | Drainage and spin drive | Drainage and spinning. Spin speed is controlled via the position of the spin speed selector. | - | 7 | U7 | |
| Solenoid valve Y 12 / 2Y40 (hot water, optional) | Water intake via compartment II until level III is reached | - | 8 | ||||
| Buzzer | Continuous signal | - | 9 | ||||
| Display and LED check | Each individual segment of the digital display and the LEDs flash at the same time | - | - | ||||
| Sensor / Switch Test (select the desired position using the START button) | 1 - Door Switch Test | Buzzer ON = Door Closed Buzzer OFF = Door Open | - | 1 | |||
| 2 - Float Switch Test | Buzzer ON = Not Actuated (normal) Buzzer OFF = Actuated (water present) | - | 2 | ||||
| Operating hours counter display | 5 | Long flashing pulses for thousands, short flashing pulses for hundreds | Example: 12 x long + 6 x short = 12000 h + 600 h = 12600 h | X for X000 h | Y for Y00 h | - | |
