Brand: Miele
Category: Cooktop
Document Type: Manual
Language: EN
Manual for KM 7564 FR
Uploaded: Nov. 21, 2025, 7:09 p.m.
Warranty Information
Refer to the warranty card or contact Miele for specific warranty details.

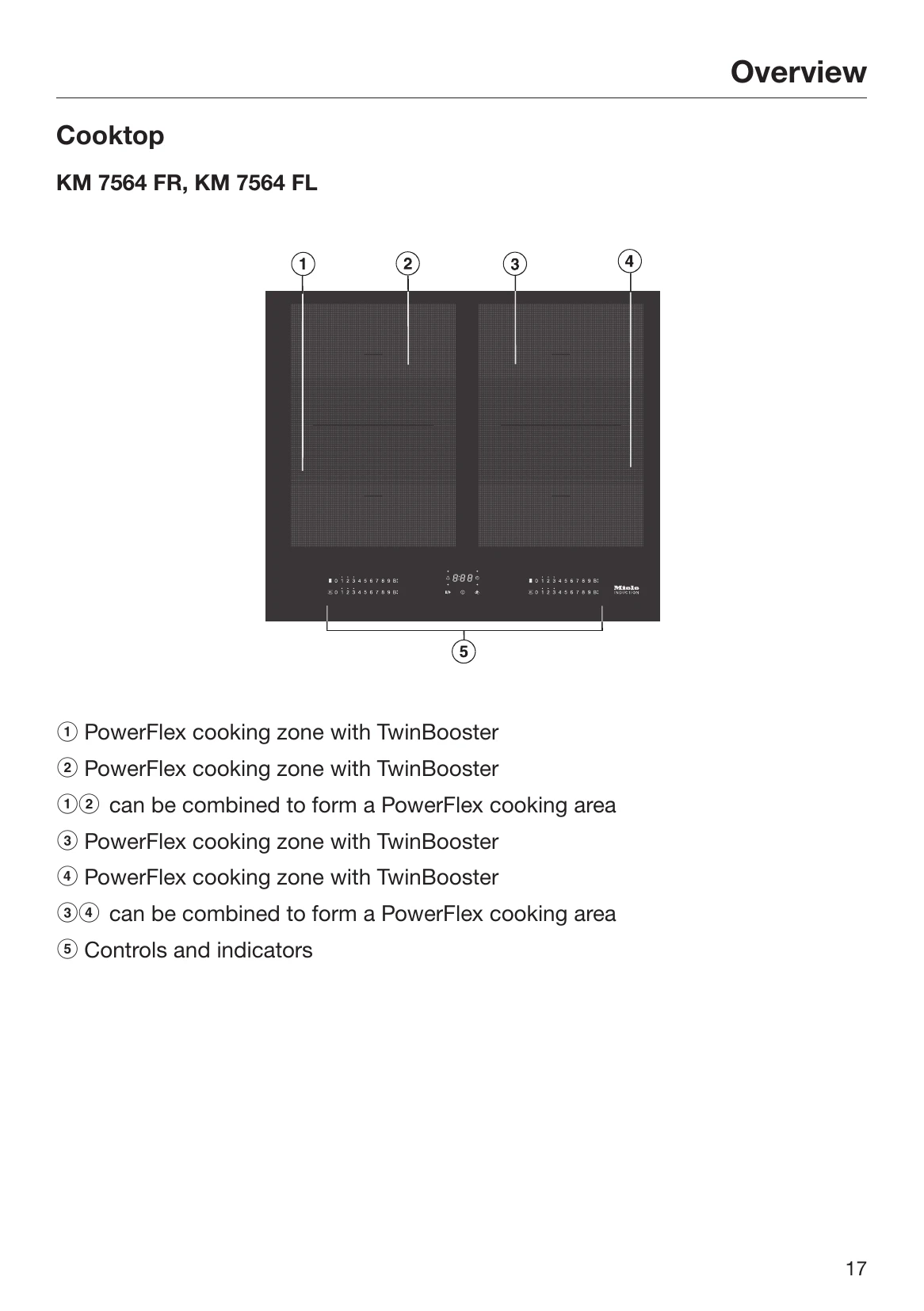

Cooktop Operation Summary
Basic Operation:
- Switching On/Off: Use the sensor control (1) to switch the cooktop on and off.
- Cooking Zones: Select a cooking zone by touching its numerical keybank (6).
- Setting Power Level: Use the numerical keybank (6) to set the desired power level from 1 to 9.
- Booster Function: Activate the Booster function (11) for maximum power for a short period.
- Keeping Warm: Use the Keeping warm function (5) to maintain food temperature.
- Timer: Set the minute minder (8) for timed cooking or automatic switch-off of a cooking zone (7).
Safety Features:
- Residual Heat Indicator (10): Warns if a cooking zone is still hot.
- Wipe Protection (3): Temporarily locks the controls to allow cleaning.
- System Lock/Safety Lock (LOC): Prevents accidental activation.
- Automatic Switch-off (9): The cooktop switches off automatically if a cooking zone is left on for too long without user interaction.
Troubleshooting and error codes
| Fault / Display | Possible Cause | Remedy |
|---|---|---|
| F | Electronics fault | Call Miele Service. |
| U | Power supply problem | Check mains connection. Reset circuit breaker. |
| dE | Demonstration mode activated | Switch cooktop off and on again. Refer to "Demonstration mode" in the manual. |
| Pan not recognised | Incorrect pan or pan not centred | Use a suitable pan. Place pan in the centre of the cooking zone. |
| Cooktop not heating | Safety switch-off activated / No power | Check power supply. Reset circuit breaker. Ensure no safety interlocks are active. |
