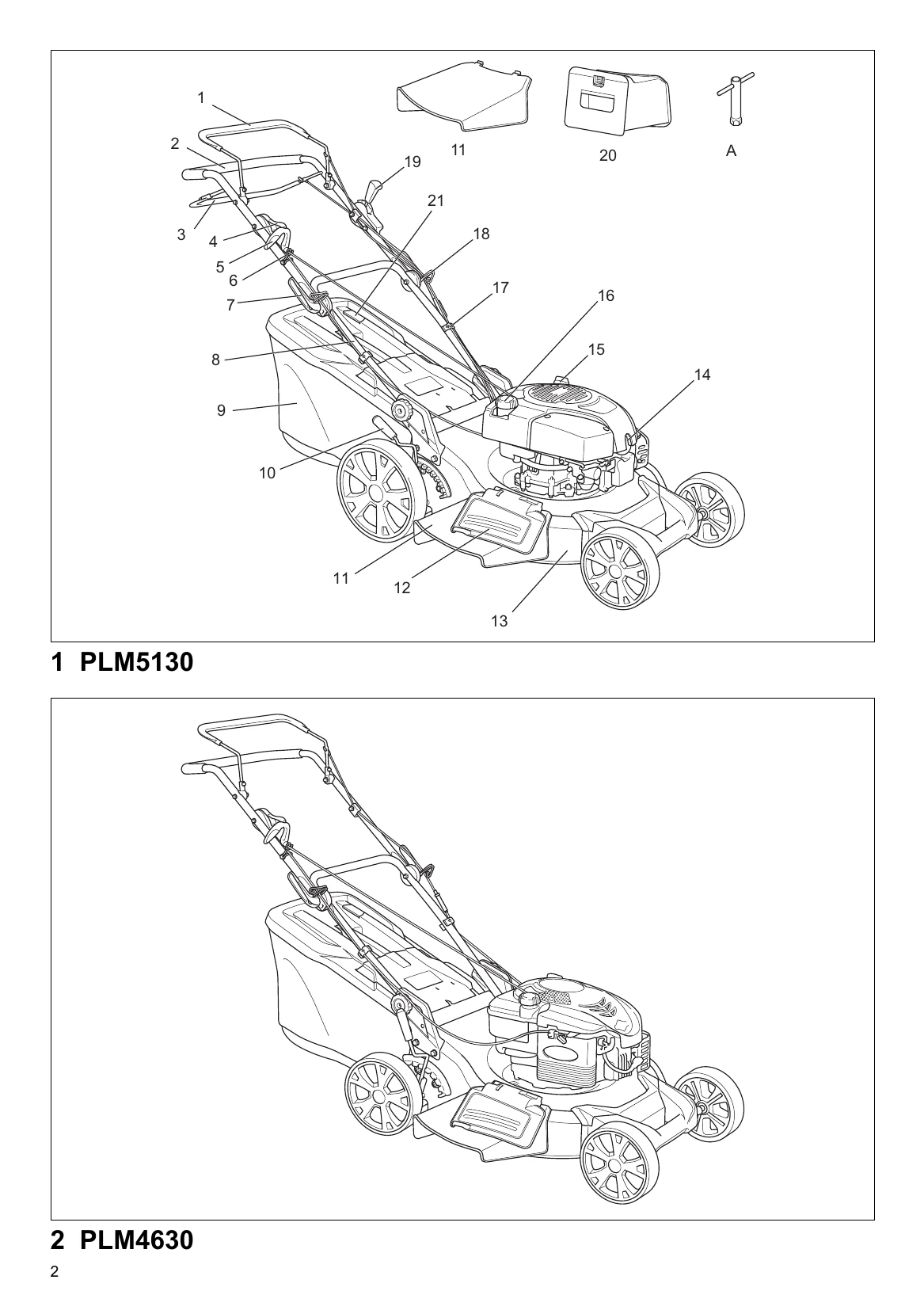

Starting Operation:

\n
    \n
  • Retrofitting for mulching mower: Raise rear cover, remove grass catcher. Push mulching wedge into deck and lock. Lower rear cover. Lift sideward flap and remove side discharge channel.
    • \n
  • Resetting for side-discharge mowing: Lift rear cover, remove grass catcher. Mount mulching wedge. Lift sideward flap for side discharge. Mount side discharge channel. Lower sideward flap.
    • \n
  • Mowing with the grass catcher: Remove mulching wedge and discharge channel. Mount grass catcher.
    • \n
  • To Start Engine and Engage Blade: Connect spark plug wire. For cold start, move choke lever to \"\". For warm start, move to \"↔\". Grasp brake control handle and pull starter handle rapidly. Release brake to stop.
    • \n
  • Operation Procedures: Tightly hold the brake handle with both hands.
    • \n
  • To Stop Engine: Release the brake control handle.
    • \n
  • Connection for Auto Move (PLM4631): Grip self-drive control handle to move forward. Release to stop.
    • \n
  • Connection for Auto Move (PLM4632, PLM5130): Release self-drive handle, adjust speed ( "" for slowest, \"↔\" for fastest), then grasp handle to mow.
    • \n
  • Best Results When Mowing: Clear lawn of debris, do not cut wet grass, cut no more than 1/3 of grass length, use full throttle, clean deck underside.
    • \n
  • Grass Catcher: Check level indicator. Empty when full.
    • \n
  • Deck Cleaning: Clean underside after each use.
    • \n
  • Height Adjustment: Stop engine, disconnect spark plug. Move lever to desired height position (1-8).
    • \n
\n

Troubleshooting and error codes

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Engine does not start. Throttle choke not in the correct position for the prevailing conditions. Move throttle choke to correct position.
Fuel tank is empty. Fill tank with fuel: refer to ENGINE OWNERS MANUAL.
Air cleaner element is dirty. Clean air cleaner element: refer to ENGINE OWNERS MANUAL.
Spark plug loose. Tighten spark plug to 25-30 Nm.
Spark plug wire loose or disconnected from plug. Install spark plug wire on spark plug.
Spark plug gap is incorrect. Set gap between electrodes at 0.7 to 0.8 mm.
Spark plug is defective. Install new, correctly gapped plug: refer to ENGINE OWNERS MANUAL.
Carburetor is flooded with fuel. Remove air cleaner element and pull starter rope continuously until carburetor clears itself and install air cleaner element.
Faulty ignition module. Contact the service agent.
Engine difficult to start or loses power. Dirt, water, or stale fuel tank. Drain fuel and clean tank. Fill tank with clean, fresh fuel.
Vent hole in fuel tank cap is plugged. Clean or replace fuel tank cap.
Air cleaner element is dirty. Clean air cleaner element.
Engine operates erratically. Spark plug is defective. Install new, correctly gapped plug: refer to ENGINE OWNERS MANUAL.
Spark plug gap is incorrect. Set gap between electrodes at 0.7 to 0.8 mm.
Air cleaner element is dirty. Clean air cleaner element: refer to ENGINE OWNERS MANUAL.
Engine idles poorly. Air cleaner element is dirty. Clean air cleaner element: refer to ENGINE OWNERS MANUAL.
Engine skips at high speed. Air slots in engine shroud are blocked. Remove debris from slots.
Cooling fins and air passages under engine blower housing are blocked. Remove debris from cooling fins and air passages.
Engine overheats. Gap between electrodes of spark plug is too close. Set gap between electrodes at 0.7 to 0.8 mm.
Cooling air flow is restricted. Remove any debris from slots in shroud, blower housing, air passages.
Incorrect spark plug. For PLM4630/PLM4631: Install RJ19LMC spark plug and cooling fins on engine. For PLM4632/PLM5130: Install QC12YC spark plug and cooling fins on engine.
Mower vibrates abnormally. Cutting assembly is loose. Tighten blade.
Cutting assembly is unbalanced. Balance blade.
