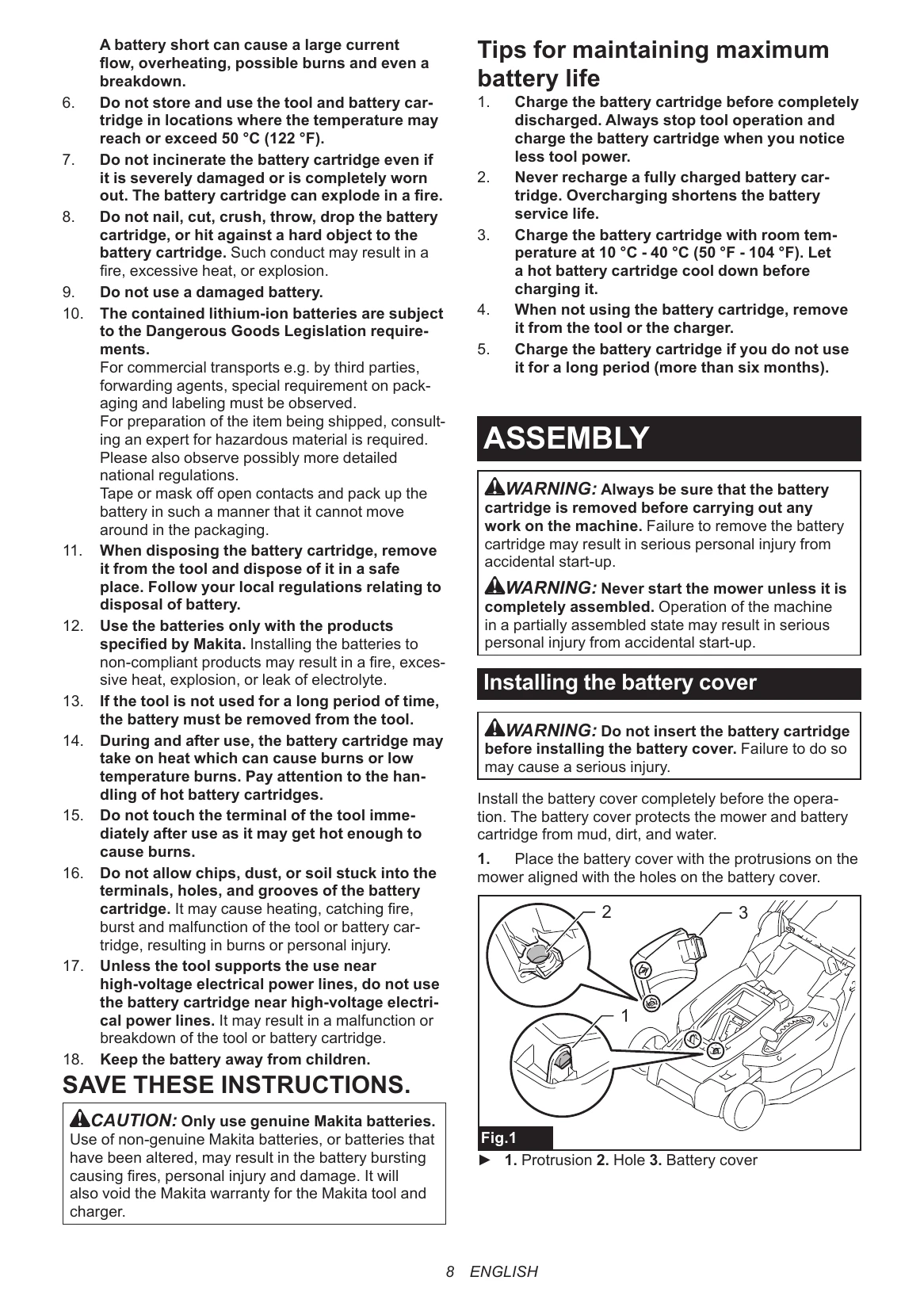

Manual for LM003G

Manual for LM003G

Brand: Makita

Category: Power Tool

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:31 p.m.

Manual Publish Date: 2023-06-14

Warranty Information

Refer to the manual for specific warranty details. Contact Makita Authorized Service Centers for repairs.

Mowing:

  • Clear the mowing area of debris and weeds.
  • Always wear safety goggles.
  • Ensure the machine is switched off and battery removed before checking for foreign objects.
  • Use for lawn mowing only.
  • Firmly hold the handle with both hands.
  • Mow in strips, overlapping by half to one third.
  • Change mowing direction each time.
  • Periodically check and empty the grass basket.
  • For long grass, mow in stages over several days.

Emptying the grass basket:

  • Release switch lever, remove battery.
  • Open rear cover and remove basket.
  • Empty the grass basket.

Maintenance:

  • Ensure battery is removed before maintenance.
  • Wear gloves and safety goggles.
  • Clean clippings from the mower deck.
  • Check bolts and nuts for tightness.

Troubleshooting and error codes

State of abnormalityProbable cause (malfunction)Remedy
Mower does not start. Battery cartridge is not installed. Install charged battery cartridge.
Battery problem (under voltage) Recharge the battery cartridge. If recharging is not effective, replace battery cartridge.
Motor stops running after a little use. Battery's charge level is low. Recharge the battery cartridge. If recharging is not effective, replace battery cartridge.
Motor does not reach maximum RPM. Cutting height is too low. Increase the cutting height.
Battery cartridge is installed improperly. Install the battery cartridge as described in this manual.
Battery power is dropping. Recharge the battery cartridge. If recharging is not effective, replace battery cartridge.
Mower blade does not rotate: ⇨stop the mower immediately! The drive system does not work correctly. Ask your local authorized service center for repair.
Foreign object such as a branch is jammed near the blade. Remove the foreign object.
Abnormal vibration: ⇨stop the mower immediately! The drive system does not work correctly. Ask your local authorized service center for repair.
Blade is imbalanced, excessively or unevenly worn. Replace the blade.
