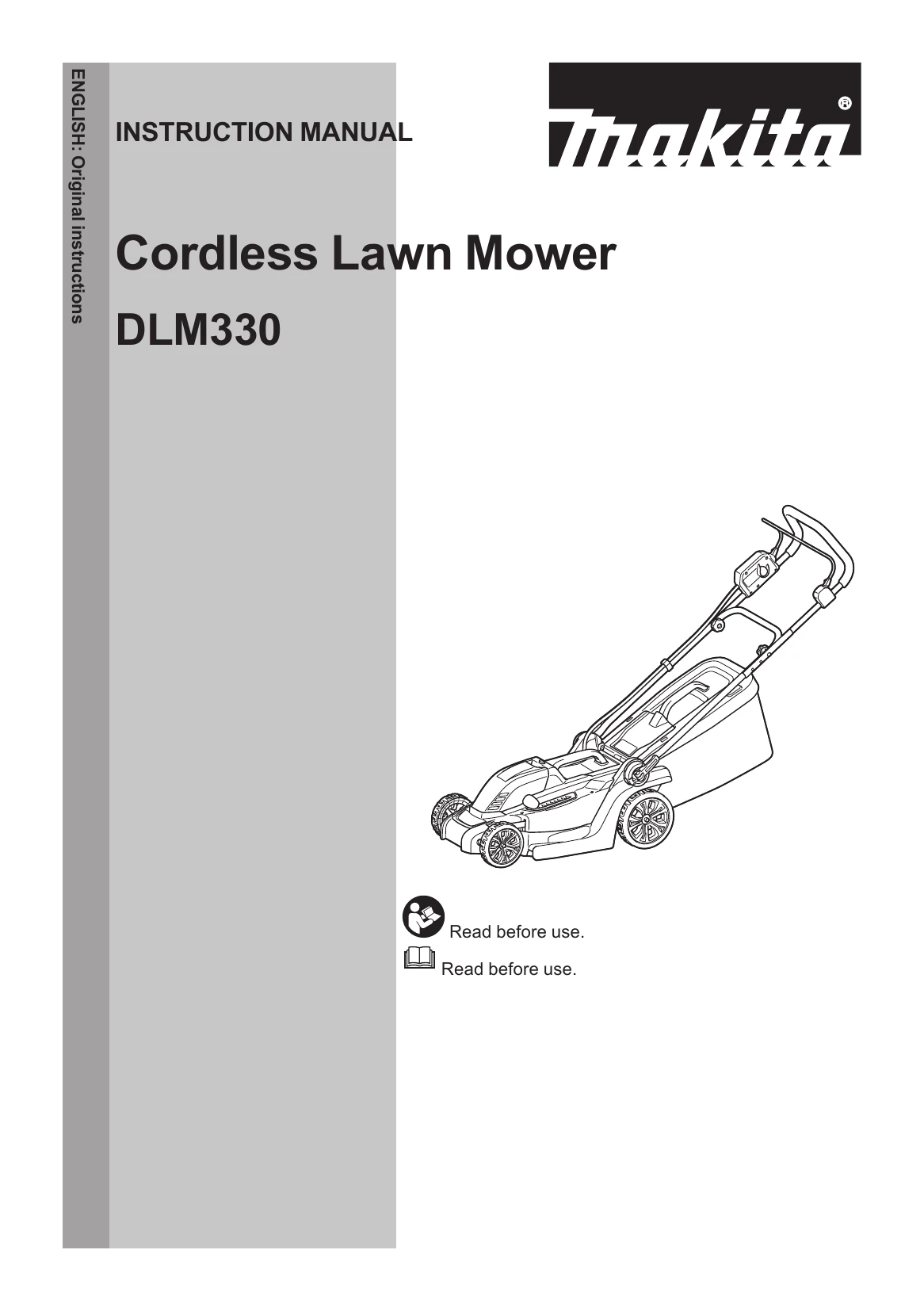

Manual for DLM330
Uploaded: Nov. 21, 2025, 8:09 p.m.
Warranty Information
Contact Makita Authorized or Factory Service Centers for repairs and maintenance using genuine Makita replacement parts.
Mowing: Before mowing, clear the area of obstacles. Always wear safety goggles and stout shoes. If grass or foreign objects block the mower, remove the lock key and battery cartridge, then wear gloves to clear the obstruction. This machine is for mowing lawns only and should not be used for weeds. Hold the handle firmly with both hands and walk at a speed of 2 to 4 seconds per meter. For long grass, mow in stages over several days. Empty the grass basket when it is full to prevent motor strain.
Adjusting Handle Height: Loosen thumb nuts, remove bolts, adjust to one of three levels, reinsert bolts, and tighten thumb nuts.
Using Mulching Plug: Remove the grass basket. Ensure grass length after cutting is 30 mm or more, and the cut length is 15 mm or less.
Troubleshooting and error codes
| State of abnormality | Probable cause (malfunction) | Remedy |
|---|---|---|
| Mower does not start. | Battery cartridge is not installed. | Install charged battery cartridge. |
| Battery problem (under voltage) | Recharge the battery cartridge. If recharging is not effective, replace battery cartridge. | |
| The lock key is not inserted. | Insert the lock key. | |
| Motor stops running after a little use. | Battery's charge level is low. | Recharge the battery cartridge. If recharging is not effective, replace battery cartridge. |
| Cutting height is too low. | Increase the cutting height. | |
| Motor does not reach maximum RPM. | Battery cartridge is installed improperly. | Install the battery cartridge as described in this manual. |
| Battery power is dropping. | Recharge the battery cartridge. If recharging is not effective, replace battery cartridge. | |
| Mower blade does not rotate: ⇨stop the mower immediately! | The drive system does not work correctly. | Ask your local authorized service center for repair. |
| Foreign object such as a branch is jammed near the blade. | Remove the foreign object. | |
| Abnormal vibration: ⇨stop the mower immediately! | The drive system does not work correctly. | Ask your local authorized service center for repair. |
| Blade is imbalanced, excessively or unevenly worn. | Replace the blade. |
