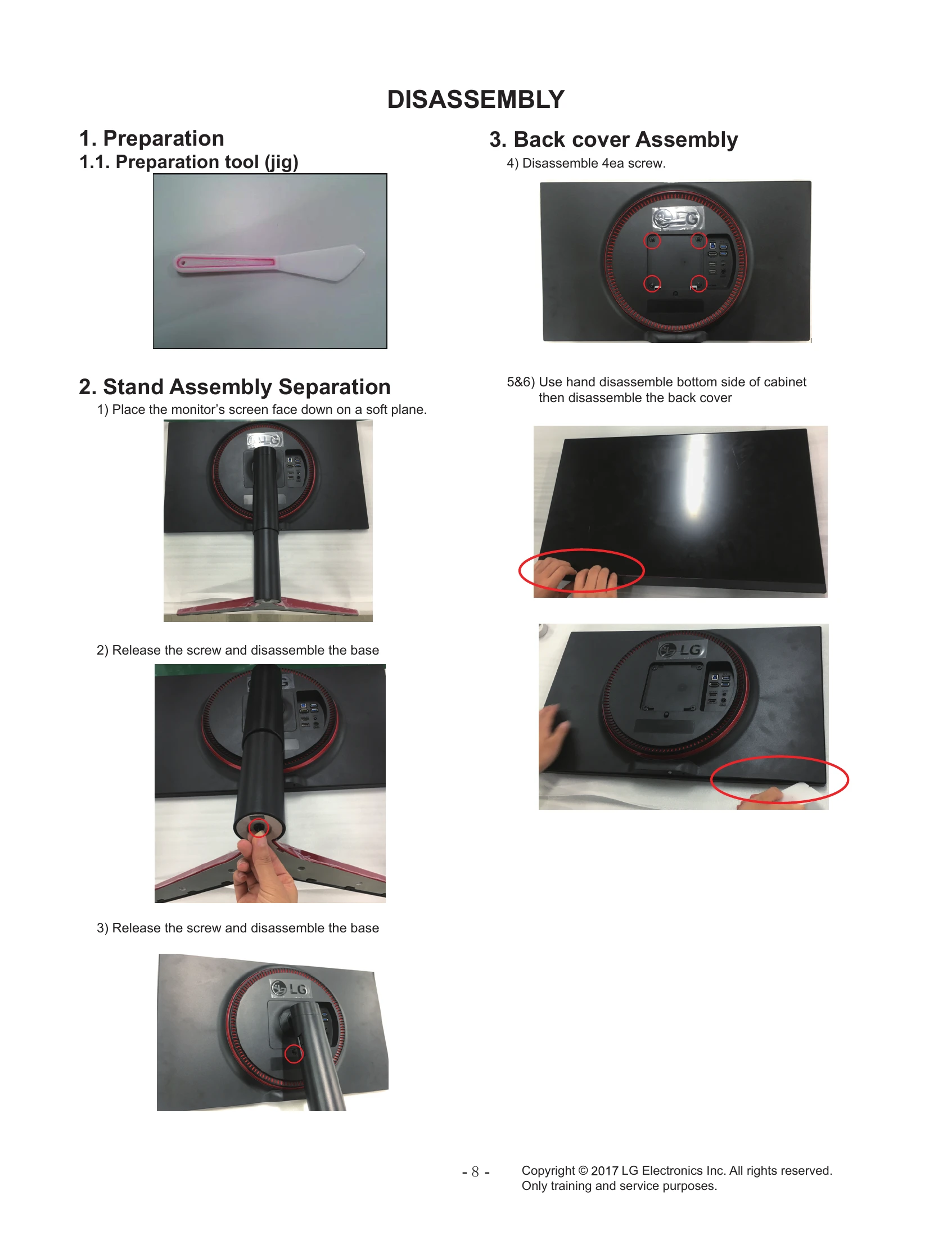

Warranty Information

This manual does not contain specific warranty period information.

Safety Precautions:
  • Always use an isolation transformer when servicing non-isolated chassis.
  • Replace fuses with the specified type.
  • Keep wires away from high voltage or high temperature parts.
  • Perform AC leakage current checks before returning the unit to the customer.
  • Specific checks for "Leakage Current Cold Check" and "Leakage Current Hot Check" are detailed, including test circuits and acceptable limits.
General Guidance:
  • Technicians should be protected from electrical shocks.
  • Components can be protected from accidental shorts.
  • High wattage resistors need to be kept a certain distance from the PCB.
Troubleshooting Guides:
  • No Power: Steps involve checking voltage levels at various points (C701, IC701/702, IC703, IC705), checking the clock, and replacing components like IC701, 702, 703, 705, X100, or IC107.
  • No Screen on: Checks include backlight status, panel power, eDP AUX, FFC cable, WLED_ENABLE signal, LED driver output, and potential replacement of IC700, P201, IC601/602, IC300/303, T-Con board, or the module itself.
  • No Video – HDMI: Involves checking input signal format, HDMI cable, connector JK102, I2C signal (EDID), and AUX signals for IC102/IC103, with options to replace the connector, IC100, IC102, IC103, or the G-SYNC Module.
  • No Video – DP: Similar to HDMI troubleshooting, it checks DP cable, connector JK101, AUX signals for IC101/IC103, with similar replacement options.

Troubleshooting and error codes

Symptom Check Point Action
1. No Power Check C701 Voltage Level (19V) Y: Proceed, N: Replace Adapter
Check IC701, 702 Output Voltage Level (5V) Y: Proceed, N: Replace IC701, 702 & Recheck
Check IC703 Output Voltage Level (3.3V) Y: Proceed, N: Replace IC703 & Recheck
Check IC705 Output Voltage Level (2.5V, 1.2V) Y: Proceed, N: Replace IC705 & Recheck
Check X100 Clock 27MHz Y: Proceed, N: Replace X100
Check Power connector OK? Y: Proceed, N: Replace Adapter
Replace IC107 Flash Memory N/A
2. No Screen on Module Back Light On? Y: Proceed, N: Check WLED_ENABLE High?
Check Panel Power 10V (L700) Y: Proceed, N: Replace IC700 & Recheck
Check IC700 Output 10V Y: Proceed, N: Replace IC700 & Recheck
Check Panel eDP AUX P300 (#9, 10, 36, 37) Y: Proceed, N: Check IC300, IC303 Repair Main B/D
Check FFC Cable for Damage or Open Conductors Y: Proceed, N: Replace FFCable
Check WLED_ENABLE High? (IC601, IC602 27pin) Y: Proceed, N: Check P201 (PIN No.69) Replace G-SYNC Module
Check LED Driver Output (P601, P602 - 1, 2, 5, 6) Y: Proceed, N: Check IC601, IC602 Replace LED Driver IC
Replace T-Con Board or Module N/A
3. No Video – HDMI Check input signal format Is it supported? Y: Proceed, N: Replace the Connector
Check HDMI Cable for Damage or Open Connector Y: Proceed, N: Replace the Connector
Check JK102 for proper connection or Damage Y: Proceed, N: Replace the IC100
Check I2C Signal (EDID) Y: Proceed, N: Replace the IC102
Check IC102 AUX Signal (#J1,H1) Y: Proceed, N: Replace the IC103
Check IC103 AUX Signal (#3,4) Y: Proceed, N: Replace the IC103
Replace the G-SYNC Module N/A
4. No Video – DP Check input signal format Is it supported? Y: Proceed, N: Replace the Connector
Check DP Cable for Damage or Open Connector Y: Proceed, N: Replace the Connector
Check JK101 for proper connection or Damage Y: Proceed, N: Replace the IC101
Check IC101 AUX Signal (#29,30) Y: Proceed, N: Replace the IC103
Check IC103 AUX Signal (#3,4) Y: Replace the G-SYNC Module
