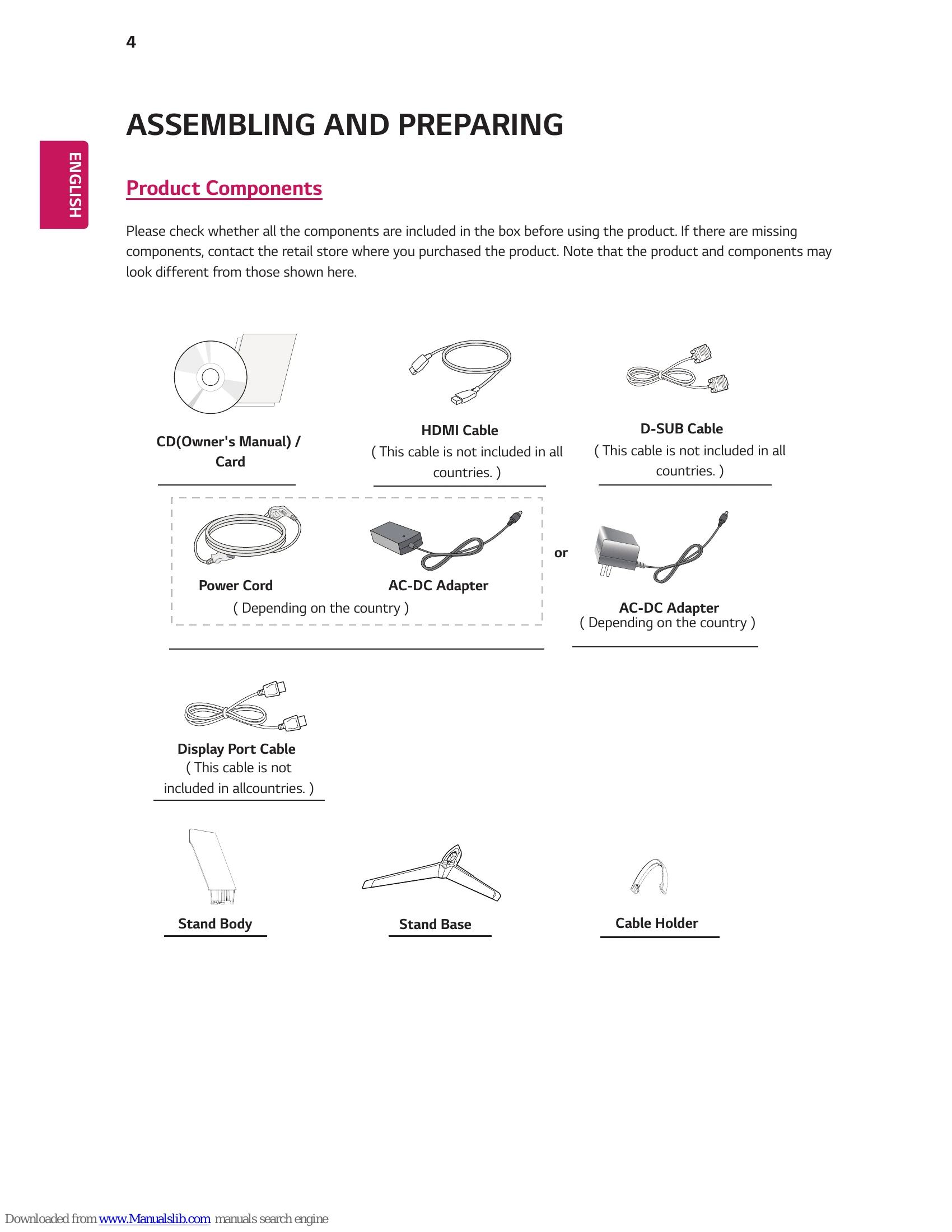

ASSEMBLING AND PREPARING

  • Product Components: Check box contents.
  • Supported Drivers and Software: Install from CD or LG website.
  • Component and Button Description: Familiarize with joystick button functions.
  • Input Connector: Identify available ports (D-SUB, HDMI, DisplayPort).
  • Moving and Lifting the Monitor: Handle with care, avoid touching screen.
  • Setting up the Monitor set: Attach stand base, place on table.

USING THE MONITOR SET

  • Connecting to a PC: Use D-SUB, HDMI, or DisplayPort cables.
  • Connecting to AV Devices: Use HDMI cable.
  • Connecting Peripherals: Connect headphones via headphone port.

CUSTOMIZING SETTINGS

  • Activating the Main Menu: Use joystick button to navigate.
  • Quick Settings: Adjust Brightness, Contrast, Volume, Ratio, SMART ENERGY SAVING.
  • Picture Mode: Select preset modes (Custom, Reader, Photo, Cinema, etc.).
  • Picture Adjust: Fine-tune SUPER RESOLUTION+, Sharpness, Black Level, DFC.
  • Game Adjust: Configure FreeSync, Black Stabilizer, 1ms Motion Blur Reduction, Cross Hair.
  • Color Adjust: Adjust Gamma, Color Temp, Red/Green/Blue, Six Color, Reset.
  • Display: Adjust Horizontal, Vertical, Clock, Phase.
  • General Settings: Language, Power LED, Automatic Standby, Resolution, OSD Lock.
  • Auto Configuration: Optimize display for D-SUB.
  • Reset: Return all settings to default.

TROUBLESHOOTING

  • Address common issues like no image, OSD control problems, incorrect display image, flickering screen, and unrecognized monitor.

SPECIFICATIONS

  • Detailed technical specifications for the monitor.

Troubleshooting and error codes

No image appears
Is the power cord of the display connected? • Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on? • Press the Power button.
Do you see an "Out of Range" message on the screen? • This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen? • After the monitor is on "NO SIGNAL", the monitor goes to DPM mode.
• This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
Can 't you control some functions in OSD?
Can't you select some menu in OSD? • You can unlock the OSD controls at any time by entering the OSD lock menu and changing items to off.
Display image is incorrect
The screen color is mono or abnormal. • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.
• Make sure the video card is properly inserted in the slot.
• Set the color setting higher than 24 bits (true color) at Control Panel Settings.
The screen blinks. • Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver? • Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our website: http://www.lg.com.
• Make sure to check if the video card supports Plug&Play function.
The screen is flickering.
Did you select the recommended resolution? • If the selected resolution is HDMI 1080i 60/50 Hz, the screen may be flickering.
Change the resolution to the recommended resolution 1080P.
