Manual for L2304 Series

Introduction

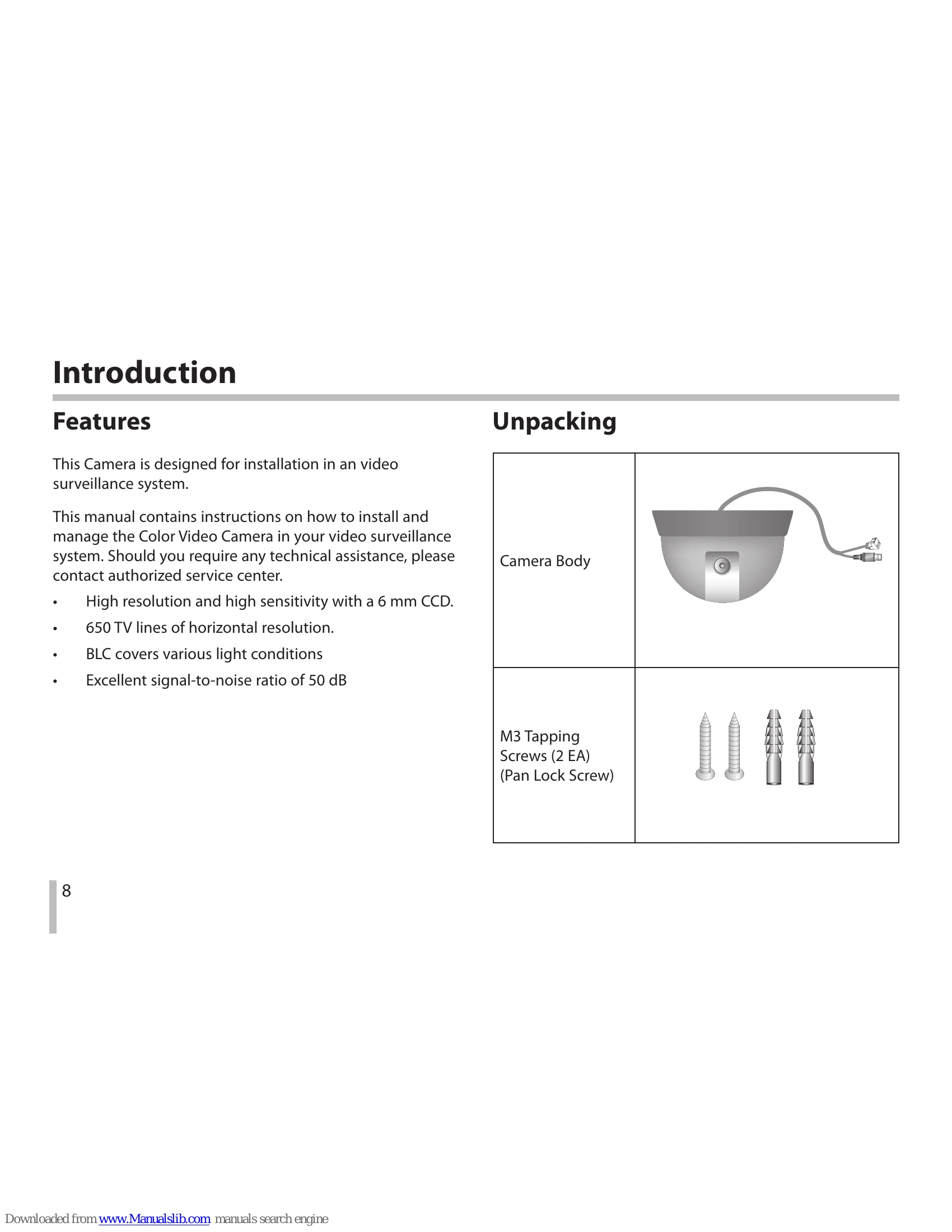

This manual contains instructions on how to install and manage the Color Video Camera in your video surveillance system.

Features

• High resolution and high sensitivity with a 6 mm CCD.
• 650 TV lines of horizontal resolution.
• BLC covers various light conditions
• Excellent signal-to-noise ratio of 50 dB

Connections

Ensure the unit is switched off before installation and connection. A qualified service person should perform hardware installation. Do not expose cables to moisture.

Installation

Follow step-by-step instructions for mounting the camera, including using a template, passing cables, disassembling covers, and attaching components.

Menu Operation

Utilize the on-screen user MENU with the UP, DOWN, LEFT, RIGHT, and SET buttons to configure various camera settings such as Shutter/AGC, White Balance, Backlight, Day/Night, ATR, NR, Motion Detection, Privacy, Picture Adjust, Camera ID, Sync, Language, and Camera Reset.
