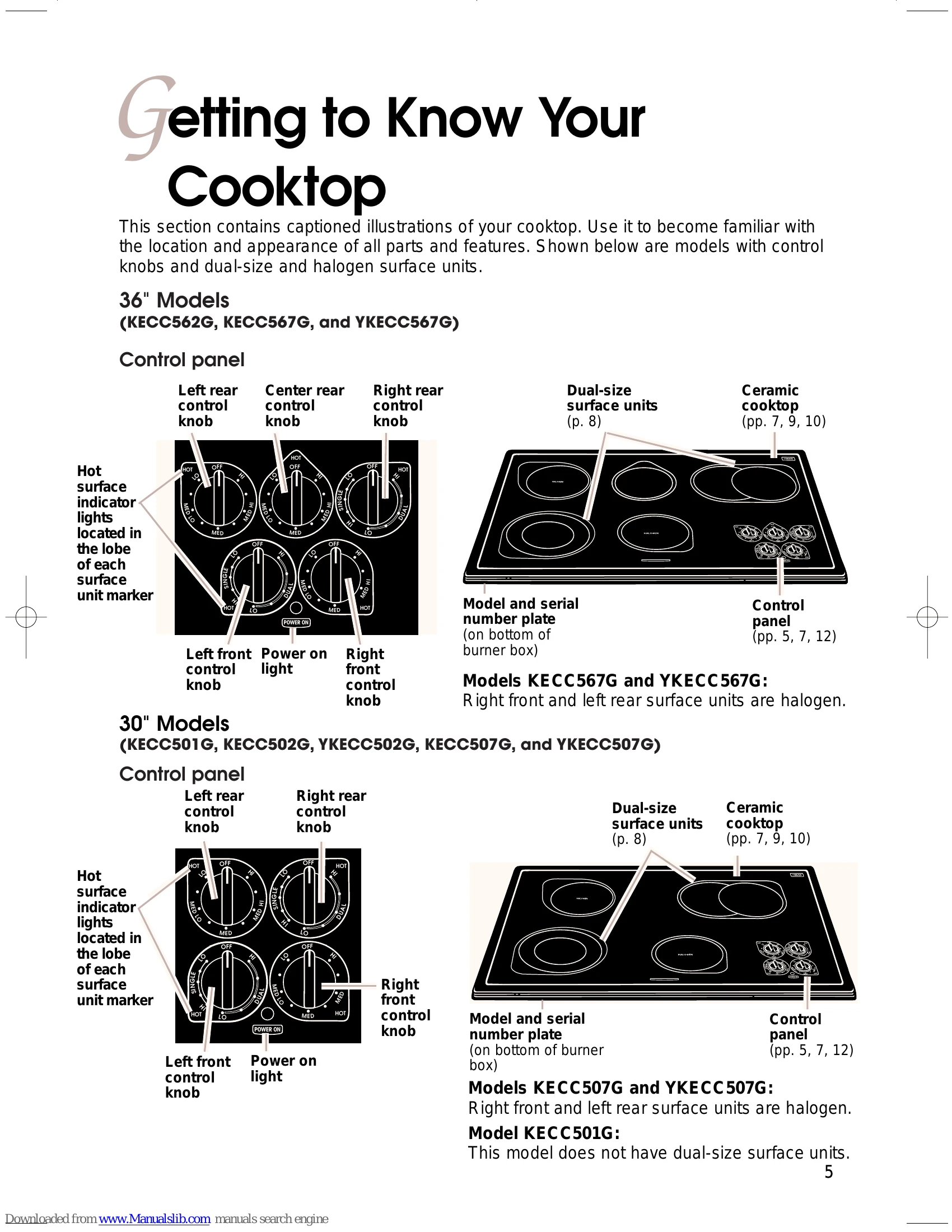

Manual for KECC501G
Uploaded: Nov. 21, 2025, 7:30 p.m.
Manual Publish Date: 1998-07-01
Warranty Information
KitchenAid offers a one-year full warranty and a four-year limited warranty on ceramic cooktops.
Using the Surface Units:
- Push in control knobs before turning to a setting, then set between HI and OFF.
- Touch ON/OFF to turn heating elements on. LO and HI lights will blink. Touch arrow to HI for high power or LO for low power.
- To choose intermediate power levels, touch and hold the arrow pointing to HI, or tap it, to decrease power. Follow the same procedure from LO to increase power.
- Touch ON/OFF to turn elements off individually, or ALL OFF to turn all off at once.
- Electronic touch models have a cooling fan that may run after the cooktop is turned off.
Hot Surface Indicator Lights:
- Lights glow when surface units are hot and remain on until they are cool enough to touch.
Dual-Size Surface Unit:
- Use right rear and left front units as small or large elements.
- Push in knob and turn to "SINGLE" for small element, or "DUAL" for large element.
Ceramic Glass Cooktop:
- Surface cooking area will glow red when element is on.
- Do not cook directly on the cooktop.
- Lift pots and pans onto and off the cooktop.
- Do not use as a cutting board.
Troubleshooting and error codes
| PROBLEM | POSSIBLE CAUSE | SOLUTION |
|---|---|---|
| Nothing will operate | The unit is not wired into a live circuit with proper voltage. | Wire the unit into a live circuit with proper voltage. (See Installation Instructions.) |
| A household fuse has blown or a circuit breaker has tripped. | Replace household fuse or reset circuit breaker. | |
| The surface cooking areas will not operate | A household fuse has blown or a circuit breaker has tripped. | Replace household fuse or reset circuit breaker. |
| Control knob(s) will not turn | You are not pushing in before turning. | Push control knobs in before turning to a setting. |
| Touch controls will not respond | You are not following the correct sequence to operate the electronic touch control. | See Electronic touch controls in the "Using Your Cooktop" section. |
| You are not touching the electronic control in the correct location. | ||
| Cooking results are not what you expected | The cooktop is not level. | Level cooktop. (See Installation Instructions.) |
| The pan used is not the correct type or size. | Refer to a reliable cookbook for recommended pan type and size. | |
| Cookware does not fit the surface cooking area being used. | Pan should be the same size or slightly larger than surface cooking area being used. |
