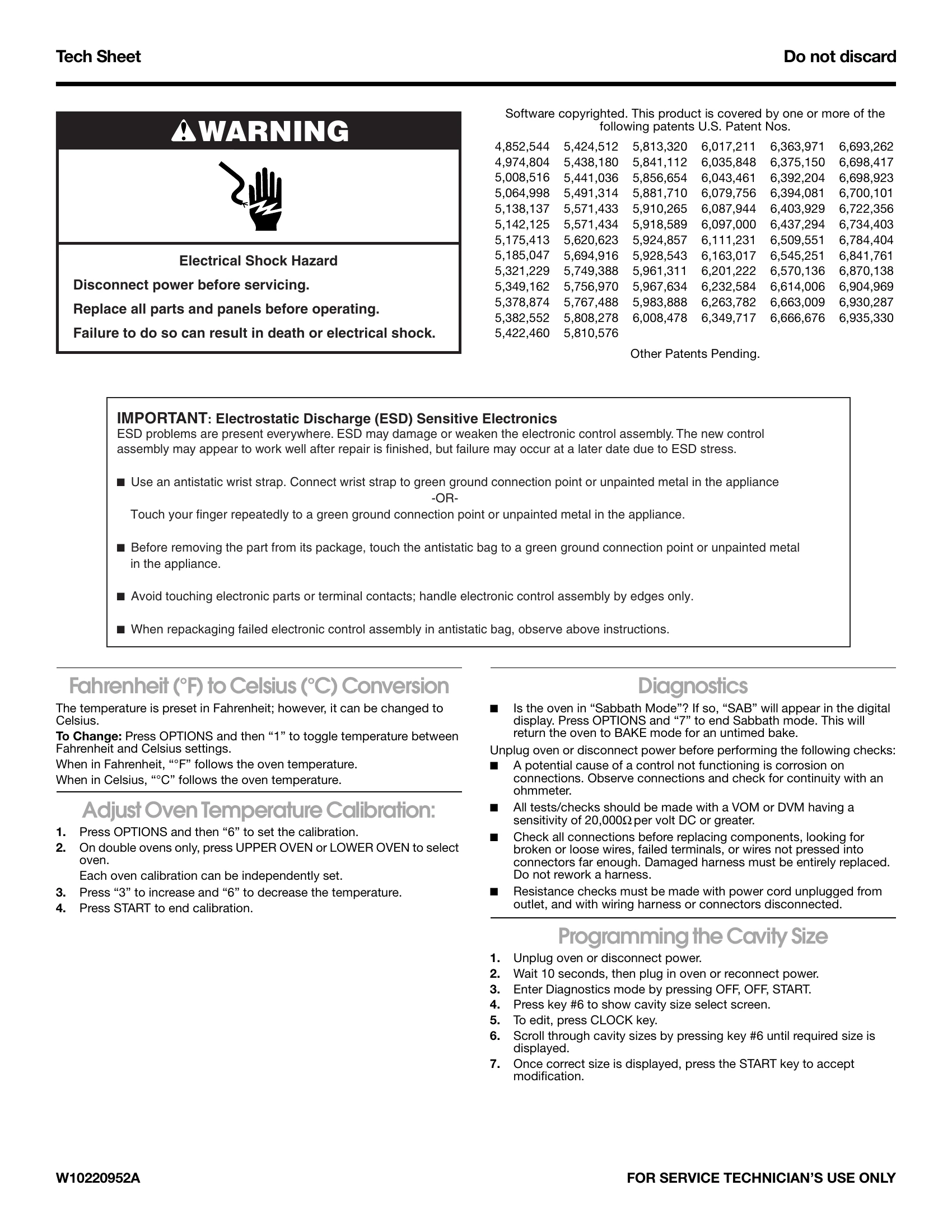

Parts/Service for KEBS107SSS04

Parts/Service for KEBS107SSS04

Brand: KitchenAid

Category: Convection Oven

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 8:14 p.m.

Warranty Information

Refer to the manufacturer for specific warranty details as it is not explicitly stated in this document.

Oven Operation and Features

  • Temperature Settings: The oven temperature can be set in Fahrenheit or Celsius. Use the OPTIONS and "1" keys to toggle between modes.
  • Oven Calibration: Adjust the oven temperature calibration by pressing OPTIONS and "6", then use "3" to increase or "6" to decrease the temperature. Press START to save.
  • Diagnostics Mode: Enter diagnostics by pressing OFF, OFF, START. Use key "6" to navigate through screens and "CLOCK" to edit.
  • Cavity Size Programming: After a power interruption, enter diagnostics and use key "6" to select and START to save the correct cavity size.
  • Sabbath Mode: The oven can enter "Sabbath Mode" indicated by "SAB" on the display. Press OPTIONS and "7" to exit this mode.

Troubleshooting and error codes

FAILURE (Leftmost 2 Clock Digits) ERROR (Rightmost 2 Clock Digits) LIKELY FAILURE CONDITION SUGGESTED CORRECTIVE ACTION PROCEDURE
F0 Internal E0 No error(s) found (Good) No corrective action required
F1 Internal E1 Replace oven appliance manager PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Unplug oven or disconnect power. 2. Replace the user interface. 3. Replace all parts and panels before operating. 4. Plug in oven or reconnect power. 5. Verify operation is normal. Go to Step 1 of "To Enter Diagnostic Mode" and complete checks.
F1 Internal E0 Replace oven user interface PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Unplug oven or disconnect power. 2. Check wiring to both switches on the door latch between the latch and the control. If wires to either switch contact ground, they can cause this error. 3. Check wiring to oven temperature sensor(s). If OK, check resistance values for oven temperature sensor(s) to ensure they are in the correct range. Sensors having resistance values out of range will cause this error. 4. Check oven door switch. If there is no error, go to Step 5. 5. Replace oven appliance manager. 6. Replace all parts and panels before operating. 7. Plug in oven or reconnect power.
F2 Keypad E0 Keypad disconnected PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Unplug oven or disconnect power. 2. Check that the keypad is firmly connected. 3. Replace all parts and panels before operating. 4. Plug in oven or reconnect power. 5. Observe for longer than 1 minute. 6. If error remains, then go to Step 7. 7. Unplug oven or disconnect power. 8. Replace keypad. 9. Replace all parts and panels before operating. 10. Plug in oven or reconnect power. 11. Observe for longer than 1 minute. 12. If error remains, then go to Step 13. 13. Unplug oven or disconnect power. 14. Replace cable between user interface and keypad. 15. Replace all parts and panels before operating. 16. Plug in oven or reconnect power. 17. Observe for longer than 1 minute. 18. If error remains, go to Step 19. 19. Unplug oven or disconnect power. 20. Replace oven user interface. 21. Replace all parts and panels before operating. 22. Plug in oven or reconnect power. Wait for 1 minute. 23. Verify operation is normal. Enter into Diagnostics mode by pressing OFF > OFF > START and complete checks.
F2 Keypad E1 Stuck key/Shorted key PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Unplug oven or disconnect power. 2. Check that the keypad is firmly connected. 3. Replace all parts and panels before operating. 4. Plug in oven or reconnect power. 5. Observe for longer than 1 minute. 6. If error remains, then go to Step 7. 7. Unplug oven or disconnect power. 8. Replace keypad. 9. Replace all parts and panels before operating. 10. Plug in oven or reconnect power. 11. Observe for longer than 1 minute. 12. If error remains, then go to Step 13. 13. Unplug oven or disconnect power. 14. Replace cable between user interface and keypad. 15. Replace all parts and panels before operating. 16. Plug in oven or reconnect power. 17. Observe for longer than 1 minute. 18. If error remains, go to Step 19. 19. Unplug oven or disconnect power. 20. Replace oven user interface. 21. Replace all parts and panels before operating. 22. Plug in oven or reconnect power. Wait for 1 minute. 23. Verify operation is normal. Enter into Diagnostics mode by pressing OFF > OFF > START and complete checks.
F3 Sensors E0 Main sensor open or shorted PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Verify in Diagnostics temperature reading on sensor. 2. If dashes appear in main temperature display, proceed to Step 3. 3. Unplug oven or disconnect power. 4. Remove back panels and ensure the indicated temperature sensor is plugged in properly and fully inserted. If it is not, plug it in to the connector and go to Step 11. If it is plugged in, go to Step 5. 5. Check connector P2 on the appliance manager. Make sure it is plugged in and fully seated. If it is not, make the proper connection and go to Step 11. If it is already properly connected, go to Step 6. 6. Visually inspect the wires between P2 on the appliance manager and the indicated temperature sensor. Make sure the wires are not cut or pinched. If the wires appear to be intact, unplug the P2 connector on the appliance manager. Go to Step 7. 7. Measure indicated temperature sensor resistance value (measure between appropriate P2 connector pins). For the following sensors, the resistance value should read: Main Oven Sensor - Between 931 and 2869 Ω (Approx. 1080Ω at room temp.) Meat Probe Sensor - Between 1,300 and 103,000 Ω (Approx. 59,000 at room temp.) (Insert meat probe into meat probe jack located inside the oven cavity prior to reading resistance.) Measure any P2 connector pin to chassis. Resistance value should read "open." If it does not, replace sensor harness. Repeat Step 7. If the indicated temperature sensor does not meet these requirements, go to Step 8. If the temperature sensor does meet the requirements, go to Step 11. 8. For MAIN sensor: Replace appropriate temperature sensor. Repeat Step 7. If the requirements are not met, replace sensor harness. Repeat Step 7. If the requirements are still not met, go to Step 9. For MEAT PROBE sensor: Replace meat probe sensor. Repeat Step 7. If the requirements are not met, replace sensor harness. Repeat Step 7. If the requirements are still not met, replace the meat probe jack. Repeat Step 7. If the meat probe sensor is still not meeting the requirements, go to Step 9. 9. Replace the appliance manager. Ensure all connectors are properly seated. 10. Ensure all wiring connections are made. 11. Replace all parts and panels before operating. 12. Plug in oven or reconnect power. 13. Observe for longer than 1 minute. 14. Enter into Diagnostics mode by pressing OFF > OFF > START and read sensor for main oven sensor and meat probe on immediate display.
F3 Sensors E3 Meat probe shorted PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Verify in Diagnostics temperature reading on sensor. 2. If dashes appear in main temperature display, proceed to Step 3. 3. Unplug oven or disconnect power. 4. Remove back panels and ensure the indicated temperature sensor is plugged in properly and fully inserted. If it is not, plug it in to the connector and go to Step 11. If it is plugged in, go to Step 5. 5. Check connector P2 on the appliance manager. Make sure it is plugged in and fully seated. If it is not, make the proper connection and go to Step 11. If it is already properly connected, go to Step 6. 6. Visually inspect the wires between P2 on the appliance manager and the indicated temperature sensor. Make sure the wires are not cut or pinched. If the wires appear to be intact, unplug the P2 connector on the appliance manager. Go to Step 7. 7. Measure indicated temperature sensor resistance value (measure between appropriate P2 connector pins). For the following sensors, the resistance value should read: Main Oven Sensor - Between 931 and 2869 Ω (Approx. 1080Ω at room temp.) Meat Probe Sensor - Between 1,300 and 103,000 Ω (Approx. 59,000 at room temp.) (Insert meat probe into meat probe jack located inside the oven cavity prior to reading resistance.) Measure any P2 connector pin to chassis. Resistance value should read "open." If it does not, replace sensor harness. Repeat Step 7. If the indicated temperature sensor does not meet these requirements, go to Step 8. If the temperature sensor does meet the requirements, go to Step 11. 8. For MAIN sensor: Replace appropriate temperature sensor. Repeat Step 7. If the requirements are not met, replace sensor harness. Repeat Step 7. If the requirements are still not met, go to Step 9. For MEAT PROBE sensor: Replace meat probe sensor. Repeat Step 7. If the requirements are not met, replace sensor harness. Repeat Step 7. If the requirements are still not met, replace the meat probe jack. Repeat Step 7. If the meat probe sensor is still not meeting the requirements, go to Step 9. 9. Replace the appliance manager. Ensure all connectors are properly seated. 10. Ensure all wiring connections are made. 11. Replace all parts and panels before operating. 12. Plug in oven or reconnect power. 13. Observe for longer than 1 minute. 14. Enter into Diagnostics mode by pressing OFF > OFF > START and read sensor for main oven sensor and meat probe on immediate display.
F3 Sensors E1 Lower main oven sensor open or shorted PROCEDURE: Oven is not equipped with this feature. If error occurs, before proceeding press OFF, OFF, START to enter into Diagnostics mode and verify the error codes. If error code returns, replace user interface with correct control associated with this product.
F3 Sensors E2 Warming drawer sensor shorted PROCEDURE: Oven is not equipped with this feature. If error occurs, before proceeding press OFF, OFF, START to enter into Diagnostics mode and verify the error codes. If error code returns, replace user interface with correct control associated with this product.
F5 Inputs E0 Door and latch switch do not agree PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." To Verify Door Switch: 1. While in Diagnostics, open the oven door. "0" should appear in the second clock digit from the left. Close the oven door. The clock digit should toggle to "1." If the digit did not toggle, go to Step 2. If the digit did not toggle after replacing the door switch, go to Step 4. If the digit did not toggle after replacing the door switch harness, go to Step 6. If the digit did toggle, door switch is operating correctly. 2. Unplug oven or disconnect power. 3. Replace door switch. (If door switch is integral to the door latch motor assembly, replace the entire door latch motor assembly.) Go to Step 8. 4. Unplug oven or disconnect power. 5. Check integrity of all harness wires and connections between the appliance manager and the door/latch assembly. Ensure no shorted wires to chassis. If the wiring is bad, replace the door switch harness. Go to Step 8. If the wiring is good, go to Step 8. 6. Unplug oven or disconnect power. 7. Replace appliance manager. Go to Step 8. 8. Replace all parts and panels before operating. 9. Plug in oven or reconnect power. 10. Enter into Diagnostics mode by pressing OFF > OFF > START. Repeat Step 1 above. To Verify Door Latch Switch/Motor Assembly: 1. While in Diagnostics, press the CLEAN key within the first 120 seconds of powering up to cycle the latch motor to the locked position. "1" should appear in the first clock digit from the left when locked. Press the CLEAN key to cycle the latch motor to the unlocked position. The clock digit should toggle to "0." If the digit did not toggle, go to Step 2. If motor runs continuously, wait until motor reaches the unlocked position, open the door, press the OFF key, go to Step 2. If motor did not run, go to Step 8. If the digit did not toggle after replacing the door latch motor assembly, go to Step 4. If the digit did not toggle after replacing the door latch switch harness, go to Step 6. If the digit did toggle, door latch switch is operating correctly. 2. Unplug oven or disconnect power. 3. Replace door latch motor assembly. Go to Step 11. 4. Unplug oven or disconnect power. 5. Check integrity of all harness wires and connections between the appliance manager and the door latch switch. Ensure no shorted wires to chassis. If the wiring is bad, replace the door latch switch harness. Go to Step 11. If the wiring is good, go to Step 11. 6. Unplug oven or disconnect power. 7. Replace appliance manager. Go to Step 11. 8. Unplug oven or disconnect power. 9. Check integrity of the latch mechanism from cam to latch pawl and door slot. Ensure that pawl aligns with the door slot. Correct any mechanical malfunction. 10. Check continuity of the latch motor and of electrical connections between appliance manager P8 and motor. If continuity is present, replace appliance manager. Go to Step 11. If continuity is not present, go to Step 11. 11. Replace all parts and panels before operating. 12. Plug in oven or reconnect power. 13. Enter into Diagnostics mode by pressing OFF > OFF > START. Repeat Step 1 above.
F5 Inputs E1 Door latch not operating PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." To Verify Door Switch: 1. While in Diagnostics, open the oven door. "0" should appear in the second clock digit from the left. Close the oven door. The clock digit should toggle to "1." If the digit did not toggle, go to Step 2. If the digit did not toggle after replacing the door switch, go to Step 4. If the digit did not toggle after replacing the door switch harness, go to Step 6. If the digit did toggle, door switch is operating correctly. 2. Unplug oven or disconnect power. 3. Replace door switch. (If door switch is integral to the door latch motor assembly, replace the entire door latch motor assembly.) Go to Step 8. 4. Unplug oven or disconnect power. 5. Check integrity of all harness wires and connections between the appliance manager and the door/latch assembly. Ensure no shorted wires to chassis. If the wiring is bad, replace the door switch harness. Go to Step 8. If the wiring is good, go to Step 8. 6. Unplug oven or disconnect power. 7. Replace appliance manager. Go to Step 8. 8. Replace all parts and panels before operating. 9. Plug in oven or reconnect power. 10. Enter into Diagnostics mode by pressing OFF > OFF > START. Repeat Step 1 above. To Verify Door Latch Switch/Motor Assembly: 1. While in Diagnostics, press the CLEAN key within the first 120 seconds of powering up to cycle the latch motor to the locked position. "1" should appear in the first clock digit from the left when locked. Press the CLEAN key to cycle the latch motor to the unlocked position. The clock digit should toggle to "0." If the digit did not toggle, go to Step 2. If motor runs continuously, wait until motor reaches the unlocked position, open the door, press the OFF key, go to Step 2. If motor did not run, go to Step 8. If the digit did not toggle after replacing the door latch motor assembly, go to Step 4. If the digit did not toggle after replacing the door latch switch harness, go to Step 6. If the digit did toggle, door latch switch is operating correctly. 2. Unplug oven or disconnect power. 3. Replace door latch motor assembly. Go to Step 11. 4. Unplug oven or disconnect power. 5. Check integrity of all harness wires and connections between the appliance manager and the door latch switch. Ensure no shorted wires to chassis. If the wiring is bad, replace the door latch switch harness. Go to Step 11. If the wiring is good, go to Step 11. 6. Unplug oven or disconnect power. 7. Replace appliance manager. Go to Step 11. 8. Unplug oven or disconnect power. 9. Check integrity of the latch mechanism from cam to latch pawl and door slot. Ensure that pawl aligns with the door slot. Correct any mechanical malfunction. 10. Check continuity of the latch motor and of electrical connections between appliance manager P8 and motor. If continuity is present, replace appliance manager. Go to Step 11. If continuity is not present, go to Step 11. 11. Replace all parts and panels before operating. 12. Plug in oven or reconnect power. 13. Enter into Diagnostics mode by pressing OFF > OFF > START. Repeat Step 1 above.
F6 Systems E0 Lost communication PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." Ensure AM software, UI software and EEPROM CHECKSUM versions appear on the lower text line. If AM software version does not appear, Ul and AM may not be communicating. 1. Unplug oven or disconnect power. 2. Unplug meat probe and plug in oven or reconnect power. If error goes away, the meat probe sensing line is grounded. 3. Unplug oven or disconnect power. 4. Check the harness and probe jack for a short to ground. 5. Open the back panels and make sure the P6 connector on the appliance manager and the P2 connector on the user interface are fully inserted. If not, plug in connectors and go to Step 9. If fully plugged in, go to Step 6. 6. Visually inspect all of the wires between P6 on the appliance manager and P2 on the user interface. Make sure the wires are not cut or pinched. If the wires appear to be intact, perform a continuity check between P6-1 of the appliance manager and P2-1 of the user interface board. Do the same for P6-2 (AM) to P2-2 (UI), P6-4 (AM) to P2-4 (UI), and P6-5 (AM) to P2-5 (UI). All of the checks should result in a reading of less than 5 Ω. If any of these checks fail, go to Step 8. If these checks pass, reconnect P2, then go to Step 7. 7. Replace the appliance manager. Ensure all connectors are properly seated; then go to Step 9. 8. Replace the wiring harness (signal) and go to Step 9. 9. Ensure all wiring connections are made. 10. Replace all parts and panels before operating. 11. Plug in oven or reconnect power. 12. Observe for longer than 1 minute. 13. If the error does not appear, initiate a bake cycle. Let the cycle run at least 1 minute. If no error occurs, cancel the cycle. The problem has been repaired. If the error occurs again, restart the troubleshooting procedure at Step 1 (except in Step 7 replace the user interface board if the appliance manager has already been replaced).
F6 Systems E1 Cook oven over temperature PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. If oven is off, turn oven on and inspect all of the elements, convect ring, bake and broil. Visually inspect all elements to ensure they are not operating. 2. Unplug oven or disconnect power. Wait 10 seconds. 3. Plug in oven or reconnect power. 4. Enter into Diagnostics mode by pressing OFF > OFF > START. 5. Press the BAKE key to cycle the Bake relay on and off as long as Diagnostics mode is within the first 120 seconds of powering up. If the Bake relay does not cycle on and off, go to Step 6. If the element does not cycle with the relay, go to Step 11. If the element does cycle on and off, go to Step 9. 6. Unplug oven or disconnect power for 30 seconds. 7. Plug in oven or reconnect power. 8. Enter the diagnostics mode described in steps 1 through 3 of "To Enter Diagnostics Mode." Press the BAKE key and cycle relay on and off. If the Bake relay does not cycle on and off, go to Step 13. If the element does not cycle with the relay, go to Step 11. If the element does cycle on and off, go to Step 9. 9. Enter the diagnostics mode described in steps 1 through 3 of "To Enter Diagnostics Mode." Press the BROIL key to cycle the Broil relays. Ensure outer broil relay energizes by inspecting the outer broil element. Press BROIL key again for inner broil element. Ensure inner broil relay energizes by inspecting the inner broil element. If the Broil relay does not turn on and off, go to Step 13. If the element does not cycle with the relay, go to Step 11. If the element or gas valve did cycle on and off, go to Step 10. 10. Enter the diagnostics mode described in steps 1 through 3 of "To Enter Diagnostics Mode." Press the CONVECT BAKE key to cycle the convect bake relay on and off. If the Convect Bake relay does not turn on and off, go to Step 13. If the element does not cycle with the relay, go to Step 11. If the element did cycle on and off, go to Step 11. 11. Unplug oven or disconnect power. 12. Check integrity of all harness wires and connections between the appliance manager and the electric elements. Ensure all wiring and connections between the appliance manager and elements, and the appliance manager and user interface are intact and properly seated and that no wires are shorted or damaged If the wiring connections are not intact, go to Step 17. If the wiring is good, go to Step 14. 13. Unplug oven or disconnect power. 14. Replace the appliance manager. Go to Step 16. 15. Unplug oven or disconnect power. 16. Replace the user interface board. Go to Step 17. 17. Replace the harness. 18. Replace all parts and panels before operating. 19. Plug in oven or reconnect power. 20. Verify operation is normal. Enter into Diagnostics mode by pressing OFF > OFF > START and complete checks.
F6 Systems E2 Clean oven over temperature PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. If oven is off, turn oven on and inspect all of the elements, convect ring, bake and broil. Visually inspect all elements to ensure they are not operating. 2. Unplug oven or disconnect power. Wait 10 seconds. 3. Plug in oven or reconnect power. 4. Enter into Diagnostics mode by pressing OFF > OFF > START. 5. Press the BAKE key to cycle the Bake relay on and off as long as Diagnostics mode is within the first 120 seconds of powering up. If the Bake relay does not cycle on and off, go to Step 6. If the element does not cycle with the relay, go to Step 11. If the element does cycle on and off, go to Step 9. 6. Unplug oven or disconnect power for 30 seconds. 7. Plug in oven or reconnect power. 8. Enter the diagnostics mode described in steps 1 through 3 of "To Enter Diagnostics Mode." Press the BAKE key and cycle relay on and off. If the Bake relay does not cycle on and off, go to Step 13. If the element does not cycle with the relay, go to Step 11. If the element does cycle on and off, go to Step 9. 9. Enter the diagnostics mode described in steps 1 through 3 of "To Enter Diagnostics Mode." Press the BROIL key to cycle the Broil relays. Ensure outer broil relay energizes by inspecting the outer broil element. Press BROIL key again for inner broil element. Ensure inner broil relay energizes by inspecting the inner broil element. If the Broil relay does not turn on and off, go to Step 13. If the element does not cycle with the relay, go to Step 11. If the element or gas valve did cycle on and off, go to Step 10. 10. Enter the diagnostics mode described in steps 1 through 3 of "To Enter Diagnostics Mode." Press the CONVECT BAKE key to cycle the convect bake relay on and off. If the Convect Bake relay does not turn on and off, go to Step 13. If the element does not cycle with the relay, go to Step 11. If the element did cycle on and off, go to Step 11. 11. Unplug oven or disconnect power. 12. Check integrity of all harness wires and connections between the appliance manager and the electric elements. Ensure all wiring and connections between the appliance manager and elements, and the appliance manager and user interface are intact and properly seated and that no wires are shorted or damaged If the wiring connections are not intact, go to Step 17. If the wiring is good, go to Step 14. 13. Unplug oven or disconnect power. 14. Replace the appliance manager. Go to Step 16. 15. Unplug oven or disconnect power. 16. Replace the user interface board. Go to Step 17. 17. Replace the harness. 18. Replace all parts and panels before operating. 19. Plug in oven or reconnect power. 20. Verify operation is normal. Enter into Diagnostics mode by pressing OFF > OFF > START and complete checks.
F6 Systems E3 Mini oven/warm drawer over temperature PROCEDURE: Oven is not equipped with this feature. If error occurs, before proceeding press OFF, OFF, START to enter into Diagnostics mode and verify the error codes. If error code returns, replace user interface with correct control associated with this product.
F6 Systems E4 User interface/ appliance manager mismatch PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." 1. Unplug oven or disconnect power. Wait 10 seconds. 2. Plug in oven or reconnect power. 3. Enter into Diagnostics mode by pressing OFF > OFF > START. 4. Press BAKE. Ensure Bake relay energizes by inspecting Bake element. 5. Press BROIL 1 time for outer broil element. Ensure Outer Broil relay energizes by inspecting the Outer Broil element. 6. Press BROIL again for Inner Broil element. Ensure Inner Broil relay energizes by inspecting the Inner Broil element. 7. Press SELF CLEAN to drive door latch to lock door. Press again to reset door latch to normal state. 8. Press COOK to activate the low speed cooling fan. Press again for high speed. If all functions do not work properly, go to Step 13. 9. If all functions are working, the Appliance Manager and User Interface are working properly. 10. Exit Diagnostics by pressing OFF. 11. Press BAKE and ensure that the Bake relay energizes and the control enters the Bake Preheat. Wait up to 60 seconds to ensure error has been resolved. If error returns, proceed to Step 13. 13. Unplug oven or disconnect power. 14. Remove covers for access to oven controls. 15. Replace the appliance manager. Ensure all connections are properly seated. 16. Replace all parts and panels before operating. 17. Plug in oven or reconnect power. 18. Press BAKE and ensure that Bake relay energizes and the control enters into Bake/Preheat. Wait up to 60 seconds to ensure error has been resolved. If error returns, go to Step 19. 19. Unplug oven or disconnect power. 20. Replace the user interface. Ensure all connections are properly seated. Go to Step 21. 21. Replace all parts and panels before operating. 22. Plug in oven or reconnect power. 23. Press BAKE and ensure the Bake relay energizes and the control enters into Bake/Preheat. Wait up to 60 seconds to ensure error has been resolved. 24. Verify operation is normal. Enter into Diagnostics mode by pressing OFF > OFF > START and complete checks.
F6 Systems E5 No cavity size command PROCEDURE: Before proceeding, perform steps 1 through 3 of "To Enter Diagnostics Mode." Control should immediately power up in Cavity Size Select mode. Using key "6" (DOWN) and key "3" (UP) scroll through to locate the corresponding cavity size. Once located press the START key to accept the proper cavity size for the oven being programmed. Control should reinitialize to cavity size selected. If error returns at least 60 seconds after cavity size has been set, go to Step 1. 1. Unplug oven or disconnect power. Wait 10 seconds. 2. Plug in oven or reconnect power. 3. Enter into Diagnostics mode by pressing OFF > OFF > START. Press "6" (DOWN) once main diagnostic screen appears. Screen should identify cavity size for oven being programmed. If this is incorrectly shown, press CLOCK to edit current programmed size. Press "6" (DOWN) to locate proper cavity size. Once located, press START to accept the new cavity size. Control will reset and initialize the new cavity size programmed. Wait for 60 seconds to ensure error has been corrected. 4. If error is corrected, go to Step 8. 5. If error returns, go to Step 6. 6. Unplug oven or disconnect power. 7. Replace user interface ensuring all connections are properly seated and go to Step 8. 8. Replace all parts and panels before operating. 9. Plug in oven or reconnect power. 10. Control may power up in Cavity Size Select mode. Set cavity size as outlined in Step 3 by locating proper cavity size and pressing START once located. Wait for 60 seconds to ensure error has been corrected. 11. Verify operation is normal. Go to Step 1 of "To Enter Diagnostic Mode" and complete checks.
