Brand: KENWOOD
Category: Refrigerator
Document Type: Manual
Language: EN

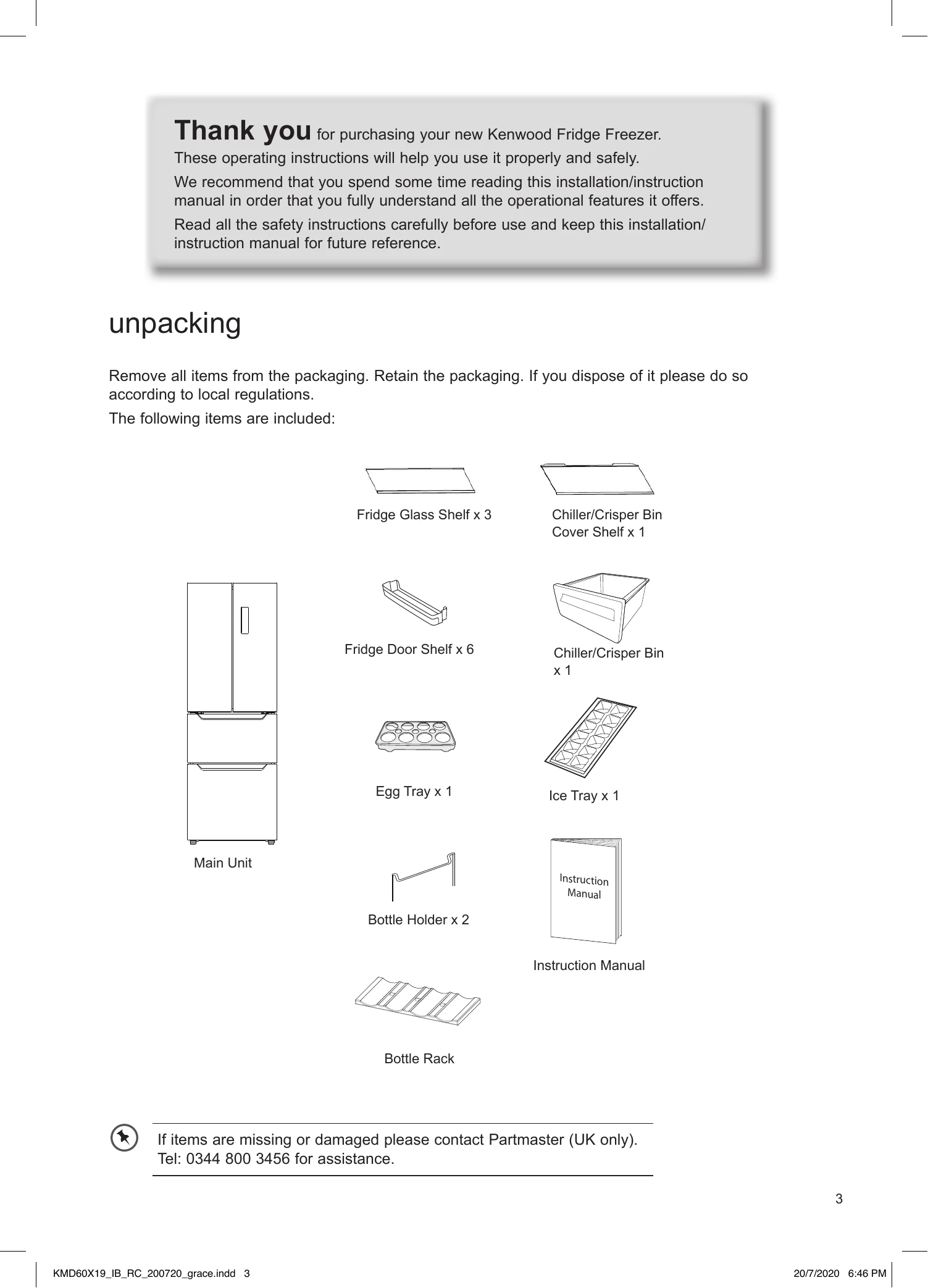

Manual for REFRIGERATOR
Uploaded: Nov. 21, 2025, 8:32 p.m.
Warranty Information
None
Operation
Switching on: Connect the mains cable. The internal temperature is controlled by an electronic panel. The unit locks automatically after 25 seconds, indicated by the lock icon. Adjust fridge temperature between 2-8°C and freezer between -14 to -22°C using the FRIDGE and FREEZER buttons. Allow 24 hours before filling with food.
Mode Button: Cycle through ECO Mode (energy saving, fridge 5°C, freezer -18°C), Holiday Mode (fridge 17°C, no food storage), and Super Freeze Mode (rapidly lowers freezer temp). User Defined mode is also available. The unit locks after 25 seconds of inactivity. A door alarm sounds if a door is left open for 60 seconds.
Chiller/Crisper Bin: Can function as a chiller bin (lower temp) or crisper bin (higher temp) using the temperature control slide.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| The unit does not operate. | The unit is not plugged in. | Plug the unit in. |
| The unit is not switched on. | Ensure the unit is switched on. | |
| The power cord is not plugged in correctly. | Plug in the power cord correctly. | |
| The fuse or circuit breaker has blown/tripped. | Check and replace the fuse or reset the circuit breaker. | |
| There is a power failure. | The unit will operate again when the power is restored. | |
| The temperature control is set incorrectly. | Set the temperature control to a colder setting. | |
| The door is not closed correctly. | Ensure the door is closed correctly. | |
| The door has been opened too often. | Avoid opening the door too often. | |
| The door is not sealed correctly. | Check the door seal. | |
| The unit is not cold enough. | The ambient temperature is too high. | Relocate the unit to a cooler environment. |
| Too much food has been loaded at once. | Do not load too much food at once. | |
| The room temperature is too high. | Relocate the unit to a cooler environment. | |
| The unit is not level. | Adjust the levelling feet. | |
| The door is not sealed correctly. | Check the door seal. | |
| The compressor is cycling on and off frequently. | The unit is not level. | Adjust the levelling feet. |
| The door is not sealed correctly. | Check the door seal. | |
| The ambient temperature is too high. | Relocate the unit to a cooler environment. | |
| Too much food has been loaded at once. | Do not load too much food at once. | |
| The unit is making unusual noises. | The unit is not level. | Adjust the levelling feet. |
| The refrigerant is circulating. | This is normal. | |
| The compressor is working. | This is normal. | |
| The unit is touching the wall or cabinets. | Move the unit away from the wall or cabinets. | |
| The unit is not packed correctly. | Ensure the unit is packed correctly. | |
| Heavy items are on the unit. | Remove heavy items from the unit. | |
| The unit is not level. | Adjust the levelling feet. | |
| The door is not sealed correctly. | Check the door seal. | |
| Condensation appears on the outside of the unit. | The ambient temperature is too high. | Relocate the unit to a cooler environment. |
| The door is not sealed correctly. | Check the door seal. | |
| The unit is not level. | Adjust the levelling feet. | |
| The door has been opened too often. | Avoid opening the door too often. |
