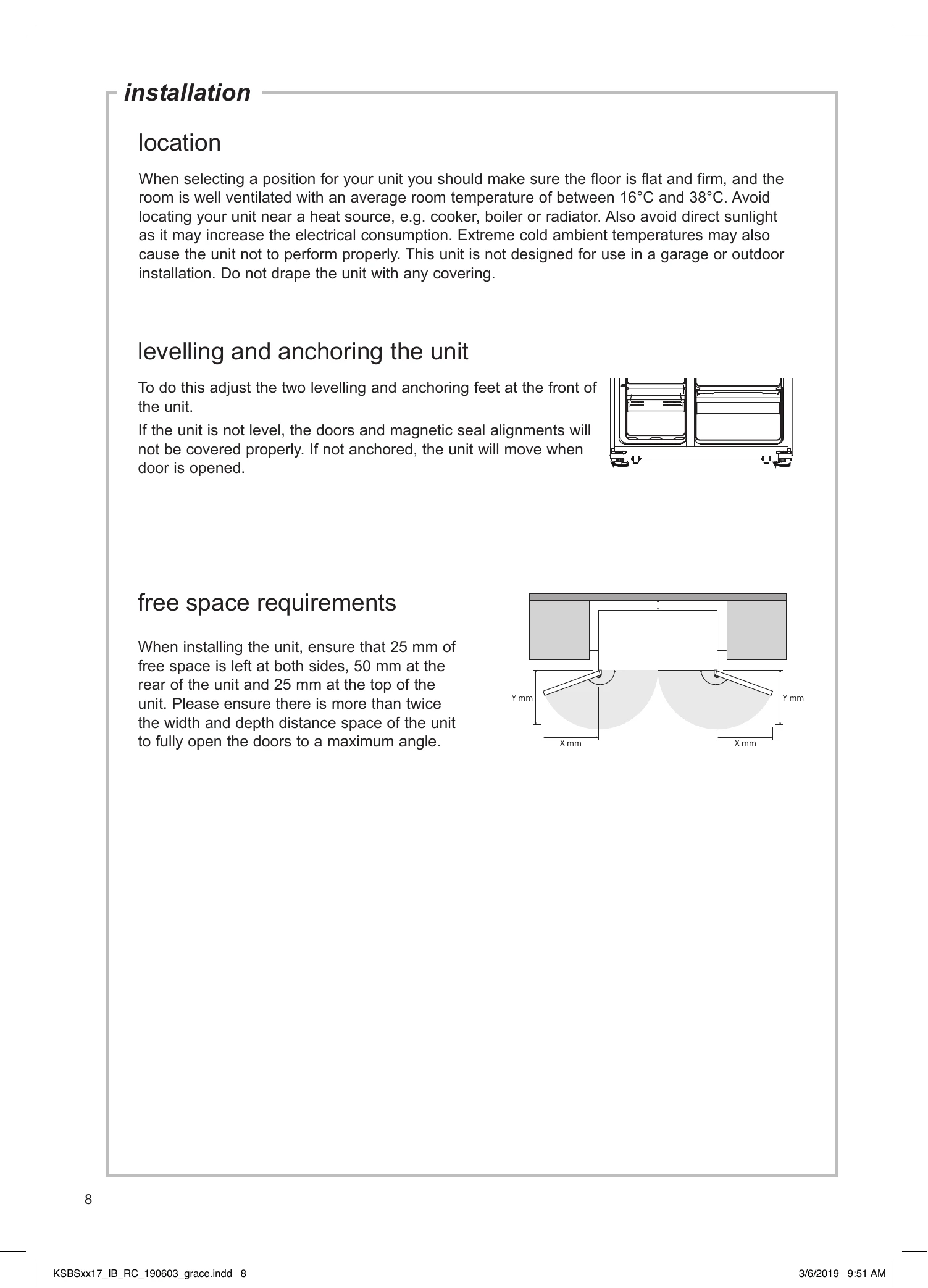

Installation Guide for KSBSB17 / KSBSW17 / KSBSX17
Uploaded: Nov. 21, 2025, 6:15 p.m.
Operating the Refrigerator:
1. Temperature Settings: Adjust fridge temperature between 2°C-8°C and freezer between -14°C to -22°C using the 'Fridge' and 'Freezer' buttons. Use the 'Mode' button to select 'User's Setting'.
2. Special Modes: Press 'Mode' to select 'SMART' (automatic temperature adjustment), 'ECO' (energy saving), 'SUPER COOLING' (rapid cooling for fridge, approx. 2 hours), or 'SUPER FREEZING' (rapid freezing for freezer, approx. 6 hours).
3. Locking Controls: Press and hold the 'Lock 3 sec.' button for 3 seconds to lock other buttons. Press and hold for 1 second to unlock.
4. Door Open Alarm: An alarm sounds if a door is left open for 90 seconds.
1. Temperature Settings: Adjust fridge temperature between 2°C-8°C and freezer between -14°C to -22°C using the 'Fridge' and 'Freezer' buttons. Use the 'Mode' button to select 'User's Setting'.
2. Special Modes: Press 'Mode' to select 'SMART' (automatic temperature adjustment), 'ECO' (energy saving), 'SUPER COOLING' (rapid cooling for fridge, approx. 2 hours), or 'SUPER FREEZING' (rapid freezing for freezer, approx. 6 hours).
3. Locking Controls: Press and hold the 'Lock 3 sec.' button for 3 seconds to lock other buttons. Press and hold for 1 second to unlock.
4. Door Open Alarm: An alarm sounds if a door is left open for 90 seconds.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| The unit does not operate | The power cord is not plugged in. | Plug the power cord into the socket. |
| The compressor runs frequently | The door is open for a long time. The door is not sealed properly. The ambient temperature is high. The unit is loaded with too much food. | Close the door. Check the door seal. Select a suitable location. Do not overfill. |
| The unit is too noisy | The unit is not on a level surface. The unit is touching furniture. | Level the unit using the adjustable feet. Ensure there is adequate space around the unit. |
| Condensation on the exterior | The unit is placed in a humid environment. | Wipe off any moisture residue. If the problem continues, contact a qualified technician. |
| The unit is not cold enough | The temperature is set incorrectly. The door is not closed properly. The unit needs defrosting (if applicable). The air circulation is blocked. | Adjust the temperature. Check the door seal. Refer to the defrosting section. Ensure ventilation openings are clear. |
