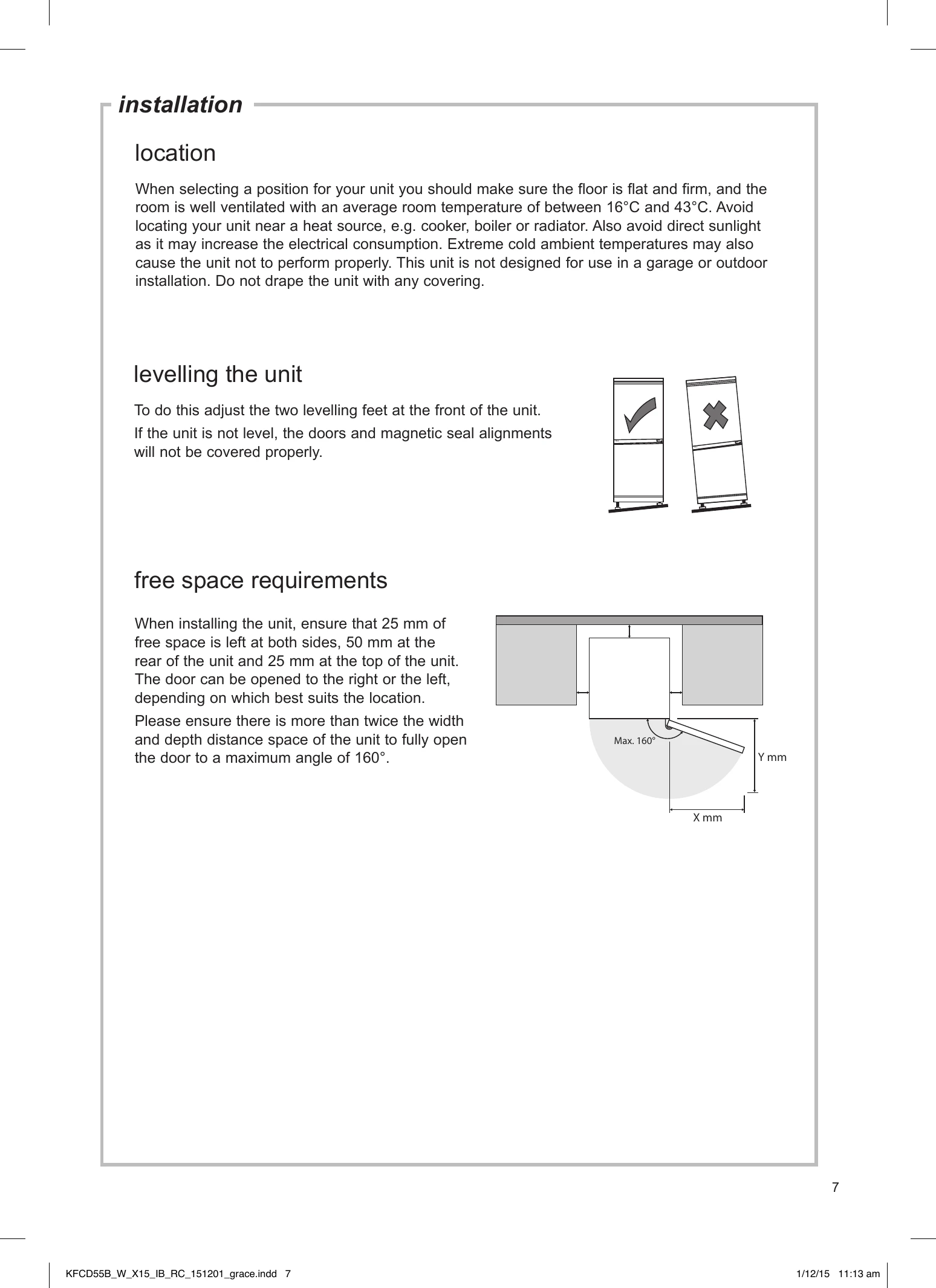

Installation Guide for KFCD55B15 / KFCD55W15 / KFCD55X15

Installation Guide for KFCD55B15 / KFCD55W15 / KFCD55X15

Brand: KENWOOD

Category: Refrigerator

Document Type: Installation Guide

Language: EN

Uploaded: Nov. 21, 2025, 8:34 p.m.

Warranty Information

Refer to your retailer for warranty information.

Switching on your unit

  1. Connect the mains cable to the mains socket. The internal temperature is controlled by a thermostat with eight settings (0 is off, 7 is coldest).
  2. Set the thermostat to a desired position. Position 3 is recommended for normal room temperatures (16°C to 43°C). Higher numbers mean lower temperatures.
  3. Ensure the unit operates at the correct temperature by avoiding extreme room temperatures and frequent door openings.
  4. Wait 24 hours before filling with food to ensure sufficient cooling.
  5. Use a special thermometer to check temperatures: 0-8°C for the fridge, -18°C or lower for the freezer.

Adjusting the temperature

Recommended setting is 1-4 for colder environments and 5-7 for hotter environments. Adjust as needed.

Filling the water tank

  1. Lift the flap and fill with drinking water only.
  2. Do not overfill. Ensure the tank is steady.
  3. Avoid other beverages, especially those with grain, and hot water.
  4. Do not touch other parts of the unit while filling.

Receiving water from the water dispenser

  1. Place a suitable container under the dispenser and push the lever.
  2. Ensure the lock device is at "Unlock" before dispensing.
  3. Slide to "Lock" after use to prevent children from playing with the lever.
  4. Do not force the lever when locked.

Troubleshooting and error codes

Problem Possible Cause Solution
Unit does not operate Not plugged in Plug into a suitable socket.
Fuse blown / circuit breaker tripped Check and reset / replace fuse.
Thermostat set to 0 Turn thermostat to a setting other than 0.
Unit is not cold enough Thermostat setting too high Adjust thermostat to a lower setting.
Doors not closed correctly Ensure doors are closed properly.
Unit recently switched on Wait 24 hours for the unit to cool down.
Room temperature too high Ensure the ambient temperature is within operating range.
Sudden temperature increase Unit recently switched on Wait 24 hours for the unit to cool down.
Doors left open for too long Close doors promptly.
Too much warm food placed inside Allow food to cool before placing in the unit.
Water dispenser not working Water tank not filled Fill the water tank.
Lock device engaged Ensure lock device is at "Unlock".
Excessive condensation on the outside Change in room temperature Wipe off moisture residue. If problem persists, contact a technician.
