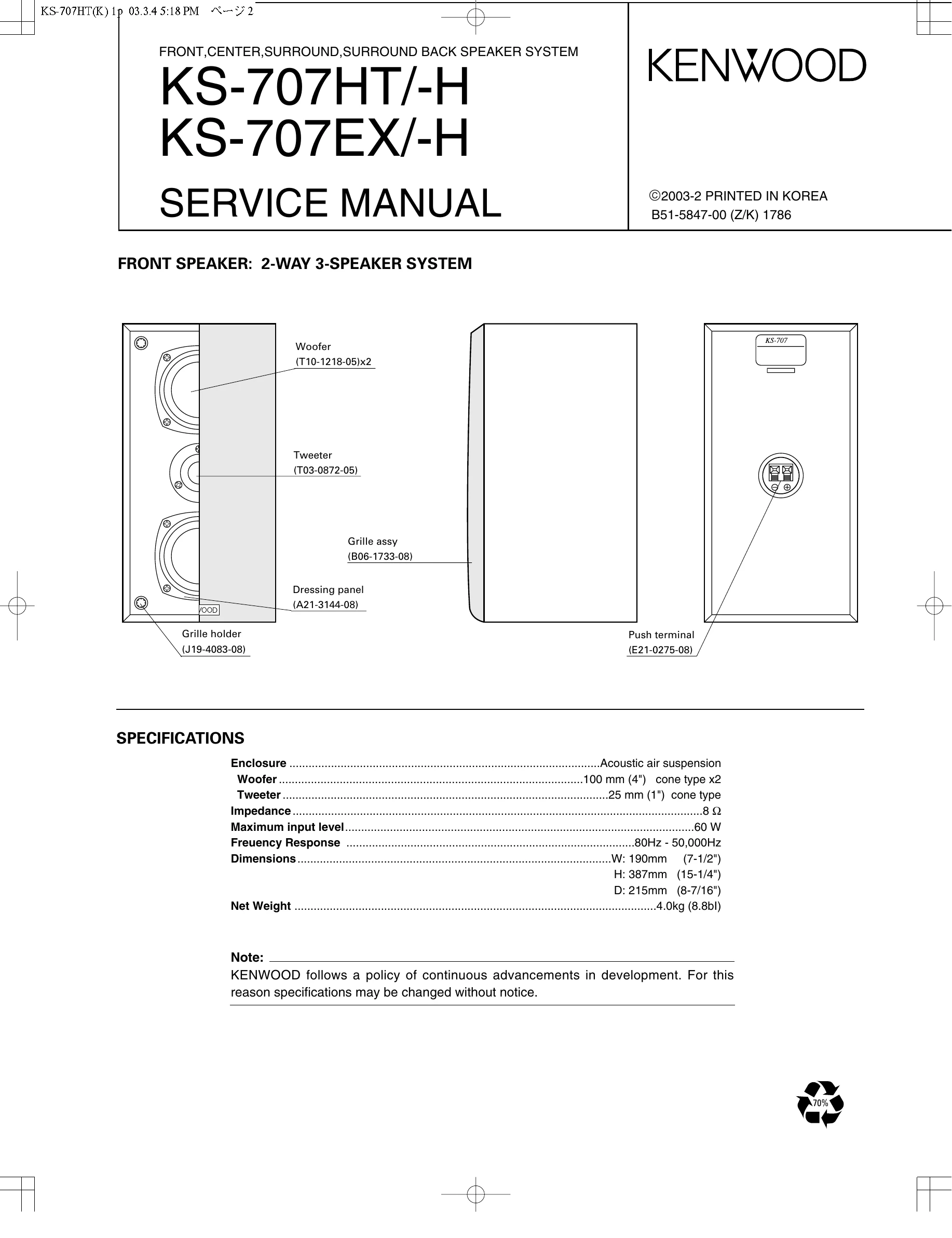

Parts/Service for KS-707HT/EX
Uploaded: Nov. 21, 2025, 7:15 p.m.
Manual Publish Date: 2003-01-01
Warranty Information
Specifications may change without notice due to continuous advancements in development.
This service manual provides detailed information for the KENWOOD KS-707HT/EX speaker system. It includes external views, specifications, dividing network unit diagrams, and a comprehensive parts list. The manual covers front, center, surround, and surround back speaker systems, detailing their components and part numbers. It is intended for service technicians and provides necessary data for repair and maintenance.
Troubleshooting and error codes
| Ref. No. | Address | New Parts | Parts No. | Description | Desti- nation | Re marks |
|---|---|---|---|---|---|---|
| - | - | - | B61-1178-00 | INSTRUCTION MANUAL (KS-707HT/-H) | ||
| - | - | - | B61-1183-00 | INSTRUCTION MANUAL (KS-707EX/-H) | ||
| - | - | * | H10-8373-08 | POLYSTYRENE FOAMED FIXTURE (TOP) | ||
| - | - | * | H10-8374-08 | POLYSTYRENE FOAMED FIXTURE (BTM) | ||
| - | - | * | H10-8379-08 | POLYSTYRENE FOAMED FIXTURE (MID) | ||
| - | - | * | H25-2561-08 | PROTECTION BAG (FRONT) | ||
| - | - | * | H25-2562-08 | PROTECTION BAG (CENTER) | ||
| - | - | * | H25-2563-08 | PROTECTION BAG (SURROUND) | KP | |
| - | - | * | H51-1944-08 | ITEM CARTON CASE (KS-707HT) | KP | M |
| - | - | * | H51-1945-08 | ITEM CARTON CASE (KS-707HT) | KP | |
| - | - | * | H51-1954-08 | ITEM CARTON CASE (KS-707EX) | KP | M |
| - | - | * | H51-1955-08 | ITEM CARTON CASE (KS-707EX) | KP | |
| - | - | * | H51-1963-08 | ITEM CARTON CASE (KS-707EX-H) | KP | M |
| - | - | * | H51-1964-08 | ITEM CARTON CASE (KS-707HT-H) | KP | |
| - | - | * | W01-1189-08 | ACCESSORY (CORDx5) (KS-707HT/-H) | ||
| - | - | * | W01-1203-08 | ACCESSORY(CORDx6) (KS-707EX/-H) | ||
| FRONT/CENTER/SURROUND SPEAKER | ||||||
| A21-3144-08 | DRESSING PANEL | |||||
| C1 | * | B06-1734-08 | GRILLE ASSY (CENTER) | |||
| SP1 | * | B06-1733-08 | GRILLE ASSY (FRONT) | |||
| SP1 | * | B06-1731-08 | GRILLE ASSY (SURROUND) | |||
| SP2 | C90-5165-08 | NP-ELEC | 1.0UF | 100WV | ||
| SP2 | E21-0275-08 | PUSH TERMINAL | ||||
| J19-4083-08 | GRILLE HOLDER (FRONT, CENTER) | |||||
| J21-8733-08 | MOUNTING HARDWARE (SURROUD) | |||||
| SP1 | T10-1218-05 | WOOFER (FRONT, CENTER) | ||||
| SP1 | T10-1220-05 | WOOFER (SURROUND) | ||||
| SP2 | T03-0872-05 | TWEETER (FRONT, CENTER) | ||||
| SP2 | T03-0873-05 | TWEETER (SURROUND) |
