Parts/Service for DVF-3030

Parts/Service for DVF-3030

Brand: KENWOOD

Category: Audio

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 7:30 p.m.

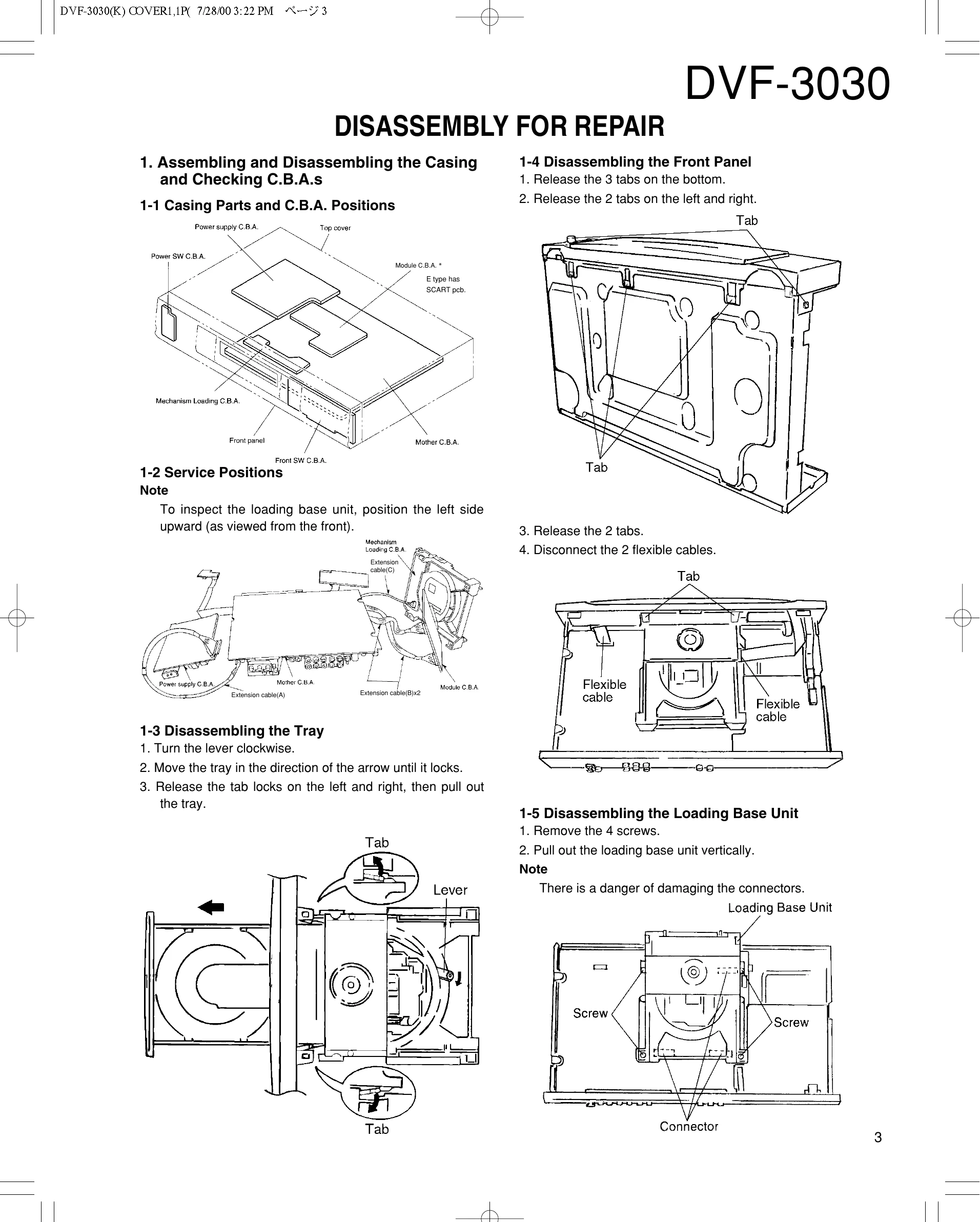

This service manual provides detailed instructions for the disassembly, repair, and troubleshooting of the KENWOOD DVF-3030 DVD/VCD/CD player. It includes exploded views, block diagrams, circuit descriptions, voltage charts, and specific procedures for self-diagnosis and adjustment of components like the optical pickup. The manual also lists all parts with their corresponding numbers and descriptions for easy identification and replacement. Safety precautions regarding static electricity and laser diodes are emphasized throughout the document.

Troubleshooting and error codes

Error display Malfunction example Disc, IC7001
F** Disc, IC7001
F103 Disc, IC7001
F4FF IC6001
F500 Optical pickup, IC2001, IC5201, IC2511, IC2501
F501 IC2001, IC6201
F502 IC2501, IC2511, IC2001, IC5202
F504 IC5201, IC2001
F505 Disc, IC2501, IC2511, IC5201, IC2001
F506 Disc, Optical pickup, IC2001
F600 Disc, IC7001, IC5201, IC2001
F601 Disc, IC7001
F602 Disc, IC5201, IC2001
F603 Disc, IC5201, IC2001
F610 IC7001
F611 IC7001, IC5201, IC2001
F612 IC7001, IC15201, IC2001
F620 Laser drive circuit
F621 Laser drive circuit
F700 IC6201
F701 IC6201
F702 IC6201
F880 IC6201
F890 IC6201
F891 IC6201
F8A0 IC6201
F893 IC6302
F894 IC6303
