Manual for DV-605

Manual for DV-605

Brand: KENWOOD

Category: Audio

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:32 p.m.

Warranty Information

Record the serial number on the warranty card and for dealer inquiries.

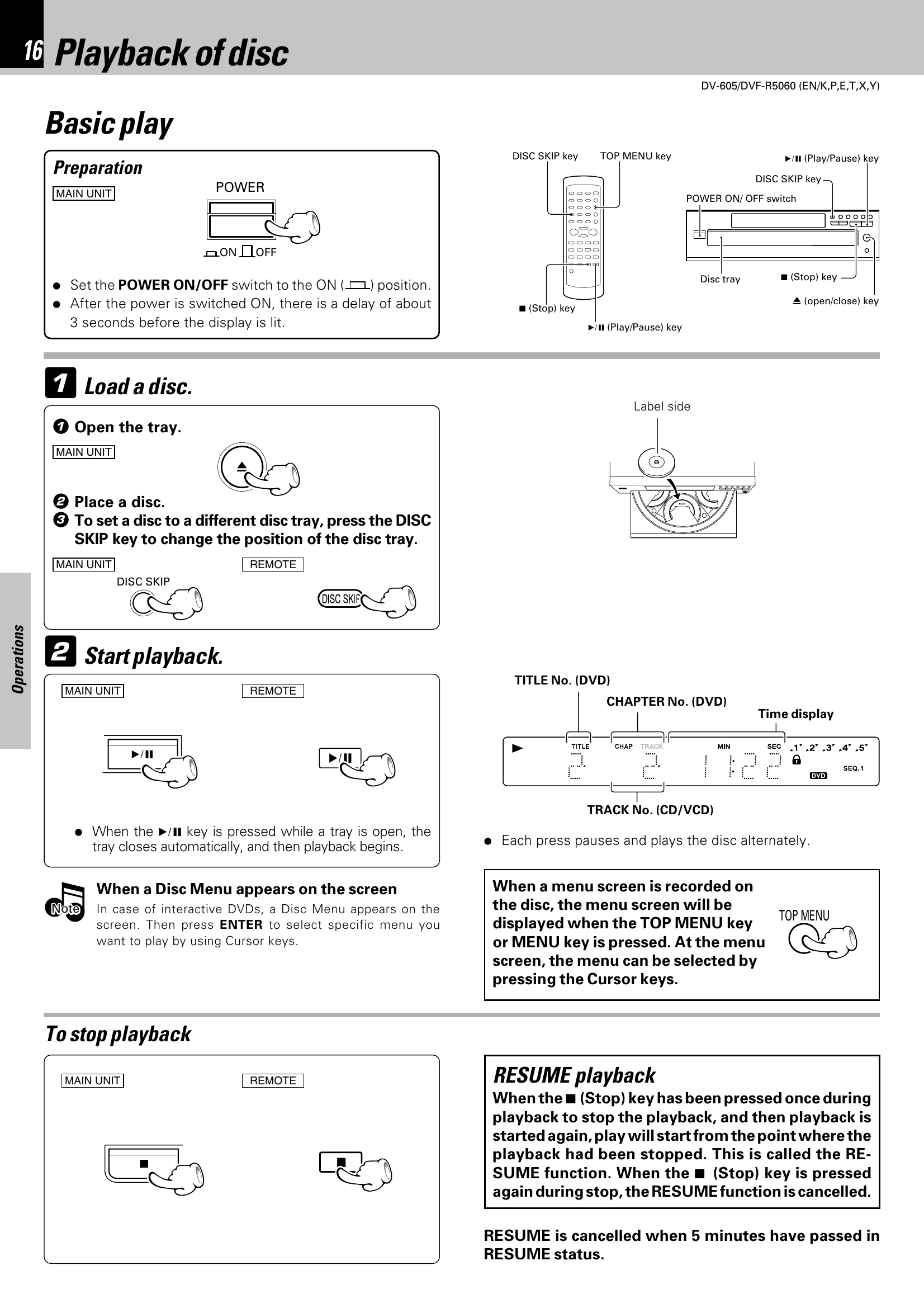

Basic Playback

  1. Turn the unit ON.
  2. Open the disc tray.
  3. Place a disc in the tray.
  4. Close the tray and press ►/II to start playback.
  5. Press ►/II to pause and play alternately.
  6. Press ■ to stop playback.
  7. Press ■ twice to cancel RESUME playback.

Using the On-screen Banner Display

  1. During playback, press ON SCREEN key.
  2. Use Cursor keys to highlight icon.
  3. Press ENTER key to access menu.
  4. Use ENTER key or specific function keys (AUDIO, SUBTITLE, ANGLE) to adjust settings.

MP3 Playback

  1. Insert MP3 disc. Playback starts automatically.
  2. Use Cursor keys to select folder and file.
  3. Press ENTER to play selected file.
  4. Press ■ to stop playback.

Troubleshooting and error codes

Symptom Cause Remedy
Playback does not start when the ►/II key is pressed. There is no disc in the player. Load a disc and press the ►/II key.
Playback starts but no image/sound is seen/ heard. The TV is not turned on. Turn on the TV.
The picture is disrupted when the image is fast forwarded or fast reversed. The picture is slightly disrupted during fast forward and fast reverse operations. This is not a malfunction.
No sound is heard. The audio output cords are not properly connected. Properly connect the audio cords.
The picture does not look good or the picture/sound quality is poor. The player is in a special playback mode. Press the ►/II key to resume normal playback mode.
It takes a while for the disc to start playing. Time is required for the unit to detect the disc type and size and for the rotation of the motor to stabilize. This is not a malfunction. Approximately 10 to 20 seconds are required for a disc to start playing, although the time differs depending on the disc.
The tray opens automatically. The disc is not placed horizontally. Properly place the disc on the tray.
The top and bottom of the screen cannot be seen. The video format of the disc being played does not match that of the connected TV monitor. Refer to the "Video formats" section, and use a disc with the appropriate video format for your TV or a TV with the appropriate video format for the disc.
The subtitle is not displayed. The DVD disc being played does not contain the recording of subtitles. The subtitle cannot be displayed when the DVD disc being played does not contain the recording of subtitles.
The voice (or subtitle) language cannot be changed. The DVD disc being played does not contain the recording of more than one audio (or subtitle) language. The voice (or subtitle) language cannot be changed when the DVD disc being played does not contain the recording of more than one voice (or subtitle) language.
The viewing angle cannot be changed. The DVD disc being played does not contain the recording of more than one angle. The viewing angle cannot be changed when the DVD disc being played does not contain the recording of more than one angle.
