Basic Operations

Familiarity with installation and operation procedures will help you obtain the best performance from your new receiver.

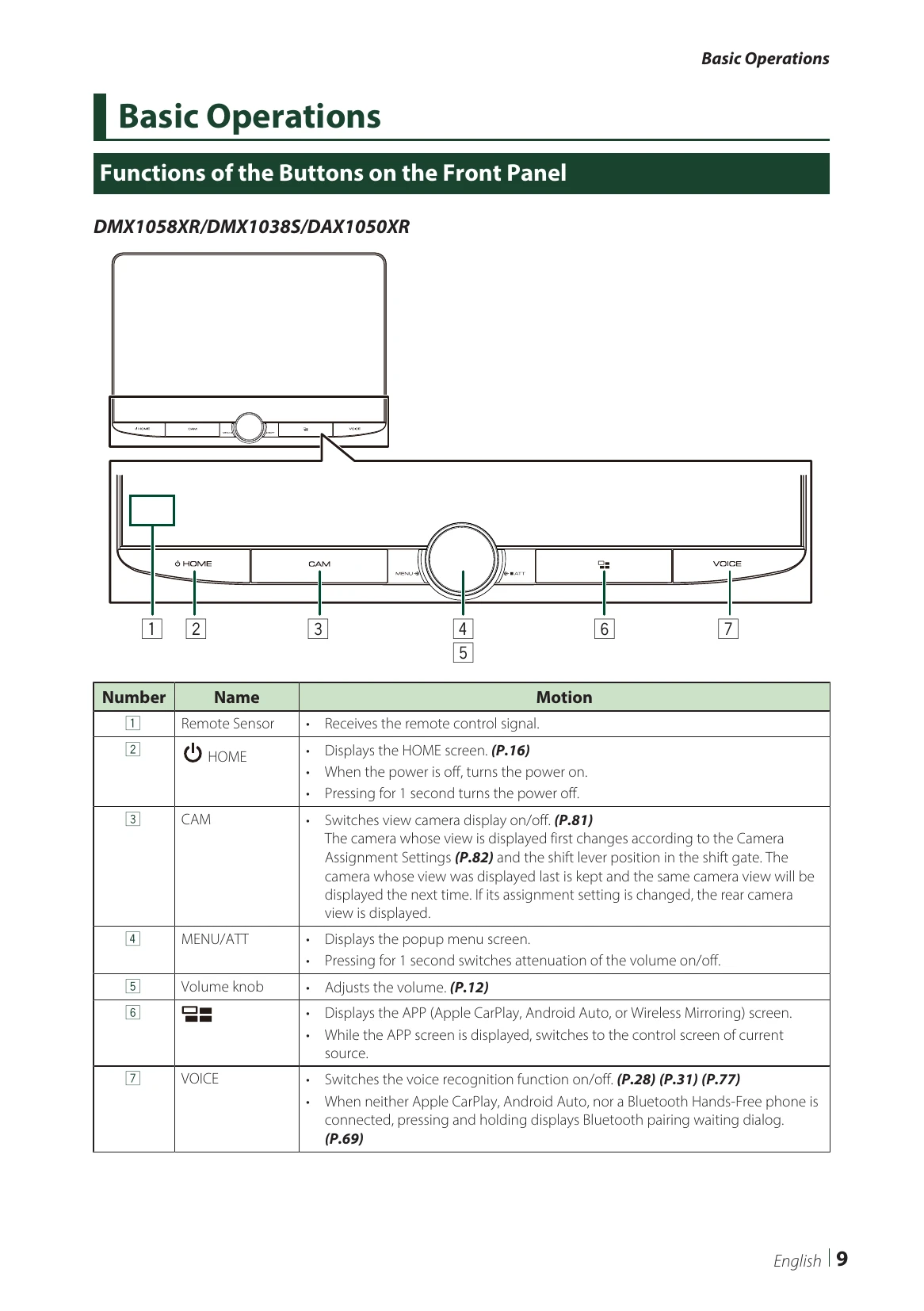

Functions of the Buttons on the Front Panel (DMX1058XR/DMX1038S/DAX1050XR)

  • Remote Sensor: Receives the remote control signal.
  • HOME: Displays the HOME screen. Turns power on/off.
  • CAM: Switches camera view on/off.
  • MENU/ATT: Displays the popup menu screen. Switches attenuation of the volume on/off.
  • Volume knob: Adjusts the volume.
  • APP: Displays the APP (Apple CarPlay, Android Auto, or Wireless Mirroring) screen.
  • VOICE: Switches voice recognition on/off.

Touch screen operations

  • Touch: Select an item.
  • Touch and hold: Keep finger in place until display changes.
  • Flick: Slide finger quickly to change page or scroll list.
  • Swipe: Slide finger up or down to scroll the screen.

Turning on the Unit

  • DMX1058XR/DMX1038S/DAX1050XR: Press the HOME button.
  • DAX800XR/DAX8000S: Touch the screen.

Turning the AV off

  • Touch at the top of the screen.
  • Touch AV OFF on the popup menu.

Troubleshooting and error codes

Problem Solution
There is an error in the speaker wiring. Please check the connections. Protective circuit has been activated because a speaker cord has shorted or it has come in contact with the car chassis. Wire or insulate the speaker cord as appropriate and turn the power off and on again.
No Device (USB device) The USB device is selected as a source although no USB device is connected. Change the source to any source other than USB/iPhone. Connect a USB device, and change the source to USB again.
Disconnected (iPhone, Bluetooth audio player) The iPhone/Bluetooth audio player is selected as a source although no iPhone/Bluetooth audio player is connected. Change the source to any source other than iPhone/Bluetooth. Connect an iPhone/Bluetooth audio player, and change the source to iPhone/Bluetooth again.
No Media file The connected USB device contains no playable audio file. Media was played that does not have data recorded that the unit can play. See Playable Media and Files (P.131) and try another USB device.
USB device over current status detected. The connected USB device is rated a current capacity higher than the allowable limit. Check the USB device. Some trouble may have occurred to the connected USB device. Change the source to any source other than USB. Remove the USB device.
The speed sense wire is not connected. Please check the connection. The speed pulse disconnection is detected. By default, it is treated as connected. To improve precision of a vehicle position recognition, check the connection of the speed pulse.
