Parts/Service for CD-203/DPF-R3010/DPF-R3010E/R4010/R4010E

Parts/Service for CD-203/DPF-R3010/DPF-R3010E/R4010/R4010E

Brand: KENWOOD

Category: Audio

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 7:13 p.m.

Manual Publish Date: 1998-03-01

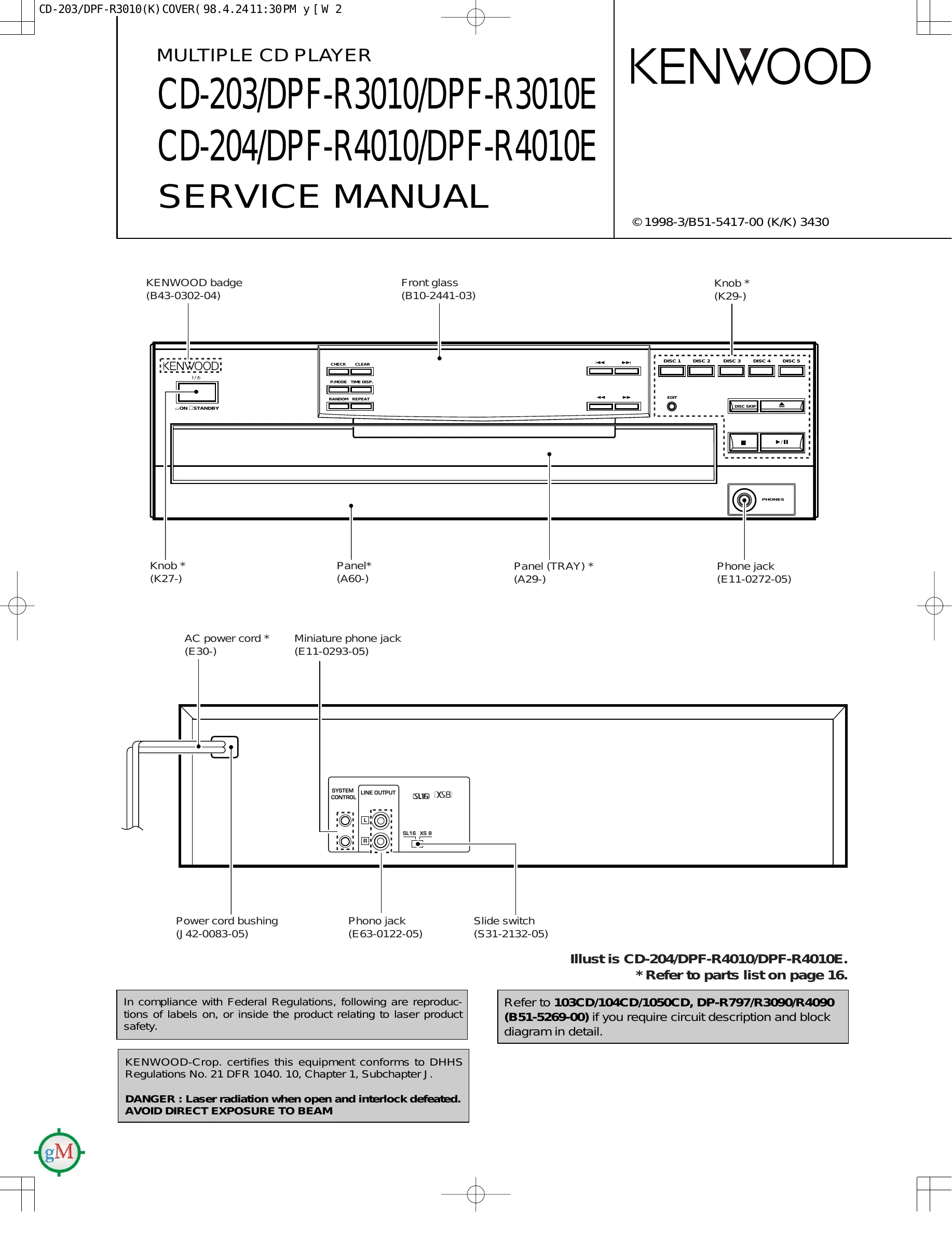

The manual provides detailed information for servicing the KENWOOD CD-203/DPF-R3010/R3010E/R4010/R4010E CD player. It includes a front panel layout, circuit description with pin assignments, test mode procedures, adjustment steps for laser power, tracking error balance, focus error balance, and tracking gain. It also features PC board component views, a comprehensive parts list with destination codes, and detailed specifications of the unit. Key sections cover safety precautions for laser exposure and general maintenance guidelines.

Troubleshooting and error codes

No. ITEM INPUT SETTINGS OUTPUT SETTINGS PLAYER SETTINGS ALIGNMENT POINTS ALIGN FOR FIG.
1 LASER POWER - Apply the sensor section of optical power meter on the pickup lens. While pressing the TIME DISP. key, turn the AC ON. (Test mode) Press the PLAY/PAUSE key, then confirm that the display is "03". - On the power from 0.08 to 0.15 mW, when the diffraction grating is correctly aligned with the RF level of 1.0 Vp-p or more.
2 TRACKING ERROR BALANCE Test disc Type 4 Connect an oscilloscope as follows. CH1 : RF (CN2 pin 1) CH2 : TE1 (CN2 pin 6) Press the PLAY/PAUSE key, then confirm that the display is "03". TE BALANCE VR2 Symmetry between upper and lower patterns
3 FOCUS ERROR BALANCE Test disc Type 4 Connect an oscilloscope as follows. CH1 : RF (CN2 pin 1) CH2 : TE1 (CN2 pin 6) Press the PLAY/PAUSE key, then confirm that the display is "05". FE BALANCE VR1 Optimum eye pattern
4 TRACKING GAIN Test disc Type 4 Connect a LPF to CN2 pin 5-6 to which you connect an oscilloscope or AC voltmeters. Press the PLAY/PAUSE key, then confirm that the display is "05". TRACKING GAIN VR3 Two VTVMs should read the same value.
