Parts/Service for RXD-A55/A75
Uploaded: Nov. 21, 2025, 8:01 p.m.
Manual Publish Date: 2001-04-01

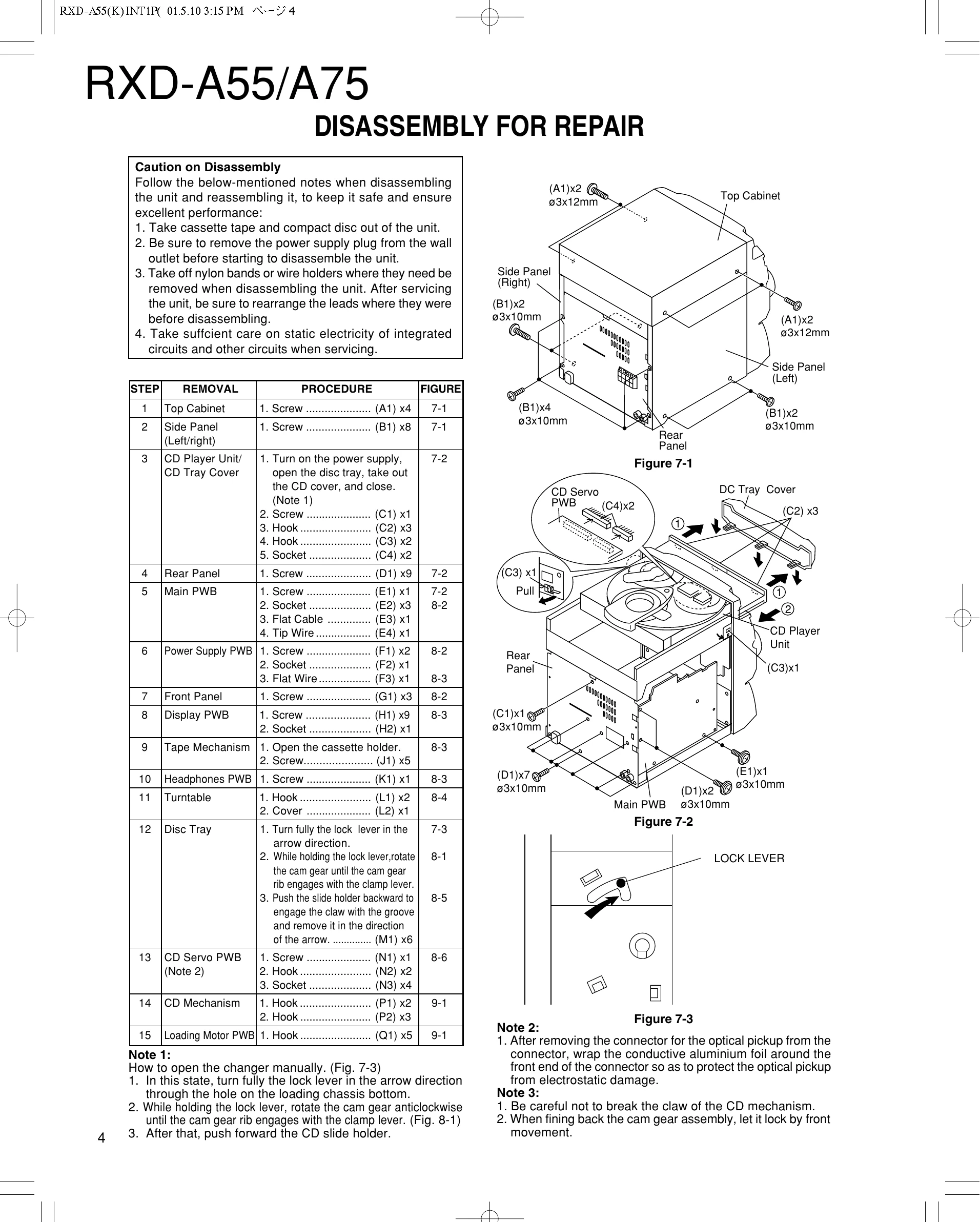

The manual provides detailed information on the RXD-A55/A75 MINI HiFi COMPONENT SYSTEM, including its external view, disassembly for repair, block diagrams, circuit descriptions, and adjustment procedures. It covers tape mechanism, CD mechanism, tuner, and power sections, with specific instructions for removing and reinstalling parts. The document also lists all components with their part numbers and descriptions, and includes specifications for both the XD-A55 and XD-A75 models. Test modes and error code descriptions are also detailed.
Troubleshooting and error codes
| Error | State Code | Description |
|---|---|---|
| [Servo System Error] | 0001 | Cannot detect Pickup-in SW |
| 0002 | DSP access error | |
| [Error during close operation] | 0101 | Open/Close SW not functioning (Low → High) |
| 0103 | Open/Close SW not functioning (High → Low) | |
| [Error during open operation] | 0201 | Open/Close SW not functioning (Low → High) |
| 0203 | Open/Close SW not functioning (High → Low) | |
| [Error during skip operation] | 0302 | Pickup-in SW is not detected |
| 0306 | During Disc 1 search, Open/Close SW or Clamp SW or Disc SW do not change to low. | |
| 0307 | Clamp SW not function (Low → High) | |
| 0308 | Clamp SW not function (High → Low) |
