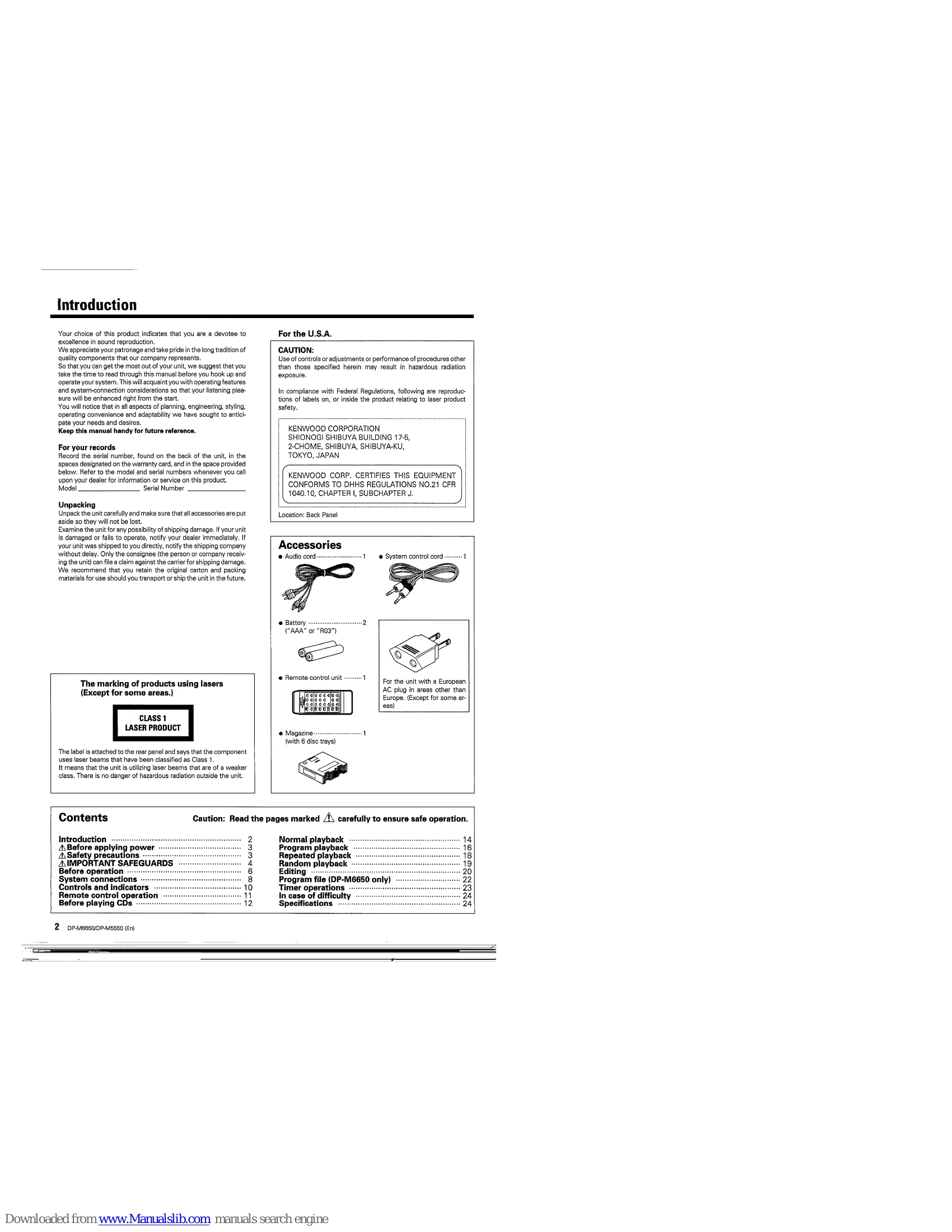

Manual for DP-M6650 / DP-M5550

Name: Manual for DP-M6650 / DP-M5550
Brand: KENWOOD
Availability: InStock

Brand: KENWOOD

Category: Audio System

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:51 p.m.

Warranty Information

Refer to the warranty card for warranty information.

Basic Operations

Normal Playback: Insert a disc into the magazine or plus-1 disc tray, select the desired disc using the disc selector keys, and press PLAY/PAUSE.

Program Playback: Enter PGM mode, select tracks and discs, then press PLAY/PAUSE. You can check, add, change, or clear programmed tracks.

Repeated Playback: Enter PGM mode or ensure it's off, then press REPEAT to play selected tracks or all tracks repeatedly.

Random Playback: Select the desired random mode (ONE for a single disc, ALL for all discs) and press PLAY/PAUSE. You can select another track during random play or cancel it.

Editing: Use EDIT-1 and EDIT-2 keys to select tunes that fit a specified tape length, dividing it into two files (A and B).

Program File (DP-M6650 only): Create, store, play, and erase exclusive program files for each magazine.

Timer Operations: Set up components with an audio timer for automatic playback at a desired time.

Troubleshooting and error codes

Symptom	Cause	Remedy
No power is applied with the POWER switch ON.	Power plug is loosely connected. With the power plug connected to the switched AC outlet of an amplifier, the power of the amplifier is turned off. Disc is loaded upside down. Disc is loose. Disc is dirty. Disc is cracked. Condensation occured on the optical lens unit.	Insert the power plug firmly into the AC outlet. Turn the amplifier's power ON. Load the disc again with its label side up. Insert the disc properly. Wipe off the dust on the surface of the disc referring to "Disc handling precautions". Replace the disc with a new one. Leave the player for about 1 hour so that the condensation is removed.
Disc is loaded, player does not play.	Disc is not loaded. Play mode is not entered (The play/pause indicator is not lit.) Disc is too dirty. Disc is cracked. The connection cords are inserted loosely.	Load a disc. Press the key. Wipe off the dust on the disc surface referring to "Disc handling precautions". Replace the disc with a new one. Connect all connection cords firmly.
No sound.	Disc is too dirty. Disc is cracked.	Wipe off the dust on the disc surface referring to "Disc handling precautions". Replace the disc with a new one.
Music is interrupted. (Sound is skipped.)	Oscillation is applied to this unit.	Try selecting a place where no strong vibrations occur by changing the installation place, etc.
Play begins as soon as the power is turned on.	This unit is designed so that play begins automatically when the power is turned on if a disc or a magazine is already loaded.	If automatic play is not required, remove the disc or the magazine from the player before turning the power OFF.
