Brand: JVC
Category: Camcorder
Document Type: Manual
Language: EN
Manual for GZ-R550
Uploaded: Aug. 10, 2025, 12:34 a.m.
Warranty Information
No specific warranty period is mentioned in the provided pages.
Getting Started

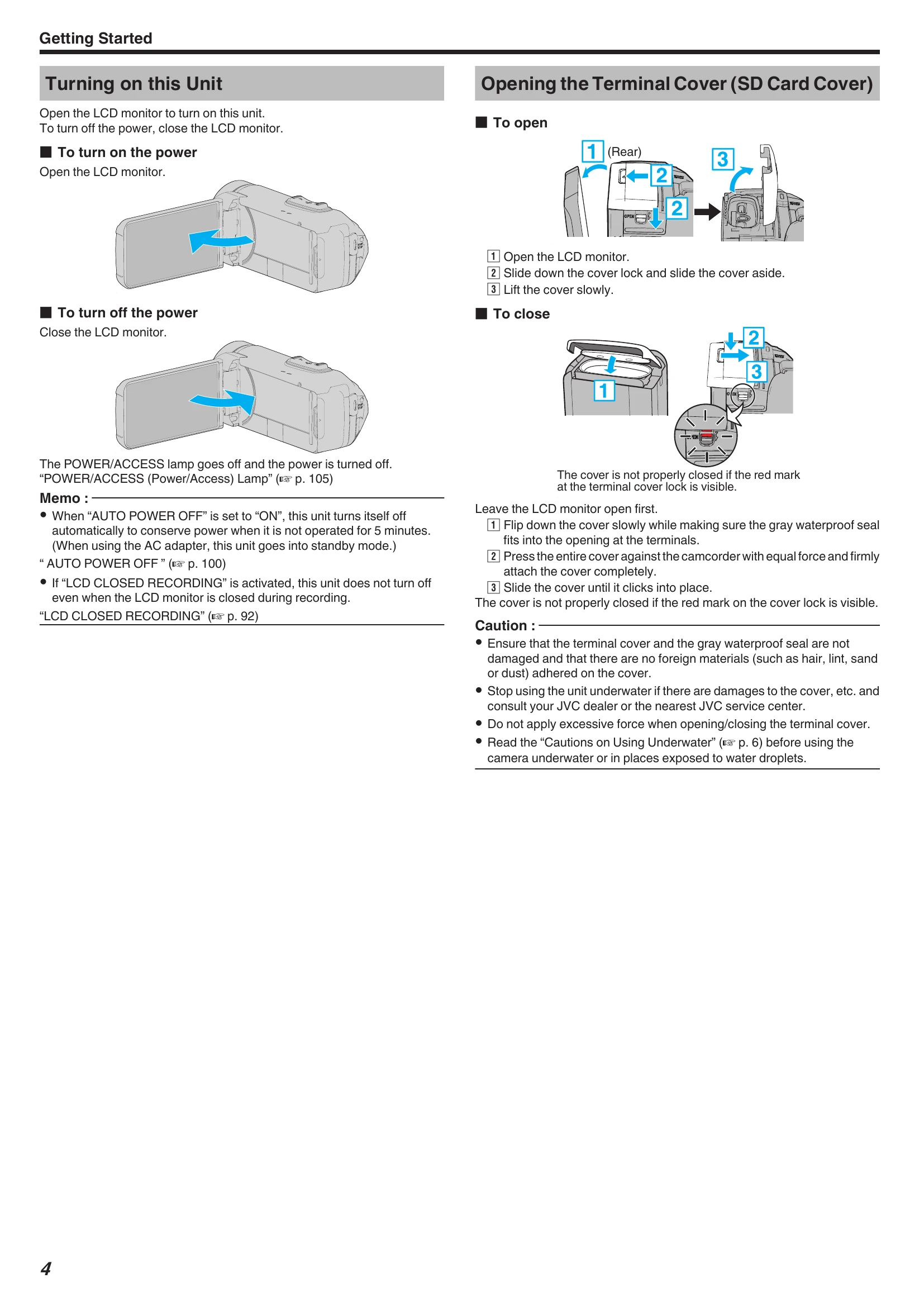

- Powering On/Off: Open the LCD monitor to turn on the unit. Close the LCD monitor to turn it off.
- Charging: Connect the AC adapter to the unit and an outlet. The CHARGE lamp indicates charging status.
- Inserting SD Card: Open the terminal cover, then insert the SD card. Ensure it is inserted correctly.
- Touch Screen Operation: Use your finger to tap or drag on the screen to operate the unit.
- Recording Videos: Open the LCD, ensure the correct mode (e.g., Intelligent Auto) is selected, and press the START/STOP button to begin and end recording.
- Playback: Use the playback mode button to access recorded content and playback controls.
Maintenance
- Wipe the unit with a dry, soft cloth. For stubborn dirt, use a damp cloth with neutral detergent and then a clean cloth.
- Avoid using solvents.
- Clean the lens and LCD monitor with a lens blower and cleaning cloth.
- After underwater use, rinse with clean water and dry thoroughly.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| Cannot insert the SD card | Insert the SD card in the correct direction. Do not use miniSD or microSD cards. |
| Unable to copy to SD card | Set REC MEDIA to SD card. Format the SD card if it's new or used on other devices. Release write protection switch. |
| Sound or video is interrupted | This is normal between scenes. If there's no sound, check Silent Mode and Operation Sound settings. |
| The same image is displayed for a long time | Use a high-speed SD card (Class 4 or higher), clean terminals, or format the SD card. |
| The motion is choppy | Use a high-speed SD card (Class 4 or higher), clean terminals, or format the SD card. Verify PC system requirements for playback. |
| Cannot find a recorded file | Check playback media, select "PLAYBACK OTHER FILE". |
| Images do not appear on the TV properly | Reconnect cables. Reset the unit. Set VIDEO OUTPUT to 4:3 or 16:9 as needed. |
| The buttons on the touch screen do not work | Tap with fingers, not nails or gloves. Disable "SCREEN LOCK". Save data and connect to PC if issue persists. |
| The image is grainy | Digital zoom can cause graininess. |
| This unit heats up | This is normal; the unit may become warm. Stop use if it gets too warm. |
| The language on the display changed | May occur when connecting to TV via HDMI with different language settings. |
| HDMI-CEC functions do not work properly | Set "HDMI CONTROL" to "OFF". |
| Unit operates slowly | Copy files to computer and erase from unit, especially if many files are present. |
| Unit does not function properly and error messages appear | Reset the unit. Check for electrostatic discharge, noise, or interference. |
| CHARGE/POWER/ACCESS lamps blinking | Reset the unit. |
