Warranty Information

Refer to the manufacturer for specific warranty details.

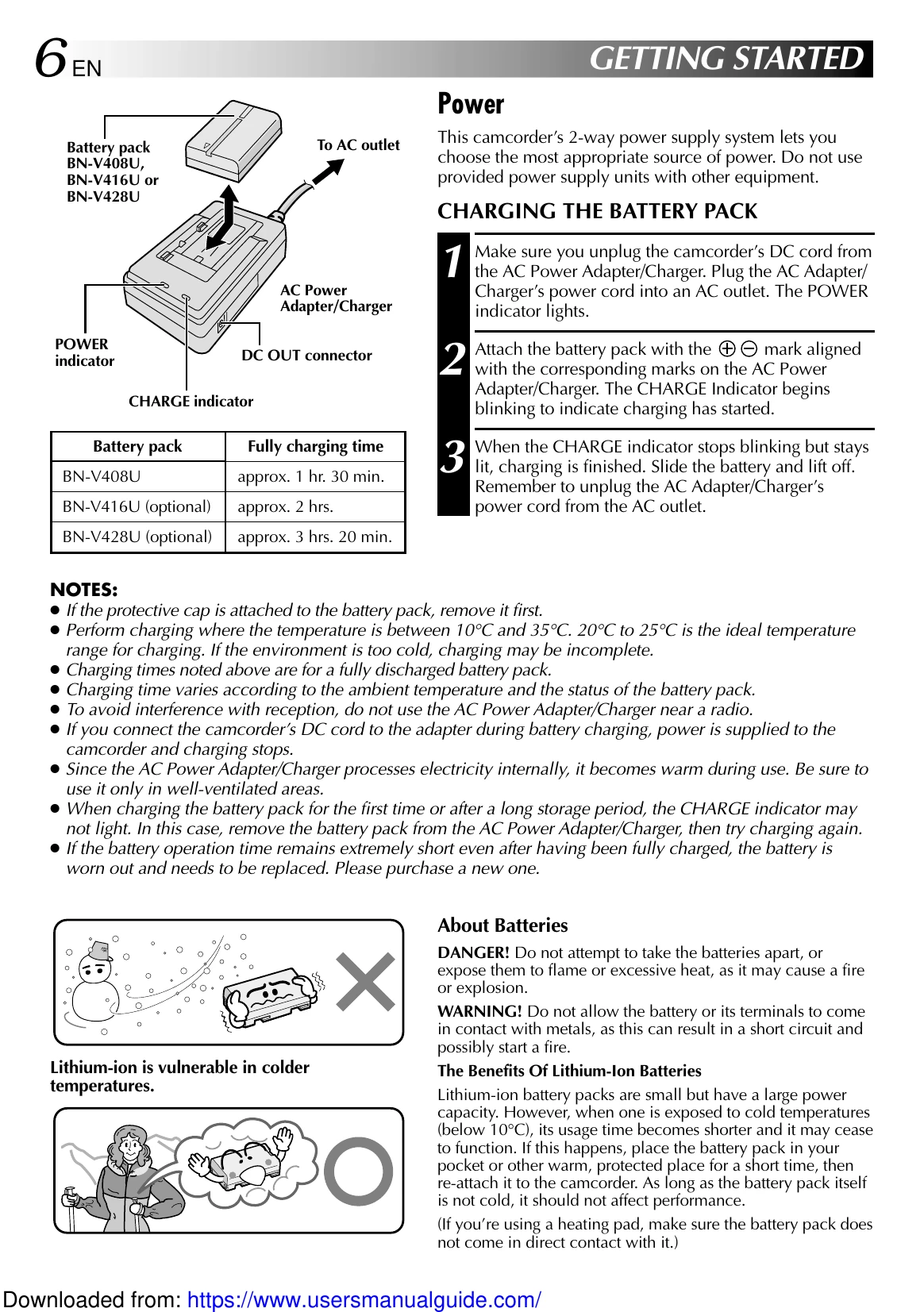

Power: Use the AC Power Adapter/Charger or battery pack for power. Charge the battery pack by connecting it to the AC adapter.

Attaching Battery: Tilt viewfinder up, align battery, push and slide down until it locks.

Using AC Power: Connect AC adapter to camcorder and AC outlet.

Grip/Viewfinder Adjustment: Adjust grip for comfort and viewfinder focus using the dioptre control.

Date/Time Settings: Set the date and time via the menu system.

Loading/Unloading Cassette: Open the cassette holder, insert/remove tape, and close the holder.

Recording Mode: Select SP (Standard Play) or LP (Long Play) via the menu.

Lens Cap: Remove the tabs.

Power Switch: Set to 'A' (Full Auto) or 'M' (Manual).

Shooting: Use LCD monitor or viewfinder. Press RECORD/START/STOP to begin/end recording.

Snapshot Mode: Record still images.

Zooming: Use the Power Zoom Lever to zoom in or out.

Video Light: Use to brighten scenes in low light.

TROUBLESHOOTING
Problem	Possible Cause and Solution
No picture during playback.	Dirty heads. Use cleaning cassette.
Blocks of noise appear during playback.	Dirty heads. Use cleaning cassette.
During recording, the Head Clog Warning indicator "�" appears.	Dirty heads. Use cleaning cassette.
Remote control is not functioning.	Batteries are exhausted. Replace with fresh AAA batteries.
LCD monitor is difficult to see in direct sunlight.	Use the viewfinder instead.
Cassette holder will not open.	Power supply is not attached. Attach battery or AC adapter. Delay after opening cover. Wait for it to open automatically.
Cannot close cassette holder cover.	Battery charge is low. Replace with a fully charged battery.
Tape does not load properly.	Open cassette holder fully, remove cassette, wait, then re-insert. Camcorder moved from cold to warm place. Wait before opening cover.
Serious malfunctioning occurs.	Stop using the unit immediately and consult your local JVC dealer.
